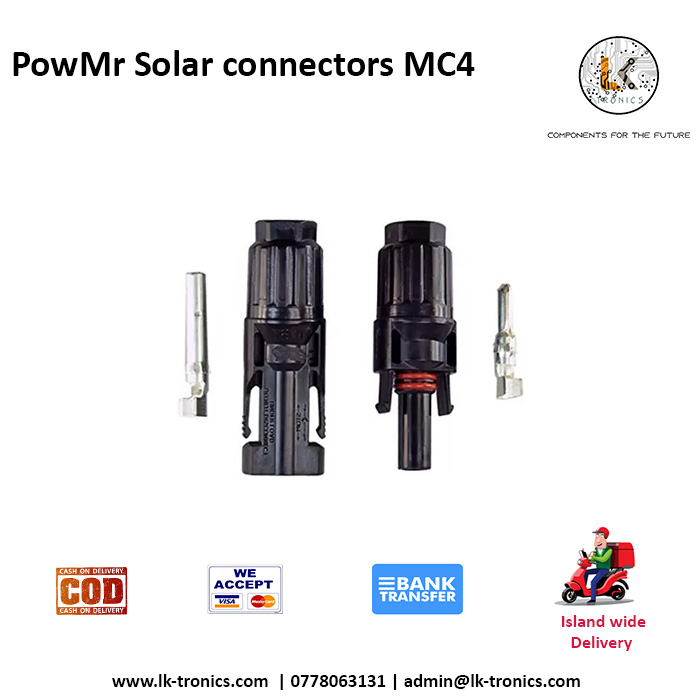

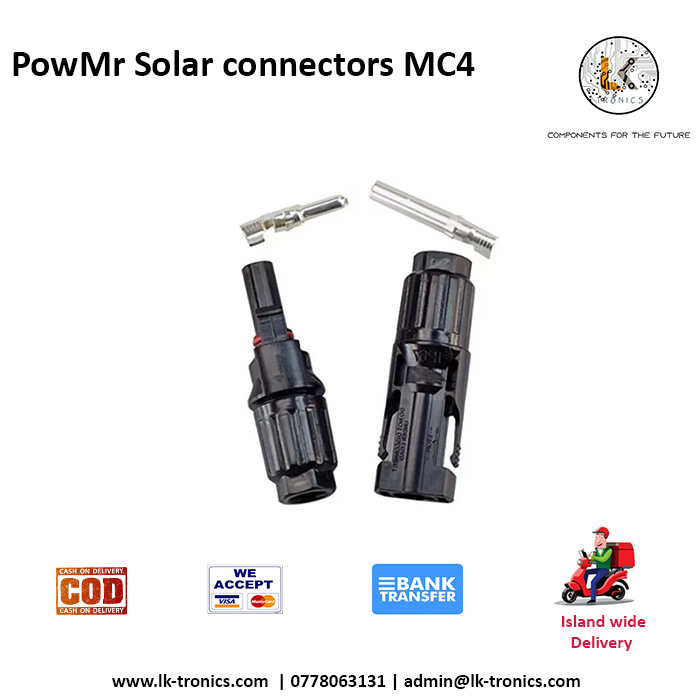

PowMr Solar connectors MC4 Male/Female IP67 Solar Connectors

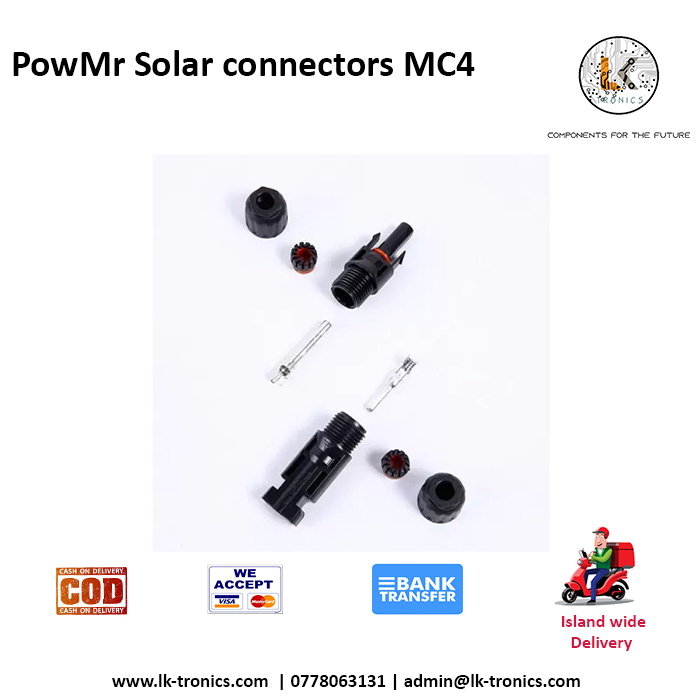

PowMr Solar connectors MC4 Male/Female IP67 Solar ConnectorsOverview:❶PowMr Solar connectors MC4 Solar Connector Conductor pin is tinned Copper: made of PPO PA material, It makes a rock-solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load. WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance can resist severe weather such as heavy rain, snowstorm, or heat for a long time.❷UL certification Solar Connectors Rated voltage – TUV 1000V DC / UL 600V DC; Rated Current:30A; These solar connectors Hard plastic IP67 Waterproof and resist dust build-up.❸These solar connectors are designed to complete a solar panel (PV) array, typically in parallel applications❹UL certification fastness of male and female points with a stable self-locking system that is easy to lock and open. anti-aging and resistance to ultraviolet radiation.Features:Quick & simple assembly processing and simple removal of plugsCompatible with different insulation diametersDouble seal ring, better waterproofConnection by the crimping toolInsulation Material: Made of PPO PA material.Required Tools: < 1.Wire Stripping pliers > < 2. Line pressing pliers > < 3.Special wrench >Specifications:Maximum working voltage: DC 1000 VRated Current: 30ASuitable for: 2.5mm²( AWG14 ), 4mm²( AWG12 ), 6mm²( AWG10 )Contact resistance: ≤1mmΩPollution degree: 2Temperature Range: -40 ℃ ~ 85 ℃Flame class: UL94-V0Waterproof Class: IP67Insertion force: ≤50NWithdrawal force: ≥50NPackage include :1 x  PowMr Solar connectors MC4 VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOPhttps://lk-tronics.com/wp-content/uploads/2023/04/LKSOL00060_MC4-Edited.mp4 SKU: LKSOL00060 Category: Solar Accesories Tags: PowMr, POWMR Srilanka, Srilanka Distribution agent.
