Asus H81 Motherboard – H81M-K Computer Motherboard

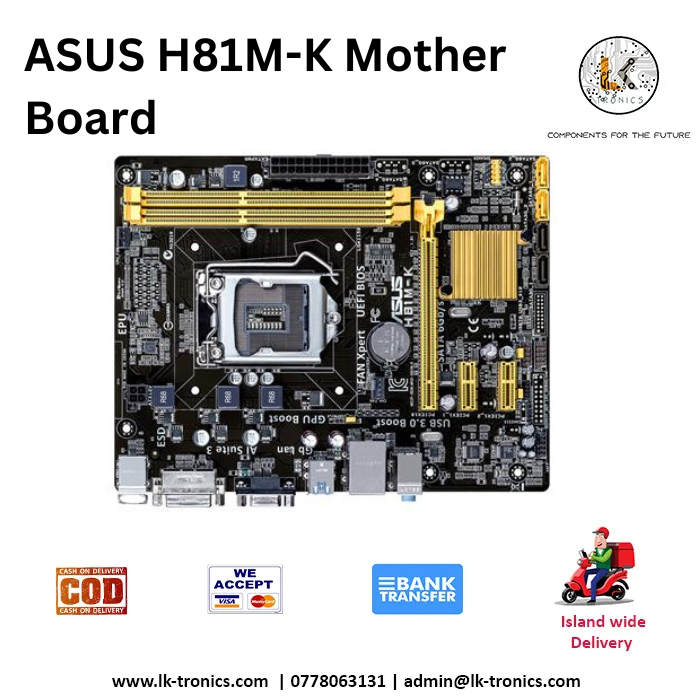

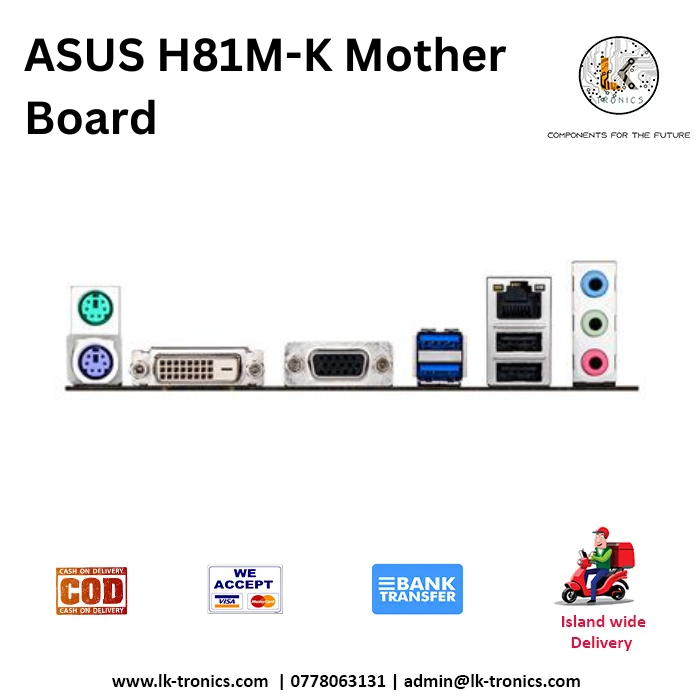

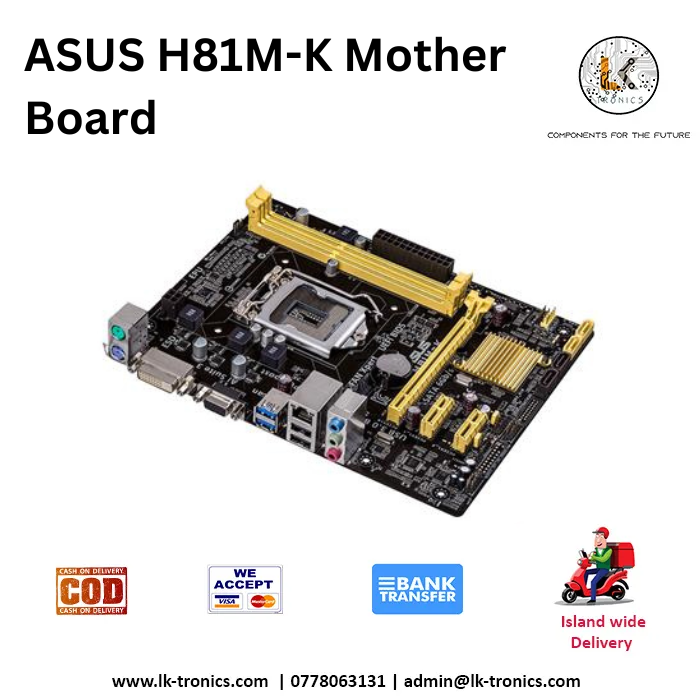

Asus H81 Motherboard – H81M-KThis Asus H81 Motherboard supports Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory and 16 PCI Express lanes.1 Year WarrantyModel: H81M-KCPU: Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU type.Chipset: Intel® H81Memory: 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 MHz.Graphic: Integrated Graphics Processor Multi-VGA output support: DVI/RGB ports – Supports DVI with max. resolution 1920  x 1200  @ 60 Hz – Supports RGB with max. resolution 1920  x 1200  @ 60  Hz The maximum shared memory of 1024  MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™Expansion Slots1 x PCIe x16 2 x PCIe 2.0 x1StorageIntel® H81 chipset : 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, Supports Intel® Rapid Start Technology, Intel® Smart Connect TechnologyLANRealtek® 8111G, 1 x Gigabit LAN Controller(s)AudioRealtek ALC887/897 8-Channel High Definition Audio CODEC *2 – Supports: Front Panel Jack-retasking, up to 24-bit/192kHz playbackUSB PortsIntel® H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel® H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)Special FeaturesASUS EPU : – EPUExclusive Features:– GPU Boost– AI Suite 3– Ai Charger– Anti-Surge– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface– Network iControl– USB 3.0 Boost– Disk UnlockerQuiet Thermal Solution :– Stylish Fanless Design Heat-sink solution– ASUS Fan Xpert EZ DIY:– ASUS CrashFree BIOS 3– ASUS EZ Flash 2Q-Design:– ASUS Q-SlotBack I/O Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI1 x D-Sub1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 1 (blue)2 x USB 2.03 x Audio jack(s)Internal I/O Ports1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x SATA 6Gb/s connector(s)2 x SATA 3Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel connector(s)1 x Front panel audio connector(s) (AAFP)1 x Internal speaker connector(s)1 x Clear CMOS jumper(s)AccessoriesUser´s manualI/O Shield2 x SATA 6Gb/s cable(s)BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory informationManageabilityWfM 2.0, DMI 2.0, WOL by PME, PXESupport DiscDriversASUS UtilitiesEZ UpdateAnti-Virus Software (OEM Version)Form FactoruATX Form Factor8.9  inch x 6.9  inch ( 22.6  cm x 17.5  cm )Note*1-1:Due to the limitation of the Intel® H81chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.*1-2:These functions will work depending on the CPU installed.*2 Use a chassis with an HD audio module in the front panel to support an 8-channel audio output.VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKCOMP00003 Category: Computer Accessories
