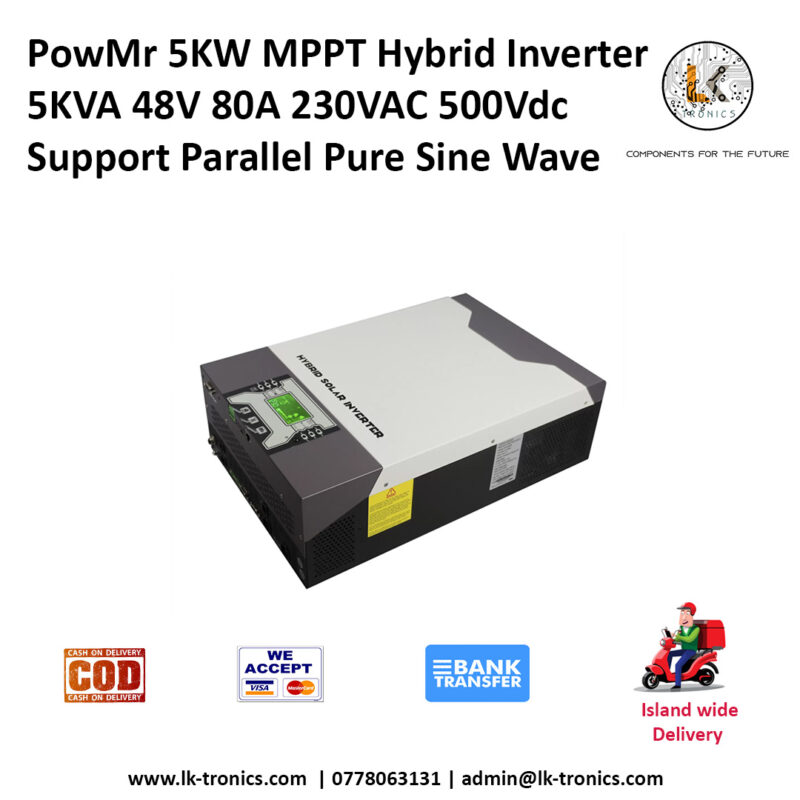

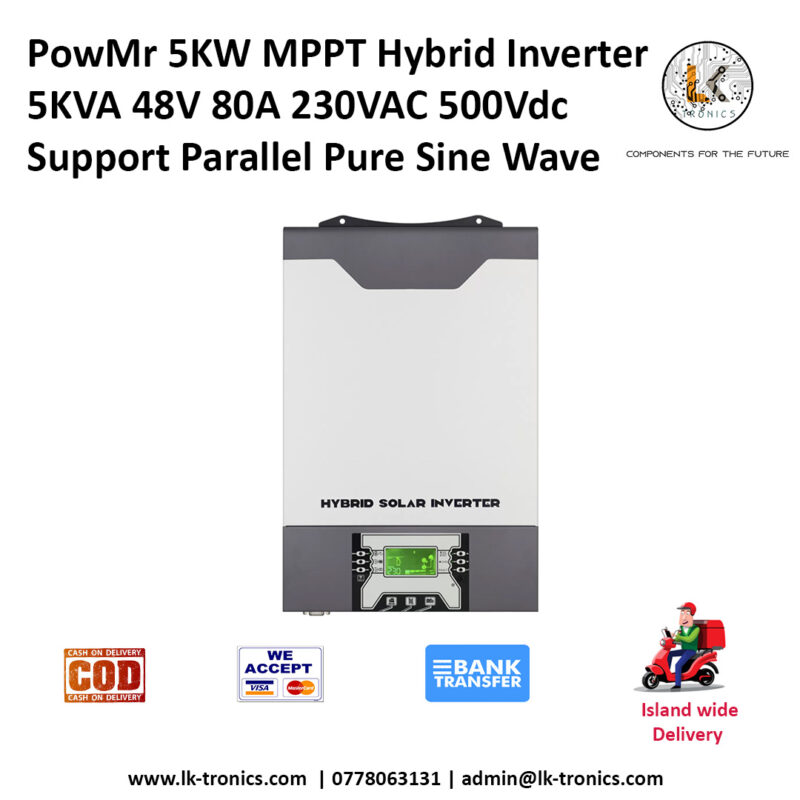

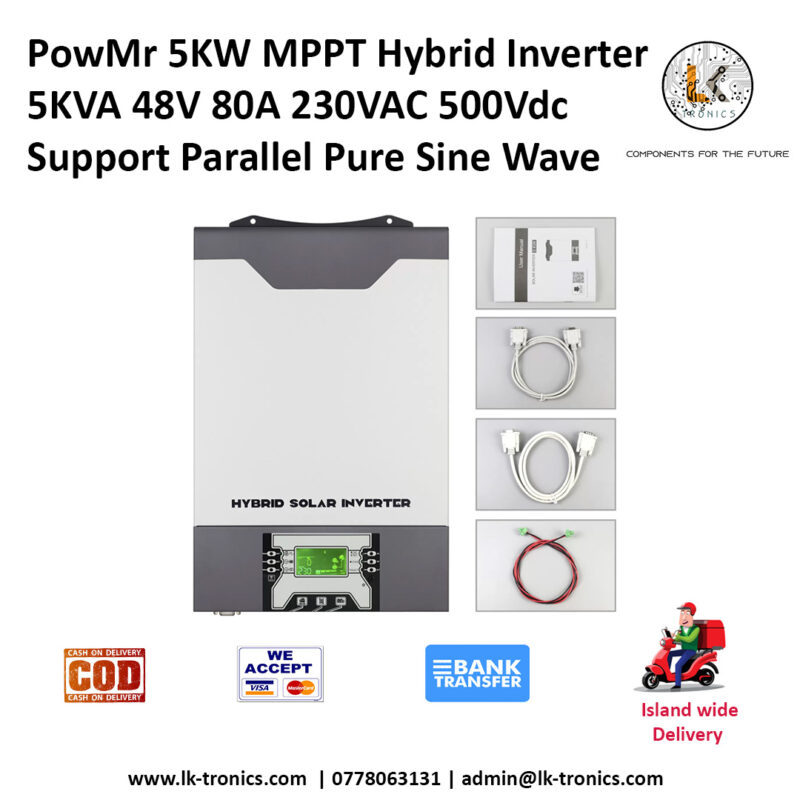

PowMr 5KW MPPT Hybrid Inverter 5KVA 48V 80A 230VAC 500Vdc Support Parallel Pure Sine Wave Hybrid Solar Inverter With Battery Charger

PowMr 5KW MPPT Hybrid Inverter 5KVA 48V 80A 230VAC 500Vdc Support Parallel Pure Sine Wave Hybrid Solar Inverter With Battery Charger Overview:This hybrid PV inverter can provide power to connected loads by utilizing PV power, utility power and battery power. Depending on different power situations, this hybrid inverter is designed to generate continuous power from PV solar modules (solar panels), batteries, and the utility. Galvanic isolation was designed between DC and AC output so that the user could connect any type of PV array to this Hybrid inverter. See Figure 1 for a simple diagram of a typical solar system with this hybrid inverter.One detection device needs to be connected between the PV and PV-& the ground, to ensure leakage current between PV and PV-& the ground is less than 30mA. Isolation transformer Specs.: 10KW-220:220V 60*100 single-phase Isolation transformer.Quick DetailsBrand Name: powerModel Number: POW-HVM5.0M-48V POW-HVM5.0M-48V-PInput Voltage:48VDCOutput Voltage:220-240VACOutput Current:80AOutput Frequency:50/60HzOutput Type: SingleSize:140*298*468mmType: DC/AC InvertersInverter Efficiency:>95�rtificate: CEWarranty:2 yearsWeight:12kgApplication: Solar Power SystemSystem voltage:48VParallel Capability: Yes, up to 9 unitsFeature: Can achieve 3-phase outputPV Array MPPT Voltage Range:120Vdc-430VdcMax. PV Array Open Circuit Voltage:450VdcMax. Input Current:18AFeatures:Max. can be 9 pcs in parallel with an optional kitEfficiently work with or without batteryBuilt-in Wifi for mobile monitoring(Requires APP)Built-in Wifi for mobile monitoring(Requires APP)Compatible with (Li-ion, LiFePo4 and etc.)batteries  Battery EqualizationCan Work Without BatteryNote:How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise, it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.  SpecificationModelPOW-HVM5.0M-48V/ POW-HVM5.0M-48V-PRated Power5000VA/5000WINPUTVoltage230VACVoltage Range176-280 VAC at 100% loadVoltage Range110-280 VAC at 50% loadFrequency Range50Hz/60Hz(Auto-sensing)OUTPUTAC Voltage Regulation(Batt.Mode)230VAC±3%Surge Power10400VA for 5 secEfficiency(Peak)>95% ( Rated R load, battery full chargedTransfer Time10ms typical (UPS)Transfer Time20ms typical (Appliances)WaveformPure sine waveBATTERYBattery Voltage48 VDCFloating Charge Voltage54 VDCOvercharge Protection64 VDCSOLAR CHARGER & AC CHARGERSolar Charger TypeMPPTMaximum PV Array Open Circuit Voltage500VDCMaximum PV Array Power5000WMPP Range@ Operating Voltage120-450VDCMaxmum Solar Charge Current80AMaximum AC Charge Current60APHYSICALProducts Dimension,D X W X H(mm)456*303*147Product Net Weight(kgs)12Packing Dimension,D X W X H (mm)530*377*217,1PC/CTNProduct Net Weight(kgs)13.5Communication InterfaceRemovable OTG USB/RS232/RS458/BLE/Dry-contactOPERATING ENVIRONMENTHumidity5% to 95% Relative Humidity(Non-condensing)Operating Temperature-10℃to 50℃Storage Temperature-15℃to 60℃ Packaging IncludeSelling Units: Single itempackage size: 57X40X25 cmSingle gross weight:13.200 kg SKU: LKSOL00010 Category: Offgrid Inverters Tags: PowMr 5KW MPPT Hybrid Inverter, POWMR Srilanka, Pre order, Srilanka Distribution agent.
