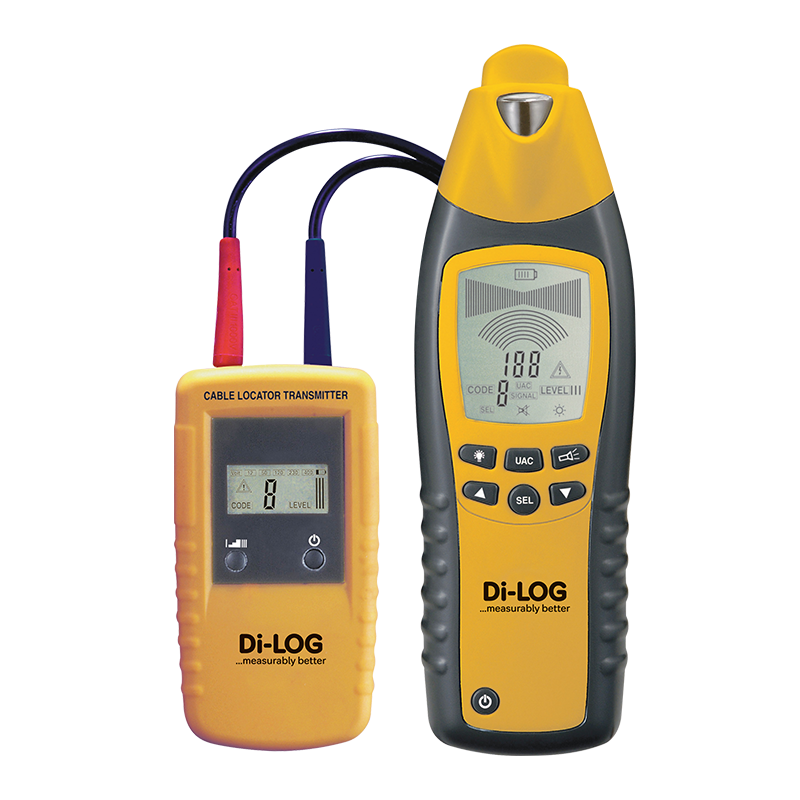

DL2080 -Cable Locator Set Cable Locator Set Home > Products > Cable Locators > DL2080 -Cable Locator Set DL2080 -Cable Locator Set DL2080 – Cable Locator Set Introducing the DL2080, a professional-grade cable locator: This versatile device is designed to cater to a wide range of applications. It excels at efficiently tracing cables in walls and underground, locating fuses/breakers on final circuits, and identifying interruptions and short-circuits in cables and electrical floor heating systems. Additionally, it can be used for accurately tracing metallic water and heating pipes. The cable locator kit includes a purpose-made carry case containing both a transmitter and a receiver. The receiver is equipped with a torch function, making it ideal for working in dimly lit areas. With this all-in-one solution, no additional instruments are required for various applications, whether dealing with live or dead cables. The transmitter features an LCD display for transmitting level, transmitting code, and external voltage information. The receiver, on the other hand, is equipped with a backlit LCD display, providing details about the level of receiving signal, code of receiving signal, and live voltage indication. The device offers the flexibility of automatic or manual adjustment of receiving signal sensitivity, and the acoustical receiving signal can be switched on or off as needed. It also includes an Auto Power Off feature for power-saving purposes. Additionally, the cable locator features an extra torch lamp function, ensuring optimal visibility in dark environments. For scenarios that require distinguishing between multiple signals, additional transmitters are available for easy extension. The DL2080 is a versatile tool designed for various cable tracing needs: Tracing underground cables down to a depth of 2.5 meters. Transmitter equipped with a digitally coded signal for precise and clear signal identification. Receiver featuring an LCD display for signal code and strength identification, as well as voltage indication. Automatic or manual adjustment of receiving signal sensitivity for optimal performance. Ability to operate on both live and dead cables, providing flexibility in different scenarios. Di-LOG is a part of the Di-LOG group, for more information click the link to view our group divisions. Specifications Voltage range12, 50, 120, 230 & 400 V Frequency range0 – 60Hz Output signal125 Hz Tracing depth0 – 2.5 m wall / underground Operating temperatureTransmitter: 0 to 40 °C, Receiver: 0 to 40 °C Storage temperatureTransmitter: -20 °C to 60 °C, Receiver: -20 °C to 60 °C Mains voltage detection0 – 0.4 m SafetyEN 61010-1 Over voltage categoryCAT III 300 V Humiditywithout condensation: Transmitter: Max. 80% relative, Receiver: Max. 80% relative Operating Altitude: Transmitter up to 2000m, Receiver up to 2000m Power supply9 V and 2 x AAA batteries Dimensions192 x 61 x 37 mm Weight229 g Downloads Product Manual Spec Sheet Trade Price: £455.00 all prices exclude VAT Related Products DL1093 DL1097 - 4-in-1 Wall Scanner
