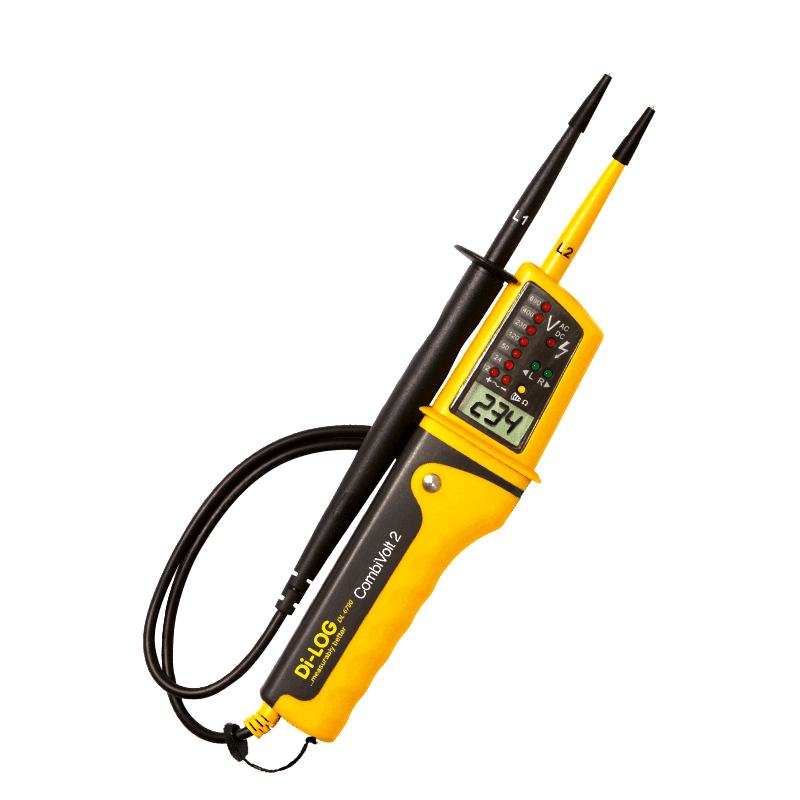

DL6790 CombiVolt 2 Voltage Indicator CombiVolt™ 2 Voltage and Continuity Tester Home > Products > Voltage & Continuity Testers > DL6790 CombiVolt 2 Voltage Indicator DL6790 CombiVolt 2 Voltage Indicator Voltage & Continuity Testers The Di-log CombiVolt 2 Digital Voltage & Continuity Tester with Phase Rotation test is the bench mark for voltage indicators. The three-in-one tester with a rugged, ergonomically formed housing for perfect handling is fully conformant to BS EN 64213-3:2014. The DL6790 also offers Single Phase Detection Features: Testing of AC/ DC voltages from 12 to 690 V AC/DC Continuity testing with optical and acoustic indication Automatic switching between voltage and continuity Phase rotation test system Single pole phase indication Fully compliant with GS38 Fully operational voltage indication even when batteries are discharged DL6790 with digital indication of voltage Will not trip any RCD when testing across Live and Earth Single pole detection when L2 probe connected above 100V Our latest promotion allows you to get a free CombiVolt when you register an ALVA device with us – Click here or the banner above to find out more. Specifications Voltage display12 – 690 V AC/DC LED resolution12, 24 , 50, 120, 230, 400, 690 LCD resolution1 V /- 3 % 8 digits Voltage detectionAutomatic Acoustic signalAC voltage – DC voltage Polarity detectionFull range Response timeLED Frequency range0 – 400 Hz Peak currentIs Operation time30s Recovery time10 min Auto power on Single pole voltage indication Voltage range100 – 690 V AC Frequency range50 – 400 Hz Continuity Measuring range0 – 400 KΩ Phase rotation test Voltage range100 – 690 V Frequency45 – 65 Hz Over voltage protection690 V AC/DC g Safety StandardsCAT IV 600V IEC 60529 (IP65), 61243-3 EN61010-1:2010, EN61010-2-033:2010, EN61010-031:2002 A1:2008, IEC 61243-3:2009, EN61243-3:2010, EN61243-3:2014 & EN61326-1 Power supply2 x 1.5 V LR03 batteries Dimensions255 x 70 x 28 mm Weight200 g Downloads DL6790 Instruction Manual DL6790 Specification Sheet Trade Price: £100.00 all prices exclude VAT Related Products DL6770 DL6780 CombiVolt 1 Voltage Indicator EKB001 Kit DL6799 CombiVolt 5 CP1190
