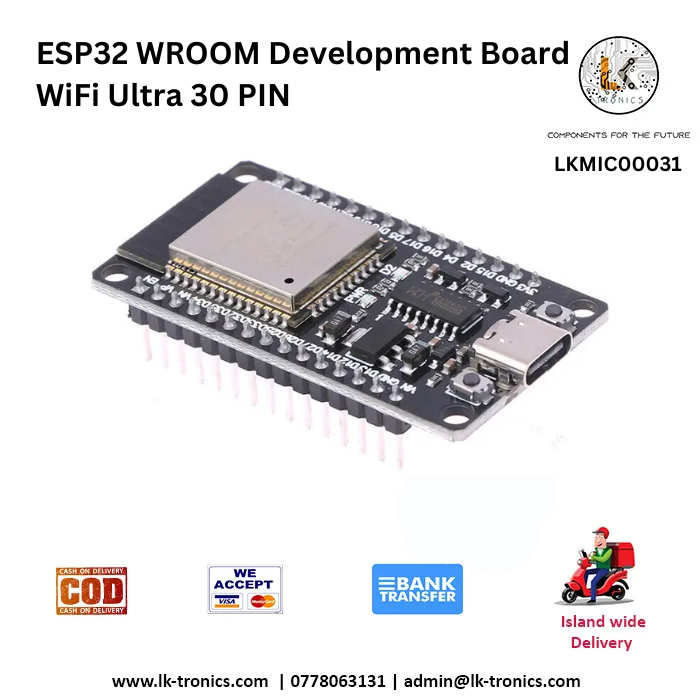

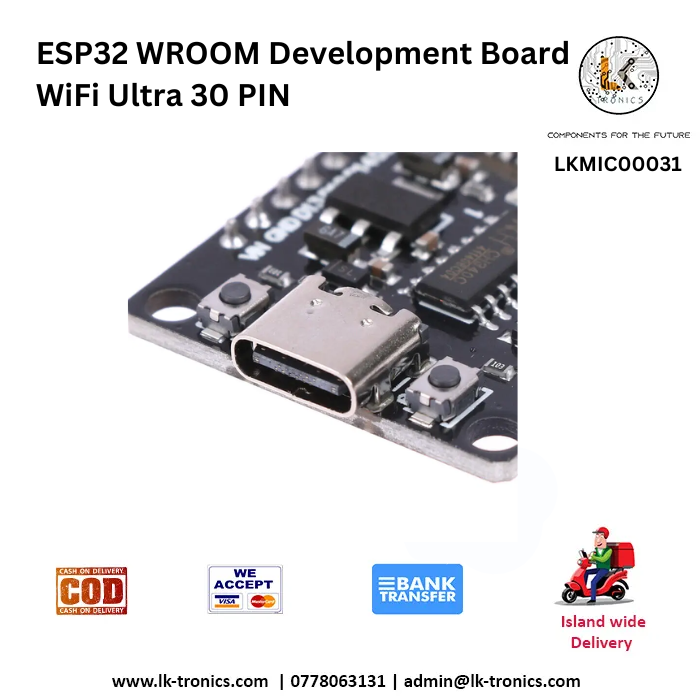

ESP32 WROOM Development Board WiFi Ultra-Low Power 30 PINDescription:1. The main body of the module is the ESP-WROOM-32 module, and the peripheral uses the USB serial port chip CP2102 to expand the Type C interface, which can be directly debugged by a USB-connected computer, and the data transmission is fast and stable. 2. It has a power indicator (red light) and a working status indicator (blue light) on it, so you can know the status of the module at any time. 3. There are two touch buttons, one is reset, and the other is to enable the module to enter the halberd program mode. In addition, the pins on both sides of the development board are convenient for developers to connect and use. 4. The module has powerful Bluetooth-compatible and WiFi functions. As a Bluetooth-compatible and WiFi development board, it can obtain rich resources from Lexin and Anxinco official websites. 5. In addition, the module supports NodeMCU and other development environments, which expands the range of its resources available and greatly improves the ease of learning and development. Of course, it can also be widely used in Internet of Things occasions, such as home automation, wireless industrial control, wireless positioning system signals, etc.Specification:SPIFlash: default 32MbitProgram Port: Type – CBluetooth: Bluetooth-compatible 4.2 BR/EDR and BLE standardsSupporting interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DACOn-chip sensors: Hall sensor, temperature sensor, capacitive touch sensorIO port: 22pcsSerial port rate: 115200 BPS by defaultSpectrum range: 2412 ~ 2484MHzAntenna form: PCB antenna on board, gain 2dBiTransmitting power: 802.11b: 17 ± 2dbm (11Mbps) 802.11g: 14 2dbm (54Mbps) 802.11n: 13 ± 2dbm (MCS7)Receiving sensitivity: CCK, 1Mbps: – 90dbm CCK, 11Mbps: – 85dBm 6Mbps (1 / 2bpsk): – 88dbm 54Mbps (3 / 464-qam): – 70dBm mcs7 (65mbps, 72.2mbps): – 67dbmPower consumption: 300mA 3.3VSecurity: WPA / WPA2 / WPA2 Enterprise / WPSPower supply range: USB power supply: 5V pin power supply: 5.0V~12VWorking temperature: – 20 ~ 85 ℃Storage environment: – 40 ~ 90℃, < 90% RHProduct size: 52 * 29 * 15mm/2.04*1.14*0.59”Feature:The module is the ESP- WROOM-32 development board, and the ESP32 WROOM32 parameter characteristic is also the parameter characteristic of the module.802.11b/g/WiFi BT module.power dual core 32-bit CPU, which can be used as an application processor. The main frequency is up to 240MHz, and the operation capacity is up to 600DMIPS.Support UART / SPI / I2C / PWM / DAC / ADC and other interfaces.Support open OCD debugging interface.It supports multiple sleep modes, and the current reaches 6.5ua in deep sleep.Embedded LwIP and FreeRTOS.Support STA/AP/STA AP mode.Support Smart Config / Airkiss one key distribution network.General at command, easy to use. Support local serial port upgrade and remote upgrade (FOTA).Note: Please allow 1-3mm differences due to manual measurement. Due to the different displays and different lights, the picture may not show the actual color of the item. Thanks for your understanding.VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMIC00031 Category: Microcontrollers Tag: ESP32
