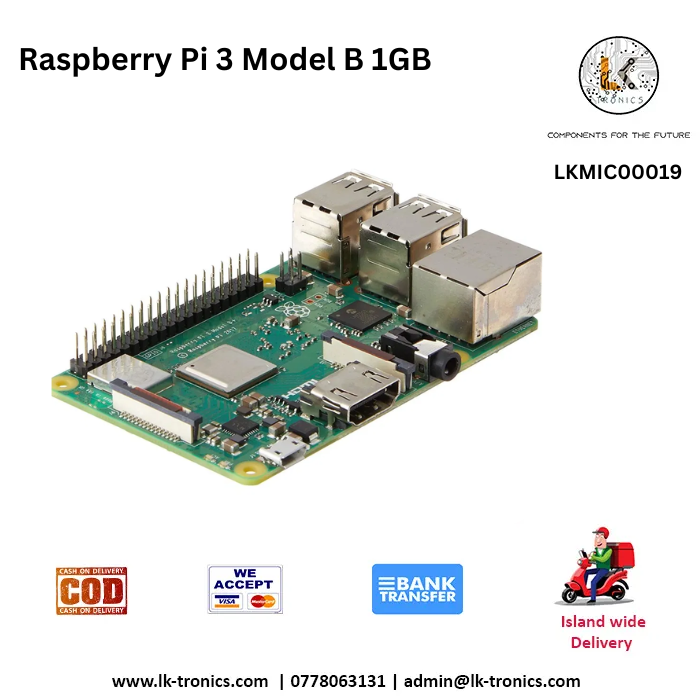

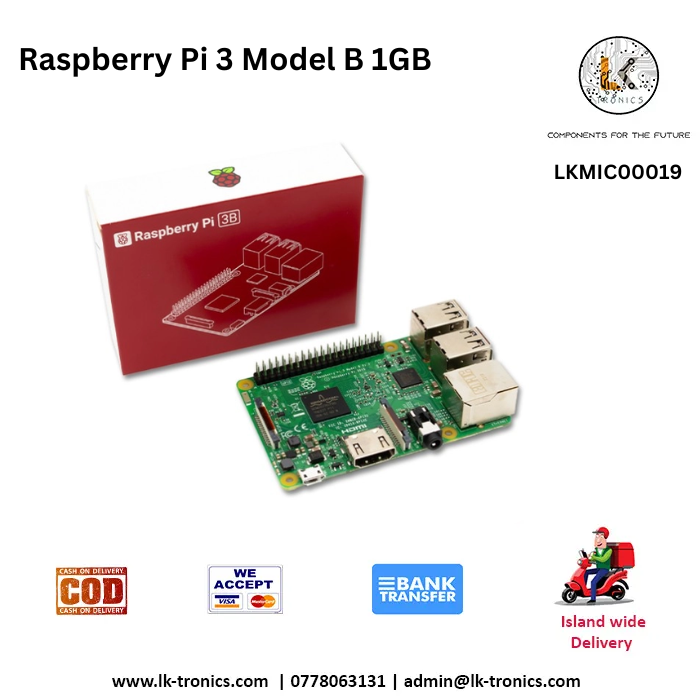

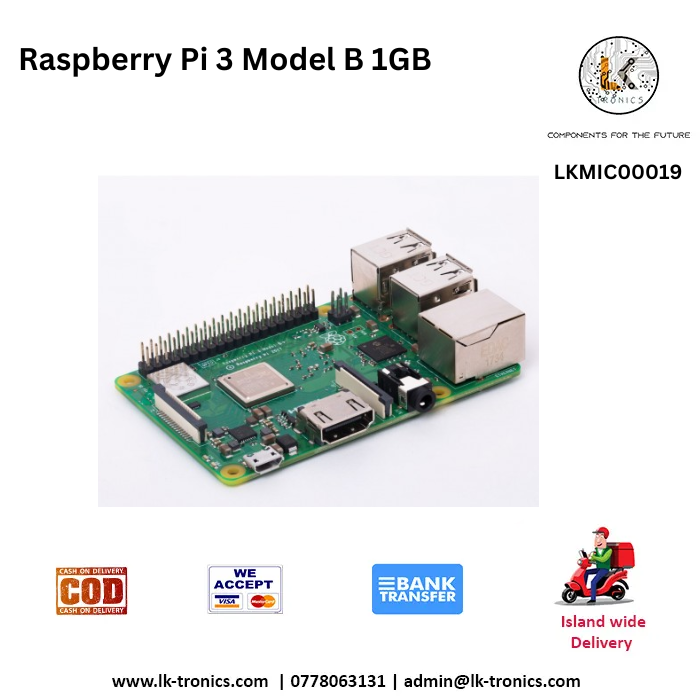

Raspberry Pi 3 Model B (1GB) Detailed SpecificationsProcessor (SoC):Broadcom BCM2837 ARM Cortex-A53Architecture: 64-bit quad-coreClock Speed: 1.2 GHzInstruction Set: ARMv8-AMemory (RAM):1GB LPDDR2 SDRAMGraphics Processing Unit (GPU):Broadcom VideoCore IVSupport for OpenGL ES 2.0 and OpenVGH.264 decode (1080p30) and encode (1080p30)Graphics Core Frequency: 400 MHzNetworking:Ethernet: 10/100 Mbps (Fast Ethernet)Wi-Fi: 802.11n (2.4 GHz, onboard Wi-Fi)Bluetooth: Bluetooth 4.1 (Bluetooth Low Energy – BLE)USB Ports:4 x USB 2.0 Ports (with a maximum combined throughput of 480 Mbps)Storage:MicroSD Slot for booting and storage (supports SDHC and SDXC cards)Power:5V/2.5A via Micro USB (recommended power supply)GPIO: 5V and 3.3V pins on the GPIO header can supply small amounts of power to peripherals.Video Output:HDMI: Full-size HDMI portSupports 1080p outputComposite Video: Via 3.5mm TRRS jack (shared with audio)Supports both analog audio and composite video outputDisplay Interface (DSI): 15-pin flat flex connector for Raspberry Pi touchscreen displayAudio Output:3.5mm TRRS jack for stereo audioHDMI digital audio outputCamera Interface:CSI: 15-pin flat flex connector for Raspberry Pi camera moduleGeneral Purpose Input/Output (GPIO):40-pin GPIO header (with UART, SPI, I²C, and PWM support)Pin Layout:2x 5V power pins2x 3.3V power pins8x ground pins26 GPIO pins for general use (includes UART, I²C, SPI, etc.)Other Connectivity:UART: 1x UARTSPI: 2x SPII²C: 1x I²C busPWM: Available via GPIO pinsPhysical Dimensions:Dimensions: 85.6mm x 56.5mm x 17mm (L x W x H)Weight: 45g (approx.)Operating System:Official OS: Raspberry Pi OS (formerly Raspbian)It supports other OSes, such as Ubuntu, Windows 10 IoT Core, LibreELEC, OSMC, etc.Power Consumption:Typical power consumption: 2.5W to 5W depending on use (without peripherals)Additional Features:LED indicators: Power, Activity, Ethernet (Link and Activity)Heat dissipation: Passive cooling (no fan, but optional heatsinks can be attached) VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMIC00019 Categories: Microcontrollers, Raspberry Pi Tags: DIY Kits, IOT, iot in sri lanka, Raspberry Pi 3, raspberry pi 4 price in sri lanka, Robotics
