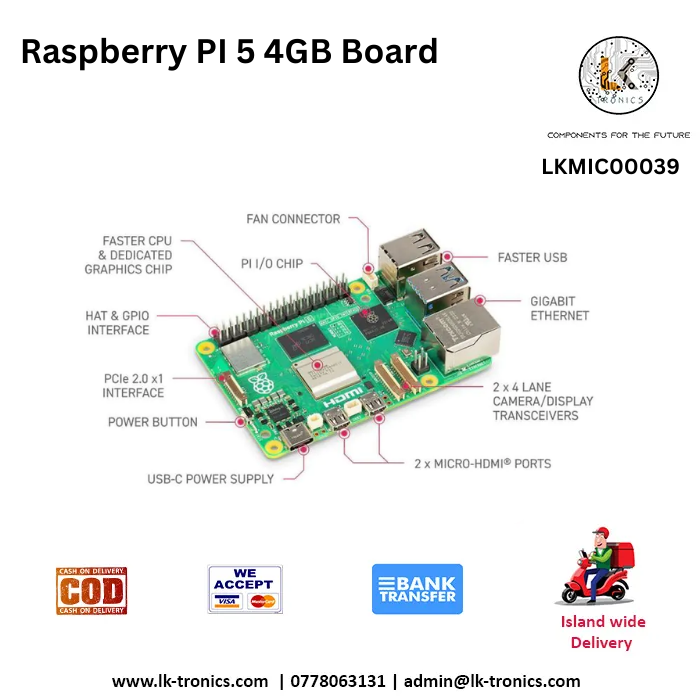

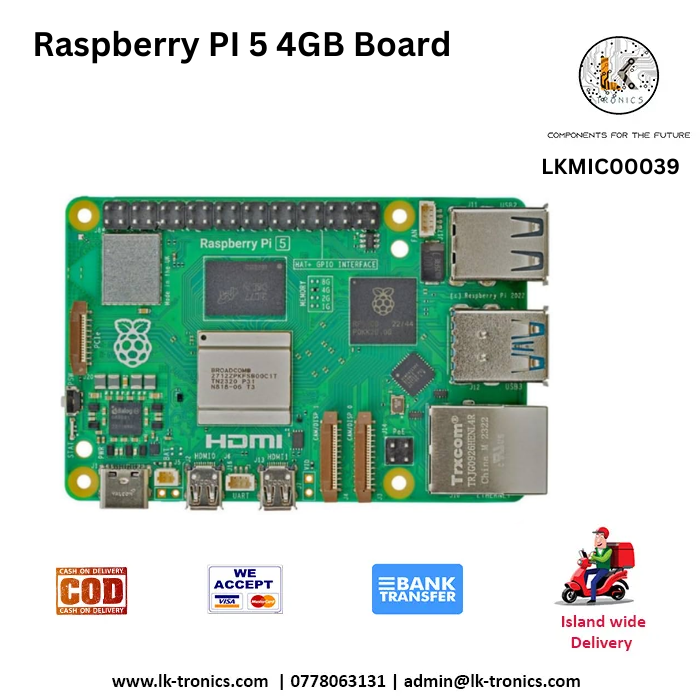

Raspberry PI 5 4GB BoardThe Raspberry Pi 5 4GB model significantly advances the Raspberry Pi lineup, offering enhanced performance and a range of features suitable for various applications. Below is a detailed specification of the Raspberry Pi 5 4GB board:Processor and Memory:CPU: 2.4GHz quad-core 64-bit Arm Cortex-A76 processor with cryptography extensions, featuring 512KB per-core L2 caches and a 2MB shared L3 cache.RAM: 4GB LPDDR4X-4267 SDRAM.Graphics and Display:GPU: VideoCore VII, supporting OpenGL ES 3.1 and Vulkan 1.2.Display Outputs: Dual micro HDMI ports, each capable of 4Kp60 resolution with HDR support.Video Decoding: Hardware decoder for 4Kp60 HEVC video.Storage:MicroSD Card Slot: Supports high-speed SDR104 mode for storage expansion.Networking:Wireless: Dual-band 802.11ac Wi-Fi.Bluetooth: Bluetooth 5.0 with Low Energy (BLE) support.Ethernet: Gigabit Ethernet port with PoE support (requires separate PoE HAT).USB and Connectivity:USB Ports:2 × USB 3.0 ports, supporting simultaneous 5Gbps operation.2 × USB 2.0 ports.Camera and Display Interfaces: 2 × 4-lane MIPI camera/display transceivers.Expansion Interface: PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter).GPIO: Standard 40-pin header for general-purpose input/output.Power:Power Supply: 5V/5A DC via USB-C, with Power Delivery support.Real-Time Clock (RTC): Integrated RTC powered from an external battery.Power Button: On-board power button for convenient control.Physical Specifications:Dimensions: Approximately 85mm × 56mm, maintaining the standard Raspberry Pi form factor.Operating Temperature: Designed for operation in a well-ventilated environment; ensure adequate ventilation if used inside a case.Additional Features:Audio Output: Audio output is available through HDMI and a 3.5mm audio jack.Operating System Compatibility: Requires the latest version of Raspberry Pi OS, Bookworm, for optimal performance.The Raspberry Pi 5 4GB model is priced at $60, offering a balance between performance and affordability.Raspberry Pi DatasheetsFor more detailed technical information, including schematics and mechanical drawings, you can refer to the official Raspberry Pi documentation.raspberrypi.comPlease note that while the Raspberry Pi 5 offers significant performance improvements over its predecessors, it is recommended to use aVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMIC00039 Categories: Microcontrollers, Raspberry Pi Tags: DIY Kits, raspberry pi 4 price in sri lanka
