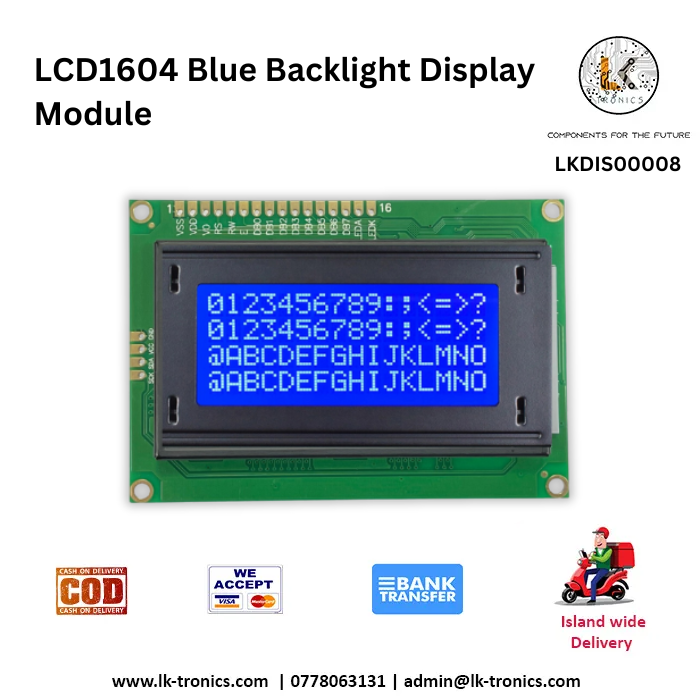

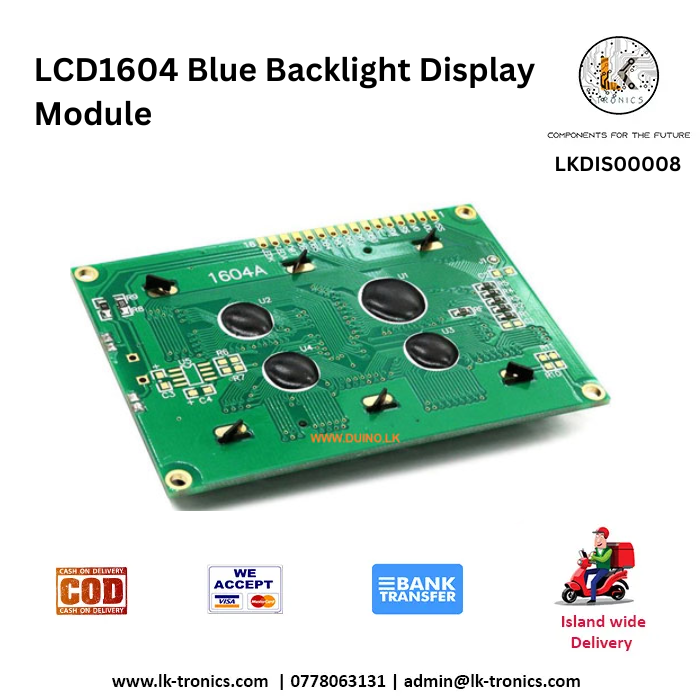

LCD1604 Blue Backlight Display ModuleThe LCD1604 Blue Backlight Display Module features a 16×4 character display with a clear blue backlight, making it perfect for Arduino projects, microcontroller-based systems, and other DIY electronics. It offers excellent visibility and is easy to integrate into various designs, providing a reliable solution for displaying text and dataSpecifications:Display Type: 16 characters x 4 linesBacklight: Blue backlight with white textController: HD44780 or compatibleInterface: Parallel interface (typically 4-bit or 8-bit)Operating Voltage: 4.7V to 5.3V (typical 5V)Backlight Voltage: 5V (typical)Current Consumption: 2mA (without backlight), 60mA (with backlight)Character Size: 2.95 x 4.75 mmModule Size: 87 x 60 mmViewing Area: 61 x 16 mmCharacter Resolution: 5×8 dot matrixTemperature Range:Operating: 0°C to 50°CStorage: -20°C to 70°CPin Configuration:VSS (Pin 1): GroundVDD (Pin 2): Power supply (5V)VO (Pin 3): Contrast adjustment (connect to potentiometer)RS (Pin 4): Register SelectRW (Pin 5): Read/Write selectionE (Pin 6): Enable signalD0-D7 (Pins 7-14): Data lines (for 8-bit mode)A (Pin 15): Anode for backlight ( )K (Pin 16): Cathode for backlight (-)Features:Viewing Angle: Wide viewing angle with high-contrast blue backlightBacklight Control: Can be turned on/off independently via software or external controlContrast Control: Adjustable via potentiometer connected to VO pinCustom Character Support: Supports creating and displaying custom charactersReliability: Long operating life, stable and reliable performanceCompatibility: Compatible with most microcontrollers (Arduino, Raspberry Pi, etc.)Programming Libraries: Available for Arduino, AVR, STM32, ESP8266, etc.VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKDIS00008 Category: Display
