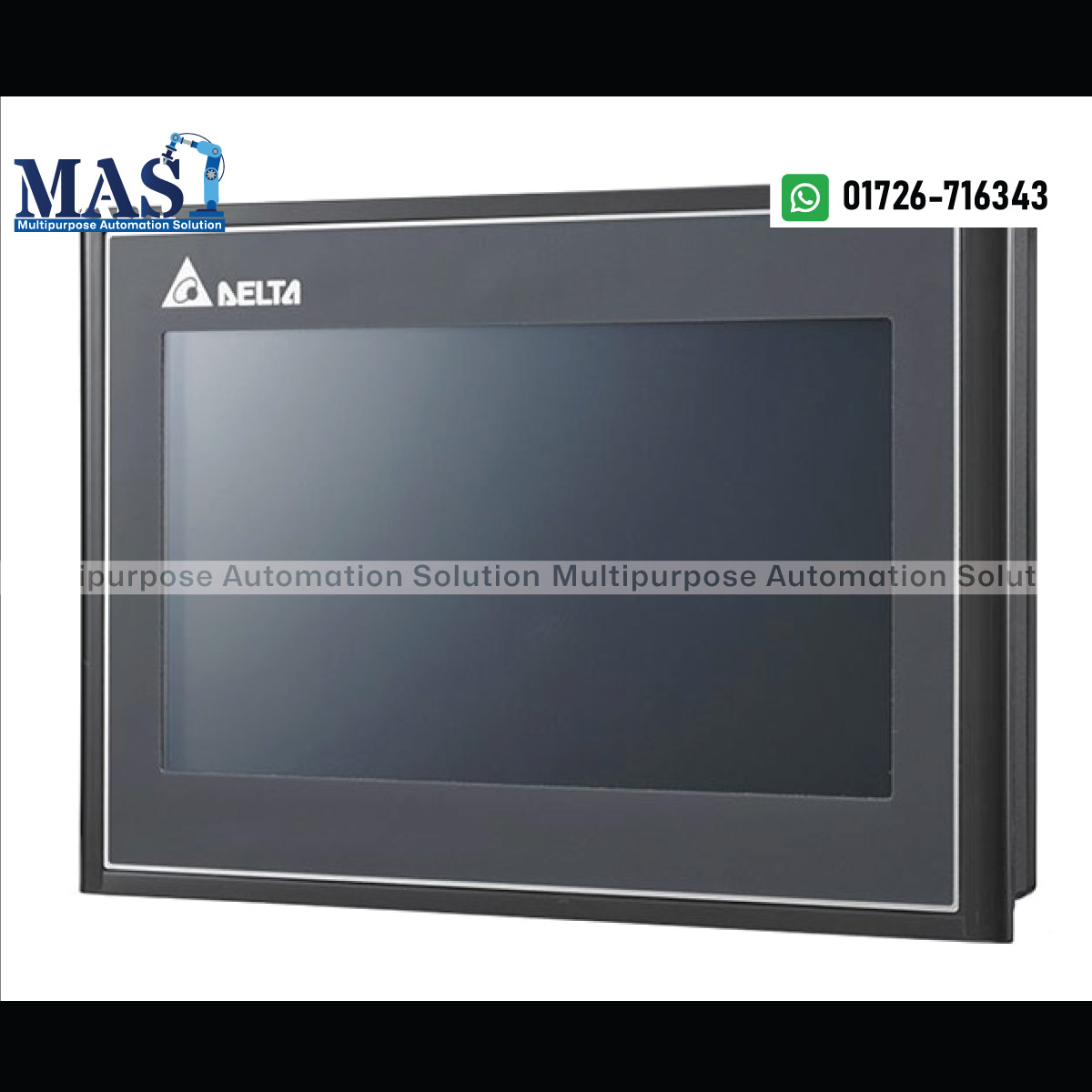

Delta HMI DOP-107WV

Delta HMI DOP-107WV – 7-inch Widescreen TFT Touch Screen HMI with Ethernet – Buy in Bangladesh Elevate your industrial automation with the high-performance Delta HMI DOP-107WV. This 7-inch Human Machine Interface features a crisp WVGA (800 x 480 pixels) widescreen display, a powerful 800MHz processor, and built-in Ethernet capabilities, making it an excellent solution for a wide range of control and monitoring systems. Part of Delta’s advanced DOP-100 series, it offers robust performance, rich features, and a narrow frame design. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Key Features & Specifications of the Delta HMI DOP-107WV: Model: DOP-107WV (W-Type Advanced HMI with Ethernet & Narrow Frame) Display Size: 7-inch TFT LCD Resolution (Pixels): 800 x 480 (WVGA) Colors: 16-bit (65,536 colors) Luminance (Brightness): 450 cd/m² (Typical) Backlight: LED Backlight Backlight Life: > 20,000 hours (at 25°C) CPU: ARM Cortex-A8 (800 MHz) Flash ROM: 256 MB RAM: 512 MB Touchscreen: 4-wire resistive type, with a lifespan of > 10,000,000 presses Communication Ports: COM1: RS-232 (supports hardware flow control) COM2: RS-232 / RS-485 COM3: RS-422 / RS-485 (Total 3 serial COM ports) Ethernet: 1 Port, 10/100 Mbps auto-sensing (with built-in isolated power circuit) USB Slave: 1 (Ver 2.0, Type B, for program download) USB Host: 1 (Ver 2.0, Type A, for USB memory stick) SD Card Slot: N/A (Some WX/MX models may have this, but not WV) Real-Time Clock (RTC): Built-in (with backup battery CR2032, approx. 3 years life at 25°C) Audio Output: Buzzer (Multi-tone frequency 2K – 4K Hz / 80 dB) Power Supply: 24V DC (-15% to 15%) (Supplied by Class 2 or SELV circuit) Power Consumption: Max. 8.4 W Front Panel Protection: IP65 / NEMA4 / UL Type 4X (indoor use only) Cooling Method: Natural Air Circulation (Fan-less) Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) Software: Programmed with Delta DOPSoft (often available as a free download). Dimensions (W x H x D): 196 x 136 x 39 mm Mounting Dimensions (W x H): 186.8 x 126.8 mm Weight: Approx. 560 g Certifications: CE / UL Why Choose the Delta HMI DOP-107WV from Multipurpose Automation Solution in Bangladesh? At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Delta HMI DOP-107WV from us ensures: Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta HMI DOP-107WV in the Bangladesh market. We are committed to offering competitive pricing. High Performance: Equipped with an 800MHz Cortex-A8 CPU and 512MB RAM, this HMI offers fast response times, smooth screen transitions, and efficient operation for complex graphic-intensive applications. Integrated Ethernet: Direct Ethernet connectivity allows for seamless integration into networked systems, enabling faster data exchange and remote monitoring. Crisp Widescreen Display: The 7-inch WVGA (800×480) resolution TFT LCD provides excellent visual clarity and ample screen real estate for detailed graphics, trends, and comprehensive control layouts. Robust Industrial Design: With IP65 front panel protection and a fan-less design, the DOP-107WV is built to withstand demanding industrial environments. Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with expert technical support to assist with selection, programming, and seamless integration into your systems. Applications: The Delta HMI DOP-107WV is ideally suited for a broad spectrum of industrial applications in Bangladesh, including: Advanced machine control and complex process visualization in various industries (e.g., packaging, textiles, woodworking, rubber & plastics). Factory automation lines requiring networked HMIs for centralized control and data exchange. Data acquisition, logging, and historical trending with convenient data transfer via USB. Operator interface for medium-sized industrial machinery. Integration with Delta PLCs and other brands of controllers using serial or Ethernet communication. Price and Availability in Bangladesh: For the BEST PRICE and current availability of the Delta HMI DOP-107WV, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
