Delta HMI DOP-107EG

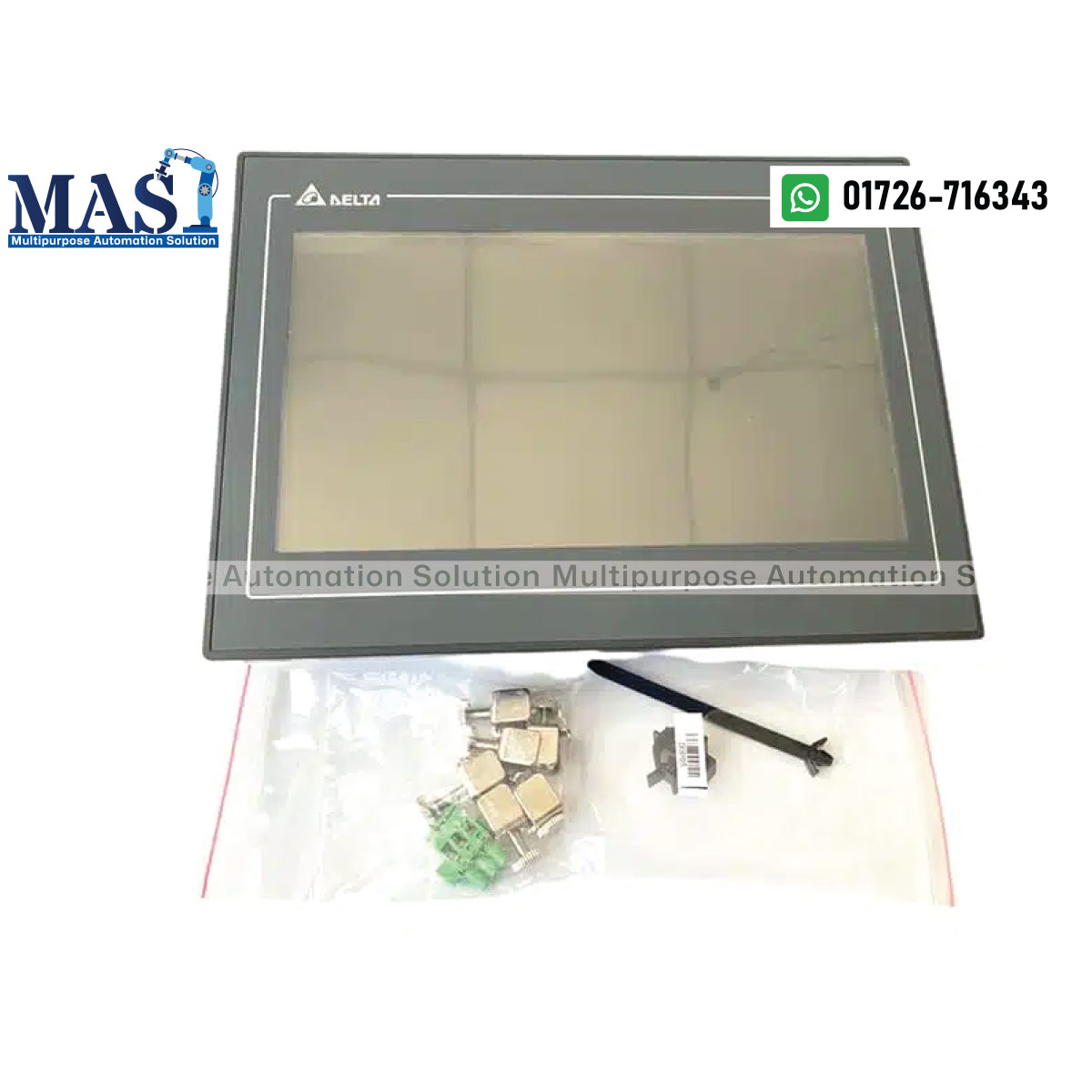

Delta HMI DOP-107EG – 7-inch SVGA Color TFT Touch Screen HMI with Ethernet – Buy in Bangladesh Elevate your industrial automation with the versatile and powerful Delta HMI DOP-107EG. This 7-inch Human Machine Interface features a sharp SVGA (800 x 600 pixels) color TFT display, a fast 800MHz ARM Cortex-A8 processor, and built-in Ethernet capabilities, making it an excellent solution for a wide range of control and monitoring systems that require high-resolution graphics and networked communication. Part of Delta’s DOP-100 Standard Series, it offers robust performance and rich features. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Key Features & Specifications of the Delta HMI DOP-107EG: Model: DOP-107EG (E-Type Standard HMI with Ethernet) Display Size: 7-inch TFT LCD Resolution (Pixels): 800 x 600 (SVGA) Colors: 16-bit (65,536 colors) Luminance (Brightness): 450 cd/m² (Typical) Backlight: LED Backlight Backlight Life: > 20,000 hours (at 25°C) CPU: ARM Cortex-A8 (800 MHz) Flash ROM: 256 MB RAM: 256 MB Touchscreen: 4-wire resistive type, with a lifespan of > 10,000,000 presses Communication Ports: COM1: RS-232 (supports hardware flow control) COM2: RS-232 (supports hardware flow control) / RS-485 COM3: RS-422 / RS-485 (Total 3 serial COM ports) Ethernet: 1 Port, 10/100 Mbps auto-sensing (with built-in isolated power circuit) USB Slave: 1 (Ver 2.0, Type B, for program download) USB Host: 1 (Ver 2.0, Type A, for USB memory stick) SD Card Slot: 1 (supports SDHC) Real-Time Clock (RTC): Built-in (with backup battery CR2032, approx. 3 years life at 25°C) Audio Output: Buzzer (Multi-tone frequency 2K – 4K Hz / 80 dB) Power Supply: 24V DC (-15% to 15%) (Please use an isolated power supply; Supplied by Class 2 or SELV circuit) Power Consumption: Max. 8.4 W Front Panel Protection: IP65 / NEMA4 / UL Type 4X (indoor use only) Cooling Method: Natural Air Circulation (Fan-less) Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) Software: Programmed with Delta DOPSoft (often available as a free download). Dimensions (W x H x D): 184 x 144 x 51.5 mm Mounting Dimensions (W x H): 172.4 x 132.4 mm Weight: Approx. 800 g Certifications: CE / UL Why Choose the Delta HMI DOP-107EG from Multipurpose Automation Solution in Bangladesh? At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Delta HMI DOP-107EG from us ensures: Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta HMI DOP-107EG in the Bangladesh market. We are committed to offering competitive pricing. High-Resolution Display: The 7-inch SVGA (800×600) TFT LCD offers superior clarity and more detailed graphics compared to lower resolution screens, enhancing the user experience. Powerful Performance: Equipped with an 800MHz Cortex-A8 CPU and ample memory, this HMI provides fast response times, smooth screen transitions, and efficient operation for complex graphic-intensive applications. Integrated Ethernet & Versatile Serial Ports: Direct Ethernet connectivity allows for seamless integration into networked systems, while three serial COM ports ensure broad compatibility with a wide range of PLCs and industrial devices. Robust Industrial Design: With IP65 / NEMA4 / UL Type 4X front panel protection and a fan-less design, the DOP-107EG is built to withstand demanding industrial environments. Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with expert technical support to assist with selection, programming, and seamless integration into your systems. Applications: The Delta HMI DOP-107EG is ideally suited for a broad spectrum of industrial applications in Bangladesh, including: Advanced machine control and high-detail process visualization in various industries (e.g., packaging, textiles, woodworking, rubber & plastics, food & beverage). Factory automation lines requiring networked HMIs for centralized control and data exchange. Data acquisition, logging, and historical trending with convenient data transfer via USB/SD. Operator interface for medium to large-sized industrial machinery where both high resolution and robust communication are critical. Integration with Delta PLCs and other brands of controllers using serial or Ethernet communication. Price and Availability in Bangladesh: For the BEST PRICE and current availability of the Delta HMI DOP-107EG, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
