Delta HMI DOP-107CV

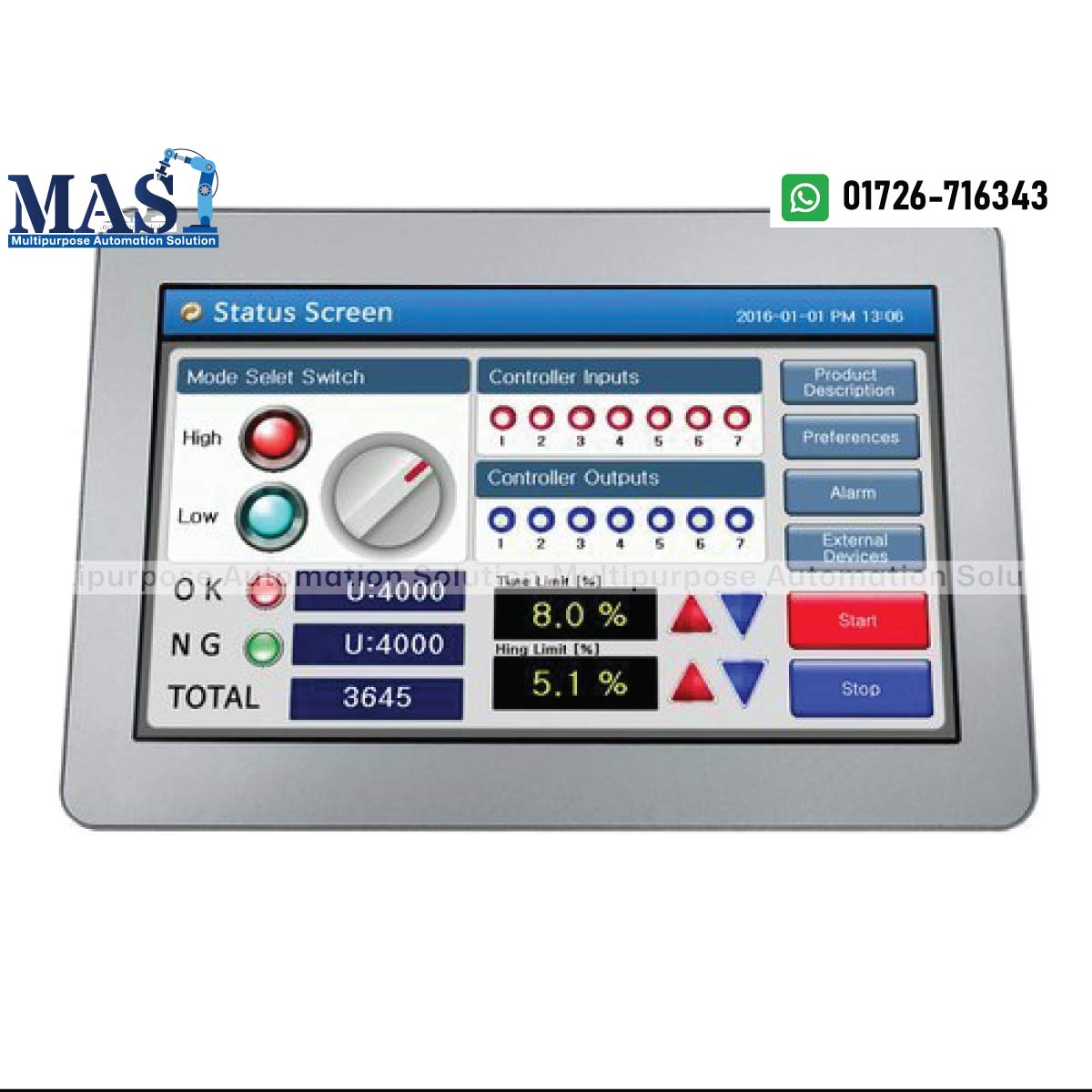

Delta HMI DOP-107CV – 7-inch Widescreen TFT Touch Screen HMI – Buy in Bangladesh Optimize your industrial automation with the reliable and efficient Delta HMI DOP-107CV. This 7-inch Human Machine Interface features a crisp WVGA (800 x 480 pixels) widescreen display, a powerful 800MHz ARM Cortex-A8 processor, and robust serial communication options, making it a solid choice for a wide range of control and monitoring systems. Part of Delta’s DOP-100 Standard Series, it emphasizes core HMI functionalities without built-in Ethernet. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Key Features & Specifications of the Delta HMI DOP-107CV: Model: DOP-107CV (C-Type Standard HMI) Display Size: 7-inch TFT LCD Resolution (Pixels): 800 x 480 (WVGA) Colors: 16-bit (65,536 colors) Luminance (Brightness): 400 cd/m² (Typical) Backlight: LED Backlight Backlight Life: > 20,000 hours (at 25°C) CPU: ARM Cortex-A8 (800 MHz) Flash ROM: 256 MB RAM: 256 MB Touchscreen: 4-wire resistive type, with a lifespan of > 10,000,000 presses Communication Ports: COM1: RS-232 (supports hardware flow control) COM2: RS-232 (supports hardware flow control) / RS-485 COM3: RS-422 / RS-485 (Total 3 serial COM ports) USB Slave: 1 (Ver 2.0, Type B, for program download) USB Host: 1 (Ver 2.0, Type A, for USB memory stick) Real-Time Clock (RTC): Built-in (with backup battery CR2032, approx. 3 years life at 25°C) Audio Output: Buzzer (Multi-tone frequency 2K – 4K Hz / 80 dB) Power Supply: 24V DC (-15% to 15%) (Please use an isolated power supply; Supplied by Class 2 or SELV circuit) Power Consumption: Max. 8.5 W Front Panel Protection: IP65 / NEMA4 / UL Type 4X (indoor use only) Cooling Method: Natural Air Circulation (Fan-less) Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) Software: Programmed with Delta DOPSoft. Dimensions (W x H x D): 215 x 161 x 61.2 mm Mounting Dimensions (W x H): 196.9 x 142.9 mm Weight: Approx. 970 g Certifications: CE / UL Why Choose the Delta HMI DOP-107CV from Multipurpose Automation Solution in Bangladesh? At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Delta HMI DOP-107CV from us ensures: Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta HMI DOP-107CV in the Bangladesh market. We are committed to offering competitive pricing. High Performance: Equipped with an 800MHz Cortex-A8 CPU and ample memory, this HMI offers fast response times, smooth screen transitions, and efficient operation for most applications. Extensive Serial Communication: With three serial COM ports (RS-232, RS-485, RS-422 support), it provides broad compatibility with a wide range of PLCs, drives, and other industrial devices that communicate via serial protocols. Clear Widescreen Display: The 7-inch WVGA (800×480) resolution TFT LCD offers excellent clarity for detailed graphics, trends, and comprehensive control layouts. Robust Industrial Design: With IP65 / NEMA4 / UL Type 4X front panel protection and a fan-less design, the DOP-107CV is built to withstand demanding industrial environments. Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with expert technical support to assist with selection, programming, and seamless integration into your systems. Applications: The Delta HMI DOP-107CV is ideally suited for a broad spectrum of industrial applications in Bangladesh, including: Machine control and process visualization in various industries (e.g., packaging, textiles, woodworking, rubber & plastics). Data acquisition, logging, and historical trending with convenient data transfer via USB. Operator interface for medium-sized industrial machinery, especially where primary communication is serial. Integration with Delta PLCs and other brands of controllers using RS-232, RS-422, or RS-485 communication. Price and Availability in Bangladesh: For the BEST PRICE and current availability of the Delta HMI DOP-107CV, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
