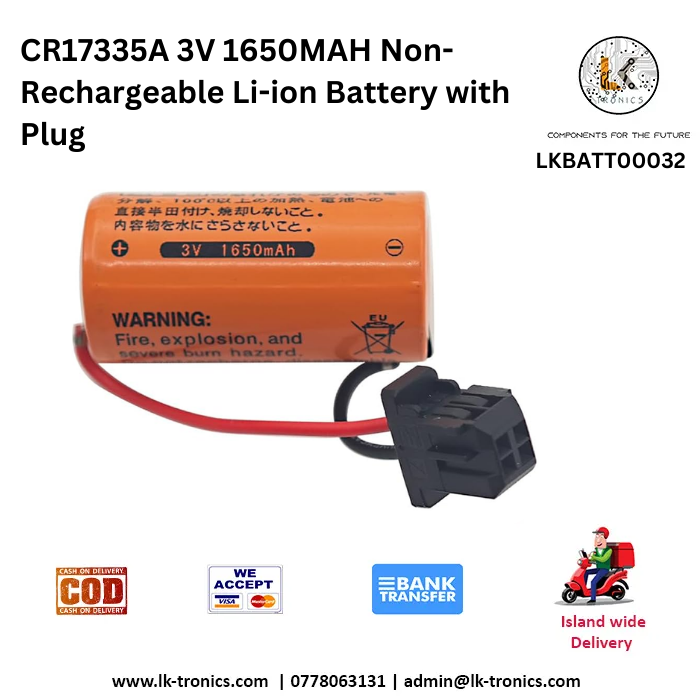

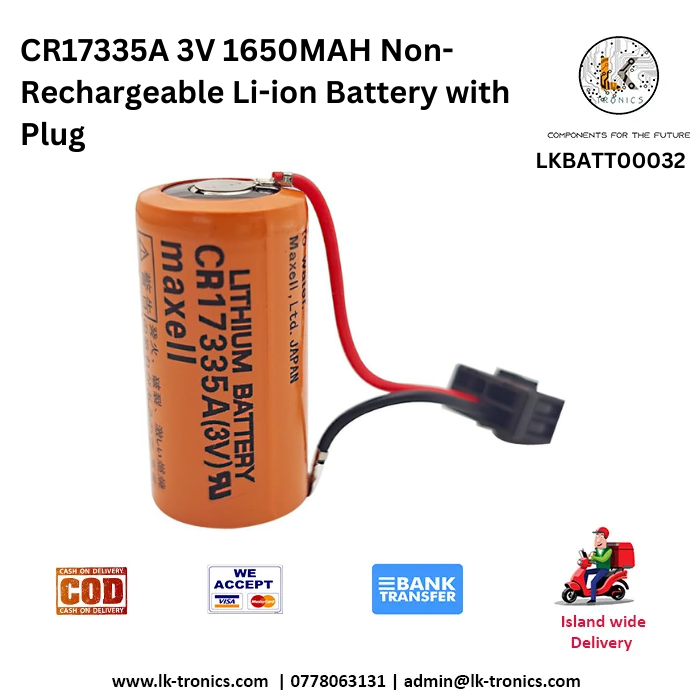

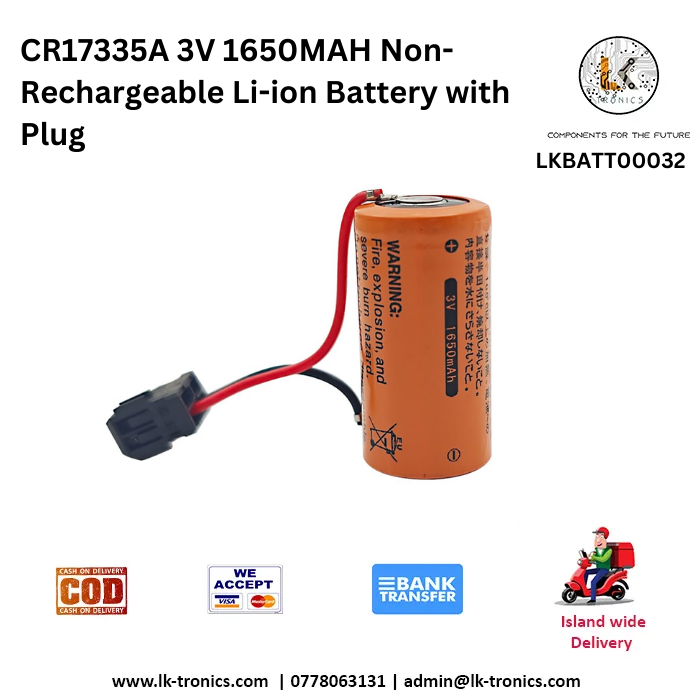

CR17335A 3V Li-ion Battery 1650mAh | With Plug

CR17335A 3V Li-ion Battery 1650mAh | With PlugThe CR17335A is a high-capacity, non-rechargeable 3V lithium battery designed for industrial use. With a 1650mAh rating and built-in plug, it’s perfect for powering PLCs, memory backup systems, CNC machines, and alarm devices. Known for long shelf life, stable voltage output, and compact form factor.SpecificationsProduct Name: CR17335A Lithium Battery with PlugBattery Type: Primary (Non-Rechargeable) Lithium BatteryChemical System: Lithium Manganese Dioxide (LiMnO₂)Model Number: CR17335AShape: CylindricalConnector Type: Plug (customizable: JST, Molex, PH2.0, etc.)Electrical SpecificationsNominal Voltage: 3VNominal Capacity: 1650mAh (at 10kΩ load, 2.0V cut-off, 23°C)Open Circuit Voltage (OCV): 3.2V (fresh)Cut-off Voltage: 2.0VMax Continuous Discharge Current: 20mA – 50mAMax Pulse Discharge Current: 100mA (for ≤15 seconds, 10% duty cycle)Internal Resistance: ≤250 mΩ (fresh)Mechanical & Design FeaturesDimensions:Diameter: 17.0 mm ± 0.3 mmHeight: 33.5 mm ± 0.5 mmWeight: ~16gTerminals: Pre-wired with Plug (custom length and type available)Jacket Material: Aluminum foil / PVC sleeveConstruction DetailsAnode: Lithium MetalCathode: Manganese Dioxide (MnO₂)Electrolyte: Non-aqueous, organic solvent-basedSeparator: Microporous polymer membraneEnvironmental ConditionsOperating Temperature Range:Standard: -40°C to 85°CStorage Temperature Range:Recommended: 0°C to 30°CMax for Short Term: -40°C to 60°CHumidity: <75% RH (non-condensing, during storage)Safety & Protection FeaturesProtection Circuit: None (external protection circuit recommended)Safety Standards Compliance:UL1642 (cell level safety)IEC60086-4 (safety of lithium cells)Built-in Safety Features:PTC (Optional in some versions)Safety vent for pressure reliefExplosion Proof: Yes (under recommended conditions)Shelf Life & ReliabilitySelf-discharge Rate: ≤1% per year (at 23°C, stored without load)Storage Voltage Retention (10 years): >90% of initial capacityApplicationsMemory Backup Systems (CMOS, RTC)Utility Meters (Water, Gas, Electricity)Security SystemsRemote Monitoring DevicesWireless TransmittersMedical Instruments (non-life-support)PLC & Automation EquipmentVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKBATT00032 Categories: Battery, Lithium Tags: Arduino, DIY Kits
