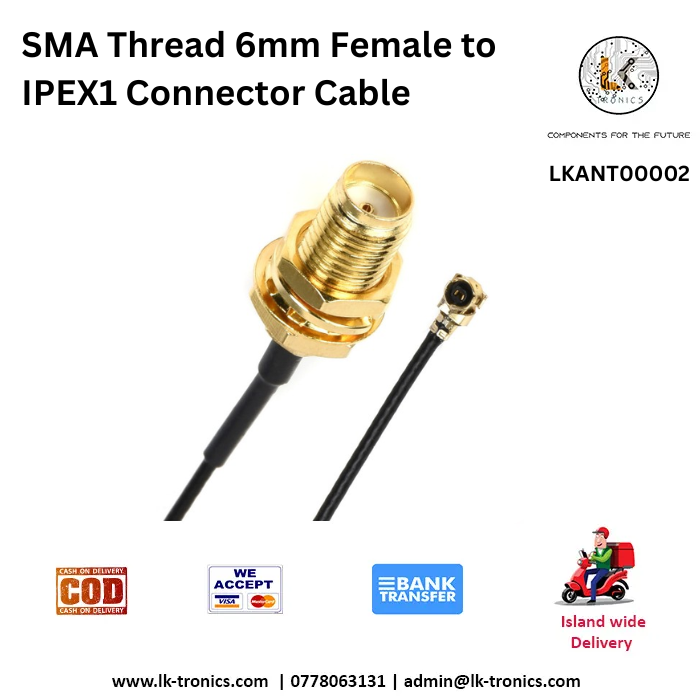

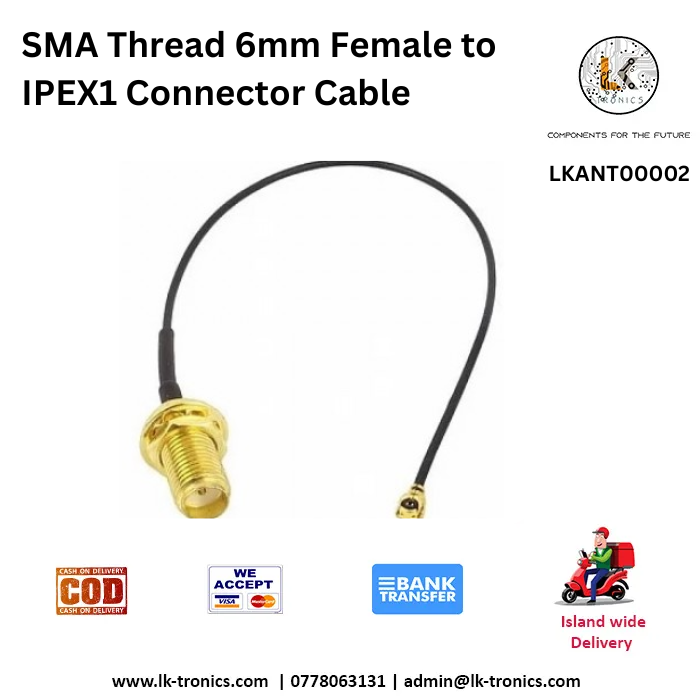

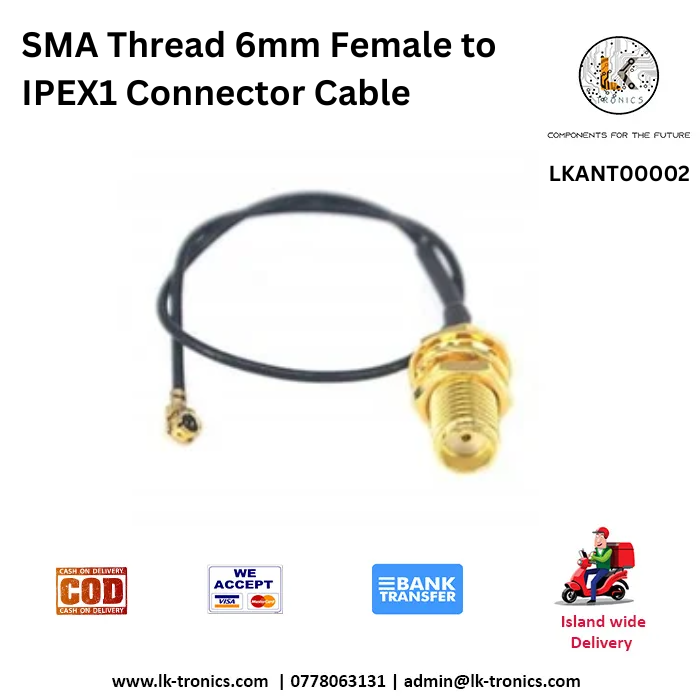

SMA Thread 6mm Female to IPEX1 Connector CableSpecificationsConnector A: SMA Female (with threaded outer shell)Connector B: IPEX1 / U.FL plug (board side)Thread Size: 6 mm outer diameter (standard SMA thread)Mounting Style: Bulkhead type with nut and washer for panel mountingCable Length: 10 cmCable Type: 1.13 mm ultra-thin coaxial cable or RG178 coax (depending on variant)Cable Diameter:1.13 mm version: lightweight and flexibleRG178 version: 1.8–2.8 mm for lower lossConnector Material: Brass, nickel-plated (SMA); phosphor bronze, gold-plated (IPEX1)Insulator Material: PTFE (Teflon)Cable Jacket Material: PVC or PTFE, black colorEnvironmental SpecificationsOperating Temperature: –40 °C to 85 °CStorage Temperature: –55 °C to 125 °CHumidity Resistance: Up to 95% RH non-condensingDurability: 30 mating cycles (SMA) / 10 mating cycles (IPEX1)Corrosion Resistance: Nickel-plated SMA resists oxidation and rustVibration Resistance: Suitable for embedded and portable devicesPerformance & ApplicationsExcellent RF transmission with minimal signal lossStable connection between the embedded GSM/WiFi/GPS module and the external antennaFlexible thin cable suitable for tight spaces inside enclosuresCompatible with most GSM and GPS antenna systems using SMA male connectorsCommon Use Cases:SIM800L, SIM900A, SIM868 GSM/GPRS modulesGPS/GLONASS receiversWiFi and BLE development boardsLTE/4G IoT devicesLoRa transceivers and telemetry system SKU: LKANT00002 Category: Antenna
