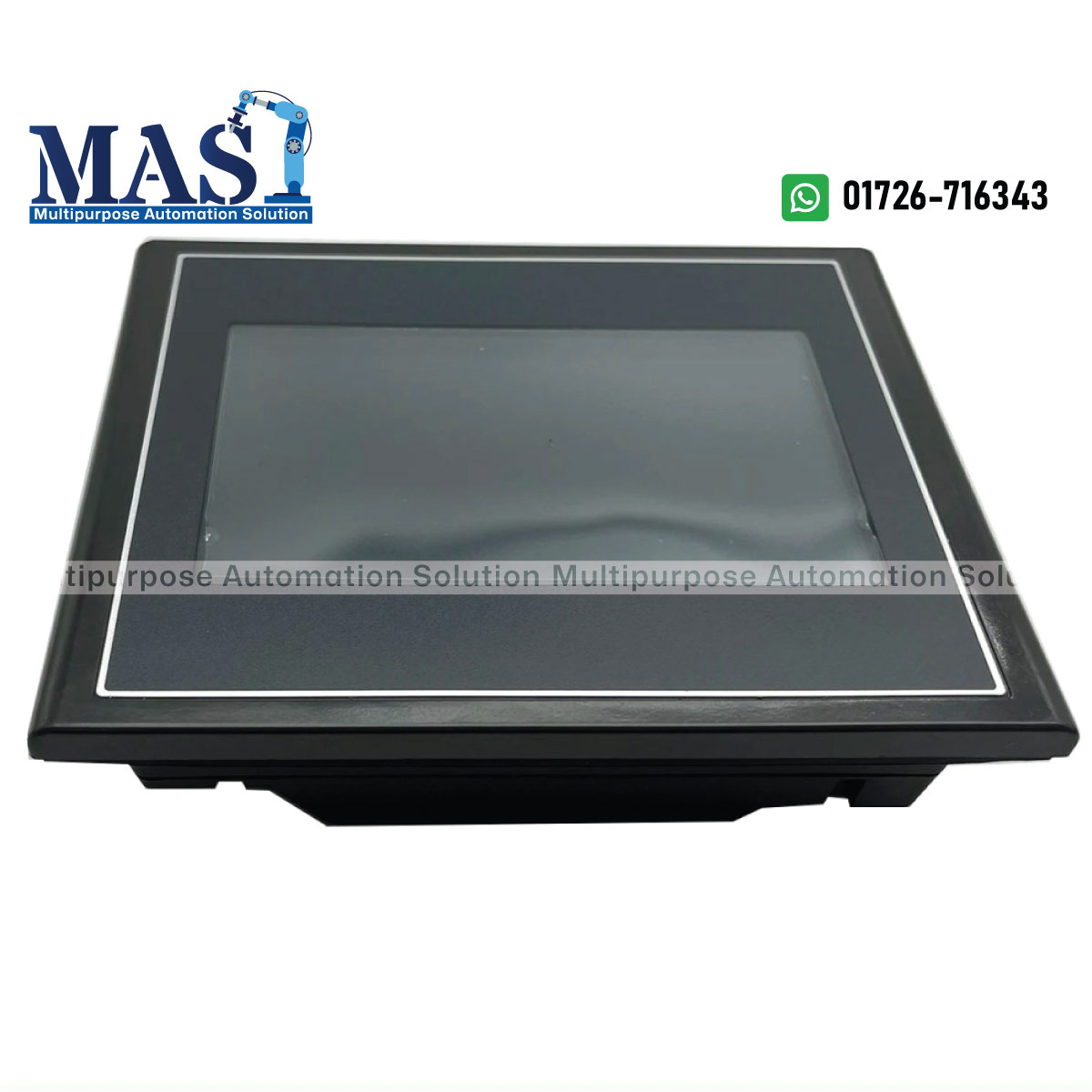

Delta HMI DOP-103WQ – 4.3-inch Widescreen TFT Touch Screen HMI with Ethernet – Buy in Bangladesh Enhance your industrial automation with the compact, high-performance Delta HMI DOP-103WQ. This 4.3-inch Human Machine Interface features a vibrant WVGA (480 x 272 pixels) widescreen display, a powerful 800MHz ARM Cortex-A8 processor, and built-in Ethernet capabilities, making it an excellent solution for space-constrained applications requiring clear visuals and networked communication. Part of Delta’s advanced DOP-100 series, it offers robust features for efficient control. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Key Features & Specifications of the Delta HMI DOP-103WQ: Model: DOP-103WQ (W-Type Advanced HMI with Ethernet & Narrow Frame) Display Size: 4.3-inch TFT LCD Resolution (Pixels): 480 x 272 (WVGA) Colors: 16-bit (65,536 colors) Luminance (Brightness): 400 cd/m² (Typical) Backlight: LED Backlight Backlight Life: > 10,000 hours (at 25°C) CPU: ARM Cortex-A8 (800 MHz) Flash ROM: 256 MB RAM: 512 MB Touchscreen: 4-wire resistive type, with a lifespan of > 10,000,000 presses Communication Ports: COM1: RS-232 (supports hardware flow control) / RS-485 COM2: RS-422 / RS-485 (Total 2 serial COM ports) Ethernet: 1 Port, 10/100 Mbps auto-sensing (with built-in isolated power circuit) USB Slave: 1 (Ver 2.0, Type B, for program download) USB Host: 1 (Ver 2.0, Type A, for USB memory stick) Real-Time Clock (RTC): Built-in (with backup battery CR2032, approx. 3 years life at 25°C) Audio Output: Buzzer (Multi-tone frequency 2K – 4K Hz / 80 dB) Power Supply: 24V DC (-15% to 15%) (Please use an isolated power supply; Supplied by Class 2 or SELV circuit) Power Consumption: Max. 5.8 W Front Panel Protection: IP65 / NEMA4 / UL Type 4X (indoor use only) Cooling Method: Natural Air Circulation (Fan-less) Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) Software: Programmed with Delta DOPSoft. Dimensions (W x H x D): 137 x 103 x 37.1 mm Mounting Dimensions (W x H): 118.8 x 92.8 mm Weight: Approx. 280 g Certifications: CE / UL Why Choose the Delta HMI DOP-103WQ from Multipurpose Automation Solution in Bangladesh? At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Delta HMI DOP-103WQ from us ensures: Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta HMI DOP-103WQ in the Bangladesh market. We are committed to offering competitive pricing. Compact with High Performance: Despite its small footprint, it features an 800MHz Cortex-A8 CPU and 512MB RAM, providing fast response times and efficient operation for advanced HMI tasks. Integrated Ethernet: Direct Ethernet connectivity allows for seamless integration into networked systems, enabling faster data exchange and remote monitoring, crucial for modern automation. Clear Widescreen Display: The 4.3-inch WVGA (480×272) resolution TFT LCD offers clear graphics and ample screen real estate for compact control panels. Robust Industrial Design: With IP65 / NEMA4 / UL Type 4X front panel protection and a fan-less design, the DOP-103WQ is built to withstand demanding industrial environments. Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with expert technical support to assist with selection, programming, and seamless integration into your systems. Applications: The Delta HMI DOP-103WQ is ideally suited for a broad spectrum of industrial applications in Bangladesh, including: Compact machine control and visualization in various industries (e.g., small packaging machines, textile equipment, basic conveying systems). Applications requiring both network connectivity (Ethernet) and a small form factor HMI. Data acquisition, logging, and historical trending with convenient data transfer via USB. Operator interface for small industrial machinery where both clear graphics and network communication are essential. Integration with Delta PLCs and other brands of controllers using serial or Ethernet communication. Price and Availability in Bangladesh: For the BEST PRICE and current availability of the Delta HMI DOP-103WQ, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
