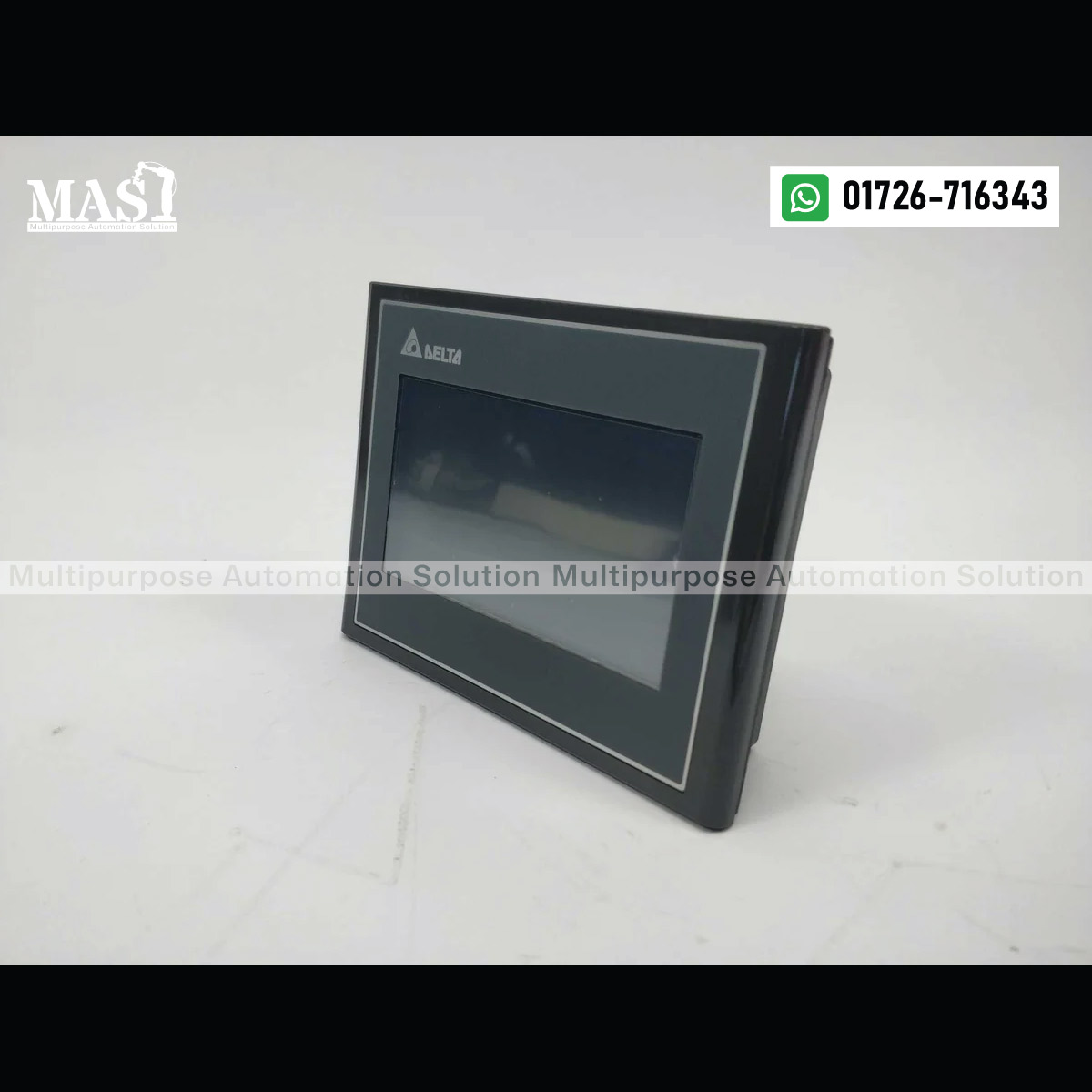

Delta HMI DOP-103BQ – 4.3-inch Widescreen TFT Touch Screen HMI – Buy in Bangladesh Optimize your industrial automation with the compact and efficient Delta HMI DOP-103BQ. This 4.3-inch Human Machine Interface features a clear WVGA (480 x 272 pixels) widescreen TFT display and a powerful 800MHz ARM Cortex-A8 processor, offering a reliable and cost-effective solution for basic control and monitoring tasks in space-constrained environments. Part of Delta’s DOP-100 Basic Series, it provides essential HMI functionalities with robust performance. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Key Features & Specifications of the Delta HMI DOP-103BQ: Model: DOP-103BQ (B-Type Basic HMI) Display Size: 4.3-inch TFT LCD Resolution (Pixels): 480 x 272 (WVGA) Colors: 16-bit (65,536 colors) Luminance (Brightness): 400 cd/m² (Typical) Backlight: LED Backlight Backlight Life: > 20,000 hours (at 25°C) CPU: ARM Cortex-A8 (800 MHz) Flash ROM: 256 MB RAM: 256 MB Touchscreen: 4-wire resistive type, with a lifespan of > 1,000,000 presses Communication Ports: COM1: RS-232 (supports hardware flow control) / RS-485 COM2: RS-422 / RS-485 (Total 2 serial COM ports) Note: This ‘BQ’ model does NOT include a built-in Ethernet port or SD card slot. USB Slave: 1 (Ver 2.0, Type B, for program download) USB Host: 1 (Ver 2.0, Type A, for USB memory stick) Real-Time Clock (RTC): Built-in (with backup battery CR2032, approx. 3 years life at 25°C) Audio Output: Buzzer (Multi-tone frequency 2K – 4K Hz / 80 dB) Power Supply: 24V DC (-15% to 15%) (Please use an isolated power supply; Supplied by Class 2 or SELV circuit) Power Consumption: Max. 5.67 W Front Panel Protection: IP65 / NEMA4 / UL Type 4X (indoor use only) Cooling Method: Natural Air Circulation (Fan-less) Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) Software: Programmed with Delta DOPSoft. Dimensions (W x H x D): 137 x 103 x 37.1 mm Mounting Dimensions (W x H): 118.8 x 92.8 mm Weight: Approx. 280 g Certifications: CE / UL Why Choose the Delta HMI DOP-103BQ from Multipurpose Automation Solution in Bangladesh? At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Delta HMI DOP-103BQ from us ensures: Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta HMI DOP-103BQ in the Bangladesh market. We are committed to offering competitive pricing. Compact & Cost-Effective: Its small size and basic feature set make it an economical choice for applications with limited panel space and straightforward HMI requirements. Reliable Performance: Equipped with an 800MHz Cortex-A8 CPU, it provides stable operation for common control and monitoring tasks. Essential Serial Communication: Features two versatile serial COM ports for connectivity to a wide range of PLCs and industrial devices. Clear Widescreen Display: The 4.3-inch WVGA (480×272) resolution TFT LCD offers clear graphics and ample screen real estate for compact control panels. Robust Industrial Design: With IP65 / NEMA4 / UL Type 4X front panel protection and a fan-less design, the DOP-103BQ is built to withstand demanding industrial environments. Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with expert technical support to assist with selection, programming, and seamless integration into your systems. Applications: The Delta HMI DOP-103BQ is ideally suited for a broad spectrum of industrial applications in Bangladesh, including: Basic machine control and visualization in compact systems (e.g., small packaging machines, individual pump controls, simple conveying lines). Applications requiring essential operator interaction and data display without the need for complex networking. Data acquisition and basic historical logging with data transfer via USB. Integration with Delta PLCs and other brands of controllers using serial communication. Price and Availability in Bangladesh: For the BEST PRICE and current availability of the Delta HMI DOP-103BQ, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
