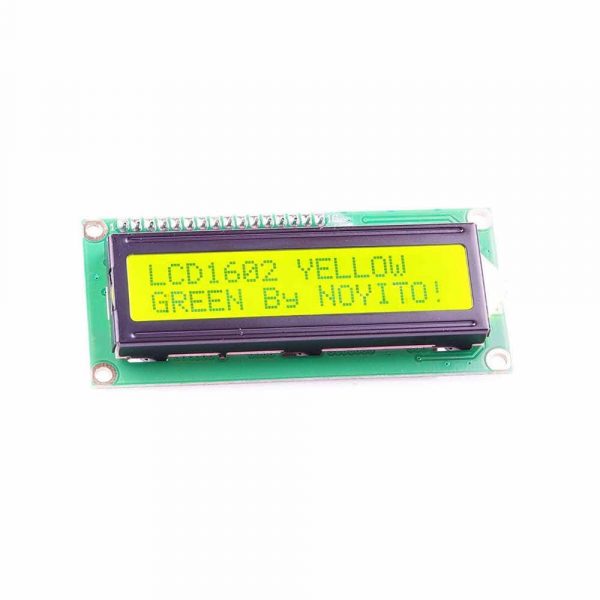

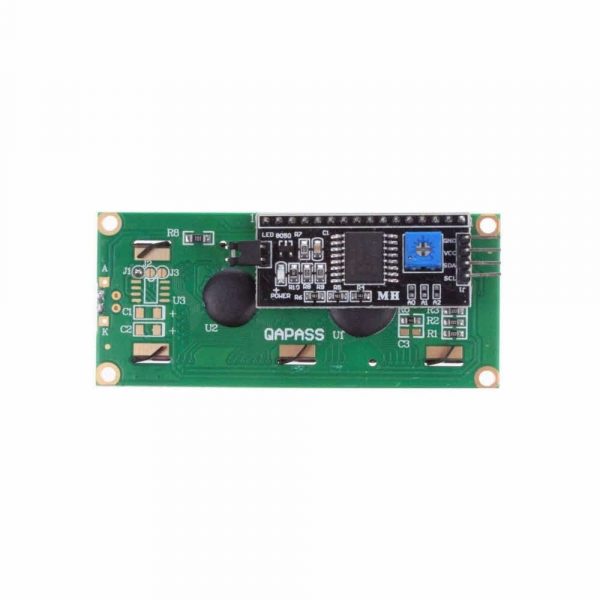

Product Description 16×2 I2C LCD Display Module with Yellow Backlight Overview: This 2×16 character LCD Module with YELLOW Backlight uses an I2C interface to communicate with the host microcontroller. This budget-conscious LCD is used on projects requiring the display of text, data, or ASCII characters of all types. Connect to Vcc, Gnd, SDA (serial data line), and SCL (serial clock line). This is a 5VDC device and will be found on the I2C bus at address 0x27 / 0x3F. This product was brought into our inventory for use with the Propeller 2 Quick Byte code example I2C Bus Scanner Utility. 16×2 I2C LCD Display Module with Yellow Backlight Features: Yellow backlit display with two rows of 16 characters Potentiometer on back to adjust display brightness and contrast I2C protocol only requires two I/O pins (SDA and SCL) for control Note: Also available with a BLUE backlight (#26970) 16×2 I2C LCD Display Module with Yellow Backlight Applications: Show control information (on, off, elapsed time), temperature, time, or numbers/special characters Access all custom characters stored in ROM Debugging for microcontroller projects Useful in dark and bright environments 16×2 I2C LCD Display Module with Yellow Backlight Specifications: Display capacity: 16 character x 2 row Display color: Yellow backlit Character size: 2.95 mm wide x 4.35 mm high Character pixels: 5 W x 7 H Voltage requirements: 5 VDC /- 0.5V Current requirements: 2 mA @ 5 VDC Connection: 4-pin male header with 0.1″: spacing Communication: I2C Overall dimensions: 3.15 x 1.42 x 0.51 in (80 x 36 x 13 mm) Operating temperature range: 32 to 131 °F (0 to 55 °C)
