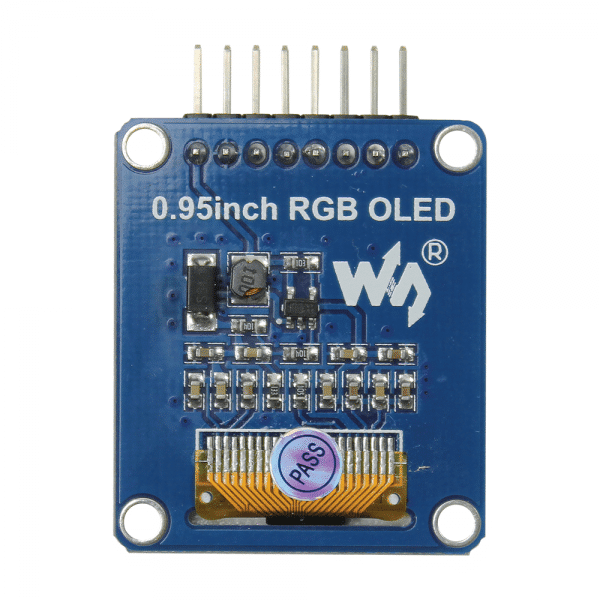

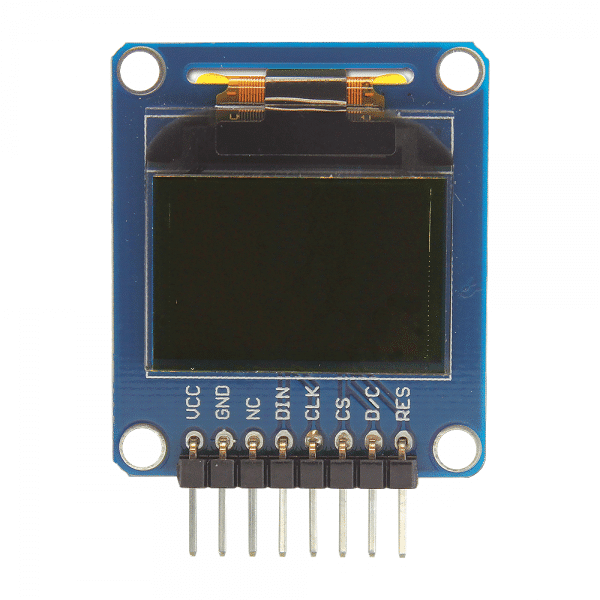

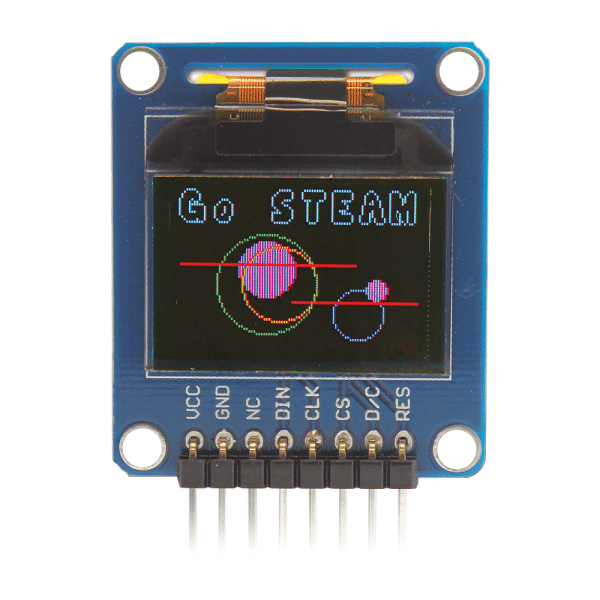

Product Description Color OLED Display Module Overview: The 96×64 Color OLED display is perfect for displaying graphics, text, and images in bright, beautiful colors. Use it on its own to enjoy the graphics, or as part of a bigger project to display information to the user. It’s a great accessory for Propeller or Arduino based STEM or STEAM projects. The display portion of the OLED module measures 0.95″ diagonal and contains 96 x 64 RGB pixels. Each pixel can be set with 16 bits of resolution for a large range of colors. OLED technology does not require a backlight, which results in a colorful, high contrast display. Your microcontroller can talk to the display’s on-board SSD1331 driver chip using a 5-wire, write-only SPI interface. An on-board boost converter properly powers the display, which can be used with with either 3.3 or 5V logic levels. Color OLED Display Module Features: OLED technology for high contrast and vivid colors Fully assembled, breadboard-friendly 7-pin SIP form factor Easy-to-use C libraries and Spin object for the Propeller Microcontroller Supported by BlocklyProp graphical programming tutorials Four mounting holes for installation in permanent projects Application Ideas: Information readout Sensor module display Handheld game console screen Color OLED Display Module Details: Driver Chip: SSD1331 Interface: 5-wire SPI (clock, data, chip select, data/command, reset) Resolution: 96 x 64 Display Size: 0.95 inch diagonally Colors: RGB, 65K colors Visible Angle:>160° Voltage requirements: 3-5 VDC Dimensions: 3.17 x 3.7 cm Operating Temp. (-20 to 70℃) Storage Temp. (-30 to 80 ℃) Not RoHS compliant
