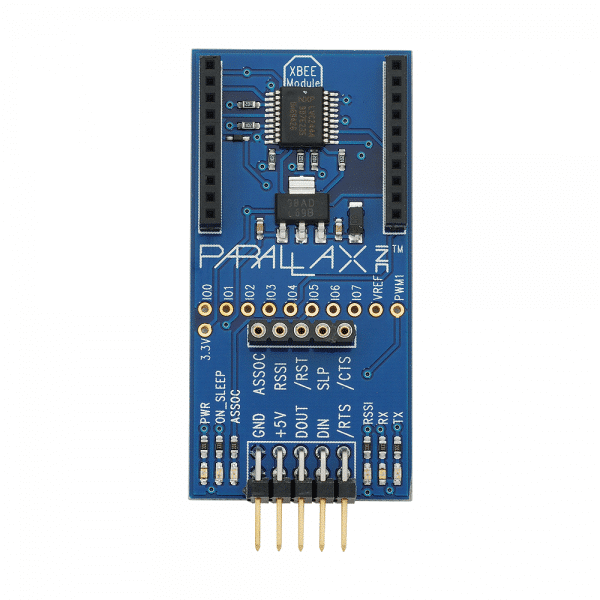

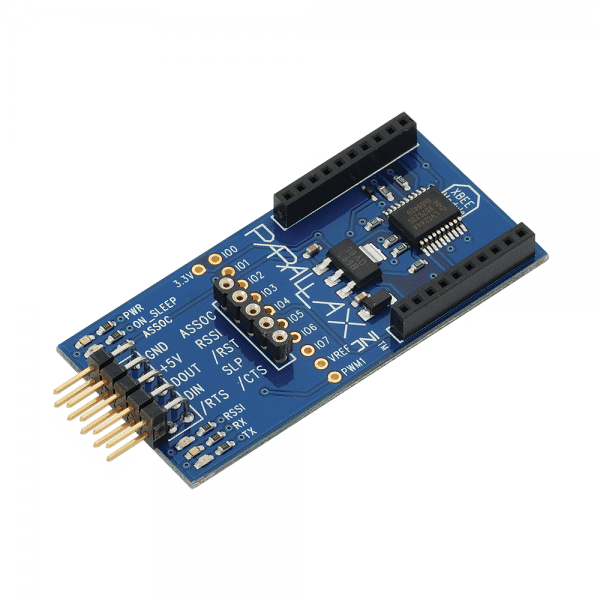

Product Description XBee SIP Adapter Overview: The XBee SIP Adapter is a fully-assembled, small-footprint solution for interfacing the most commonly-used XBee module features with your 3.3 V or 5 V microcontroller. The 2 x 5 dual SIP header makes a sturdy connection to your breadboard or through-hole board, and brings the basic connections to your prototyping area without taking up a lot of space. The more advanced XBee features are still accessible, through additional headers on the module. Key Features: Onboard 3.3 V regulator 5V to 3.3 V logic translator buffers common I/O pins Six status indicator LEDs for Power, Tx, Rx, RSSI, Associate and mode (Sleep/ON) Small footprint dual SIP header provides support and allows easy interfacing to DOUT (TX), DIN (RX), RTS, 5 V supply and ground 5-pin female header connections provides interfacing to other XBee pins such as sleep, reset and associate A row of 10 plated through-holes with 0.1” spacing allows the option of soldering jumper wires or a header (not included) for access to the remaining XBee pins in advanced applications An additional plated through-hole gives access to 3.3 V output for ADC reference (VREF) when required Adapter board is pre-assembled – no soldering required for using most common XBee features Compatible with all Parallax microcontrollers, including the 5 V BASIC Stamp modules and 3.3 V Propeller P8X32A Note: This SIP Adapter is compatible with XBee and XBee Pro modules. XBee SIP Adapter Details: Power requirements: 5 VDC Communication: Serial pass-through to XBee module Dimensions: 1 x 2.4 x 0.36 in (25.4 x 61 x 9.14 mm) Operating temp range: -40 to 158 °F (-40 to 70 °C) PCB assembled, tested, and completed in Rocklin, California Other XBee Adapter Boards: XBee USB Adapter Board (#32400) XBee 5V/3.3V Adapter Board (#32401) XBee Adapter Board (#32403)
