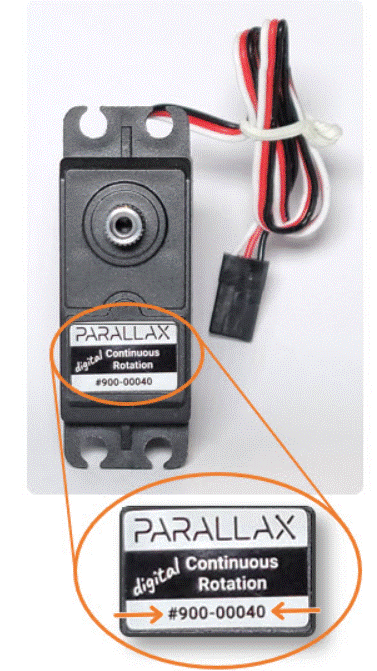

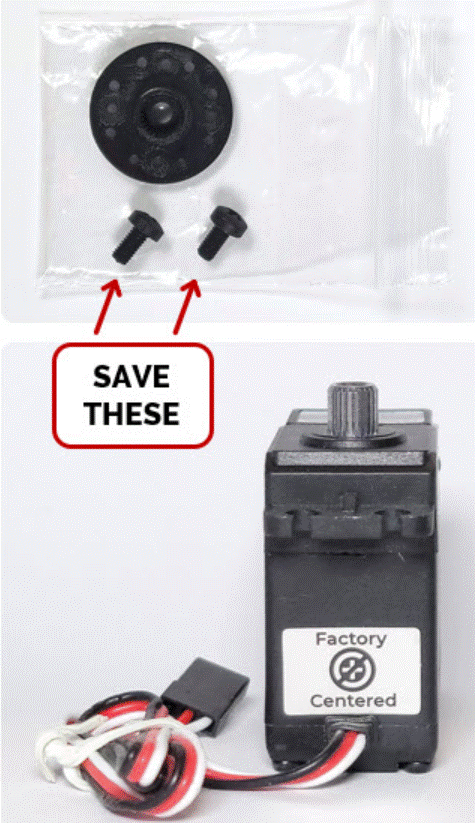

Product Description Parallax Continuous Rotation Servo Factory Centered Overview: The Parallax Continuous Rotation Servo Factory Centered is an ideal hobby servo for robotics and basic movement projects. It is designed for continuous rotation and to be easily interfaced with any Parallax microcontroller. This servo is compatible with the cyber:bot robot with micro:bit and is offered here as a replacement part. See our Tutorials site for use in our robotics kits. This Factory Centered version comes pre-calibrated and ready to mount on your platform. Key Features: Bidirectional continuous rotation 0 to 50 RPM, with linear response to PWM for easy ramping Accepts four mounting screws Easy to interface with any Parallax microcontroller, Arduino Uno, or other PWM-capable device Parallax Continuous Rotation Servo Details: Power requirements: 4 to 6 VDC* , 15 -200 mA Communication: Pulse-width modulation Spline: 3F 25-tooth Dimensions: 2.2 x 0.8 x 1.6 in (55.8x 19 x 40.6 mm) excluding servo horn Operating temp range: 14 to 122 °F (-10 to 50 °C) Torque: 38 oz-in @ 6 V NOTE: Specifications subject to change slightly without notice. We recommend using two of the same type (two original or two digital) for the same robot. At this time this servo is only compatible with the cyber:bot platform.
