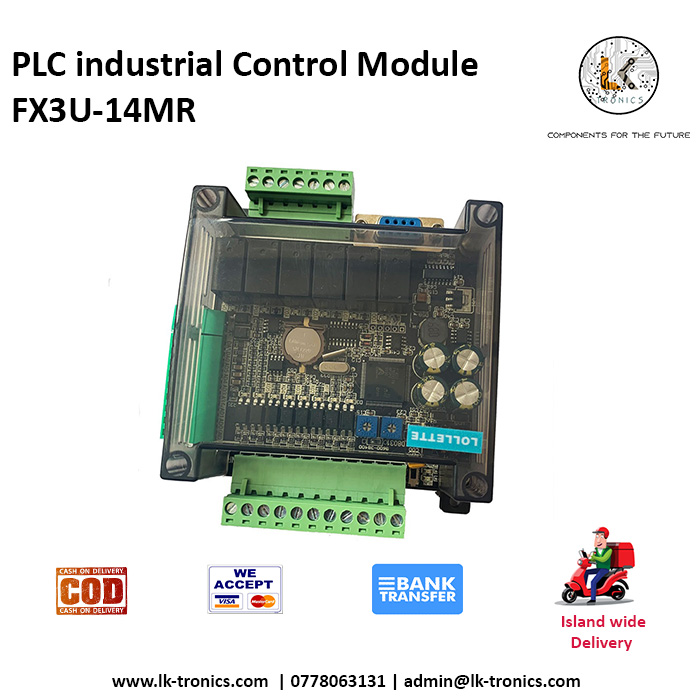

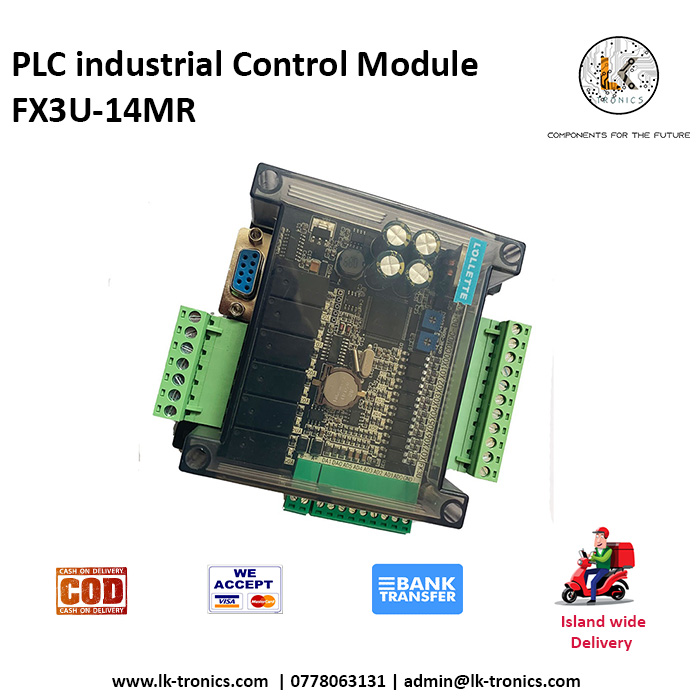

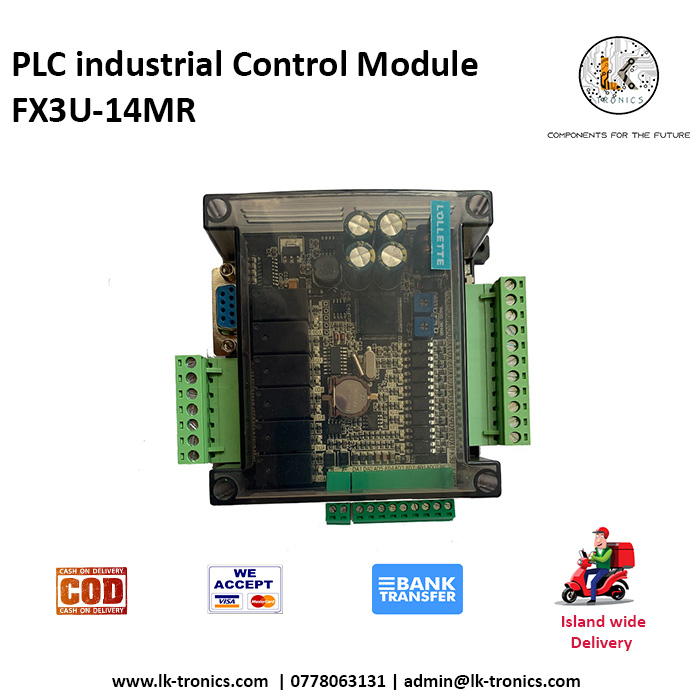

PLC industrial Control Module FX3U 14MRFX3U 14MR Third-party Programming Software Description: can be compatible with the programming software Developer7.8 GX or 8.52、8.5 、8.86 Version.8-point input, 6 relay outputsX0-X5 high-speed input.6 Analog (3channel 0-10v, 3channel 0-20mA) 2 channel 0-10v Analog outputPower-down to maintain.DC 24V power supplySpecificationInput PowerDC24Number of steps8000 steps; 2 communication ports: 1 RS232 (DB9 serial port is communication port for the FX3u protocol 38400,7，E，1； 1 RS485 (485 selection) communication protocol can be set D8120).X input elementX0-X27 DC24 input，Low level,X0-5 is a high-speed count input port (the Default is 12K)Y output elementY0-Y27 for optimal relay output,relay output current 5A.4 continuation electric apparatus 1 common end,Analog input6 analog input, 12 bit precision, 3 channel analog input 0-10V, 3 channel analog input 0-20MA; read analog RD3A instructionAnalog output2 analog output, 12 bit precision, output voltage: 0-10V. output analog voltage with WR3A instructionIntermediate relayM0-M3071, power-down save range can be set M0-M1023, the default M500-M1023Step pointS0-1023, power-down save range can be set S0-S1023, the default S500-S9999100Ms timerT0-T199 Accumulated power-down saving T184-T19910Ms timerT200-T249 Accumulated power-down saving T246-T2491Ms timerT250-T383, where T250-255 is the cumulative type16-bit counterC0-C199, power-down save C100-C19932-bit counterC200-C219, save the power-down C220-C23432-bit high-speed counterC235-255; C235-C240 for the single-phase counter, not multiplier; C241-240 for the single-phase calculator, 2 octave; C2470249 for the dual-phase counter, not multiplier; C250-252 for dual-phase counter, ; C253-C255 for the dual-phase counter, 4 octaveRegister DD0-D7999, power-down save the range can be set D0-7999Indirect addressing pointer V, ZV0-7, Z0-7P The subroutine jump numberP0-63I interruptX0-5 external interrupt, timer interrupt (1MS unit) counter interruptSpecial M componentsM8000 run-time normally closed, M8002 power pulse, M8011 is 10Ms pulse, M8012 is 100Ms pulse, M8013 is 1s pulse, M8014 is minute pulsepackage include:1 x PLC industrial Control Module FX3U-14MRhttps://lk-tronics.com/wp-content/uploads/2023/02/LKIA00103_FX3U-14-Edited.mp4VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKIA00103 Categories: Industrial Automation, PLC Tags: FX3U, PLC
