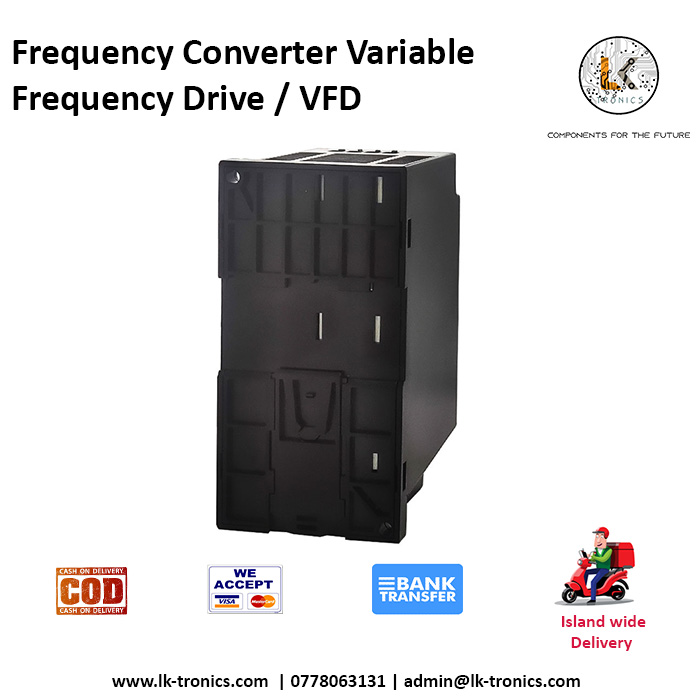

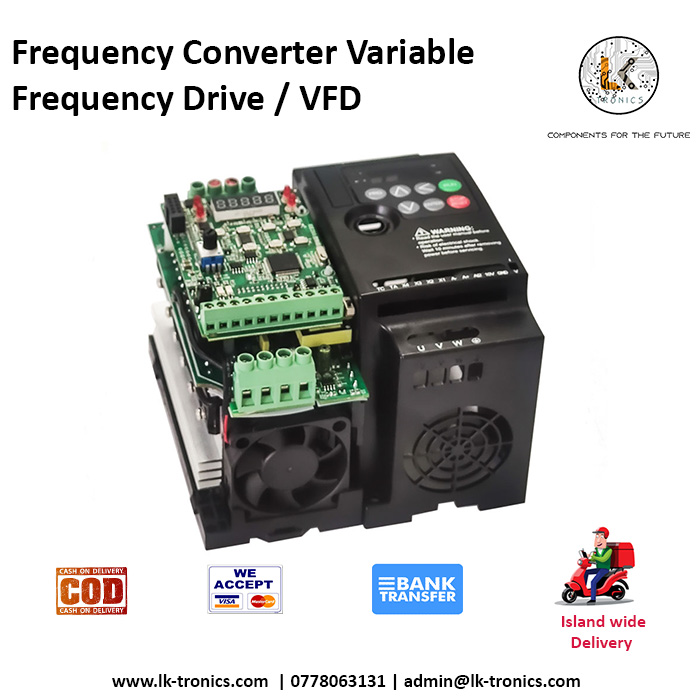

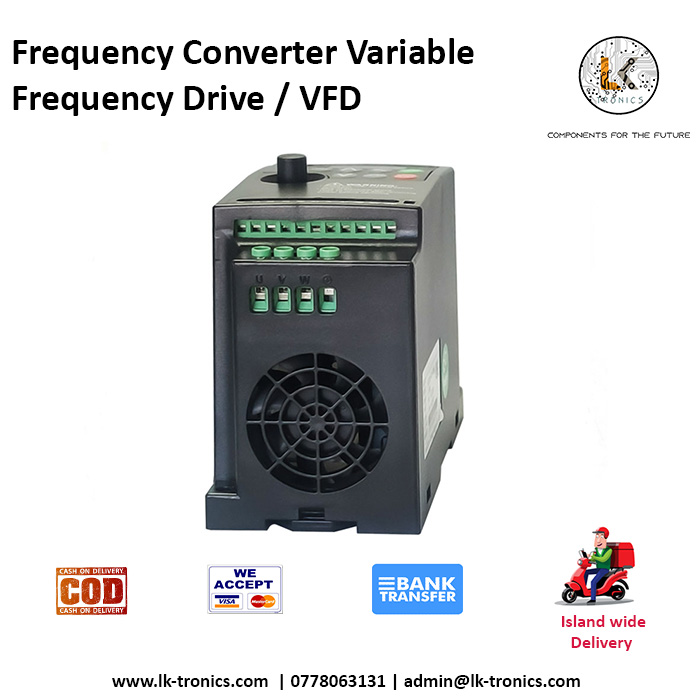

Frequency Converter Variable Frequency Drive / VFD

Frequency Converter Variable Frequency Drive / VFDis customized: NoneOutput Current: 1.5-7AOutput Frequency: 0-600HzWeight: 1kgSize: 220*130*160Output Type: tripleOutput Power: 0.4/0.75/1.5/2.2kwModel Number: A10Type: DC/AC InvertersBrand Name: anxineeOrigin: Mainland ChinaCertification: CEQuick selection instructions: 1、 The 220V single-phase inverter inputs single-phase 220v and outputs three-phase 220v, which is only applicable to three-phase 220v AC motors and is not recommended or applicable to single-phase motors (the inverter can be forced to operate without the protection function but is unstable);2、 In some countries, industrial power consumption is three-phase 380v, but most small power AC motors support star angle connection conversion, which means that a three-phase 380v motor with star connection can be converted to a three-phase 220v motor with triangle connection, so that it can be safely adapted to frequency converter speed regulation. The star angle conversion method can be referred to the following figure:3、 If the motor is not marked with a convertible connection or the three-phase 380V itself corresponds to a triangular connection, it cannot be converted. Please purchase a three-phase 380V converter or use a single-phase 220V to three-phase 380V boost converter;4、 Please select a suitable frequency converter and corresponding control method based on the type of load. The overload capacity of the motor in a short time is generally higher than that of the frequency converter. When the load is large (reaching or exceeding the rated current of the motor), please select a frequency converter with a higher power level or two levels.(Note: Please change the voltage level corresponding to the connection method based on the motor nameplate.) A10 series frequency converters are the main model of our company, with a power range of 0.4KW-132KW and a voltage level of 220V/380V. Based on our accurate understanding of customer needs, we adhere to the consistent pursuit of high quality and reliability of the product, constantly updating and iterating to pursue more accuracy and stability. Strong functions ensure a wide range of application of the product, and excellent performance verifies the excellent service life of the product.Product features：1、Hardware——Regardless of cost, do not cut corners, ensure quality, extend life, and support the following functions:Output short circuit protectionControllable cooling fan5-bit LED displayRS485 communicationInput and output: 4 digital inputs, 1 analog input, 1 analog output, and 1 relay output.Mini model: Small size, convenient installation, and comprehensive functions.2. Software——with multiple iterations and powerful functions, it is suitable for various complex situations and supports the following functions:Automatic carrier frequencyControl mode switchingAutomatic torque increaseSimple PLC programming16 section speed operationPID closed-loop controlAutomatic current suppressionDynamic overvoltage suppressionRegulated outputFast current limitingShock suppressionInstantaneous stopVF separation control9 main and auxiliary frequency sourcesFrequency source superposition operationFrequency resolution 0.01 hzMultiple protection functions: phase loss, overcurrent, overvoltage, undervoltage, overheating, overload.(Note: For more features and specific introductions, please contact us for an electronic version of the product manual.)3. Product applicationIn some specific situations, A10 series frequency converters can completely replace the following equipment: speed reducers, soft starters, energy-saving devices, voltage regulators, phase converters, and forward and reverse switching devicesIt can be used in the following scenarios: fan speed regulation to reduce noise, water pump constant pressure water supply, air compressor frequency conversion energy-saving transformation, injection molding machine frequency conversion energy-saving transformation, oil pump frequency conversion energy-saving transformation, conveyor belt real-time speed regulation, ball mill multi-stage speed operation, slow start of lifting equipment, etc.>> Product wiringParameter setting description::Using an external potentiometer to set parameters: F0-03 Set 2Use the external start/stop switch to set parameters: F0-02 Set 1Restore factory settings Parameters: FP-01 Setting 1(Note: The mini machine does not have a braking unit. If you need a braking function, please select a G type VFD.)>> Product DetailsThree-proof paint treatment, dust and moisture preventionSupport external keyboard, flexible debugging and installationDC multi gear fan for more efficient heat dissipationFlame retardant housing, safe, sturdy and durable>> Product dimensions and standards1、Outline dimension drawing of product（Supports standard 35mm rail installation.）2、Operation panel and opening size3、Product Technical Standards4、Product standard wiring>> Product Use Matters needing attention:Frequency Converter Variable Frequency Drive / VFD The default maximum frequency of most motors is 50Hz, and the factory default frequency converter is 0-50Hz stepless speed regulation. Do not change the frequency range to increase it. For variable frequency motors, please refer to the frequency range marked on the motor nameplate;Ordinary three-phase AC motors use frequency converters. When operating at low speeds for a long time, please pay attention to the heating condition of the motor, and install external heat dissipation devices if necessary;There is a large leakage current during the operation of the frequency converter, which may prevent the leakage protector from working properly and cause frequent trips. The input line of the frequency converter needs to be rewired to bypass the leakage protector;It is recommended that the output end of the frequency converter be directly connected to the motor, and there should be no switches or contactors between the frequency converter and the motor, except for changing the frequency of the star delta starting circuit;VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP   SKU: PREE-005 Category: PLC Tag: Pre order
