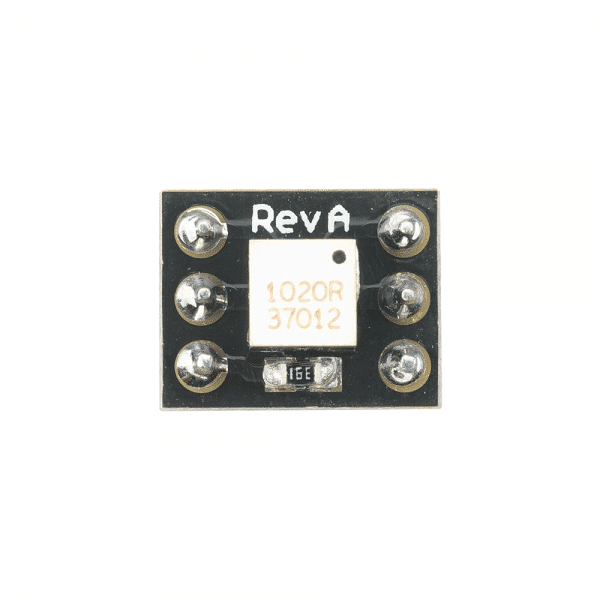

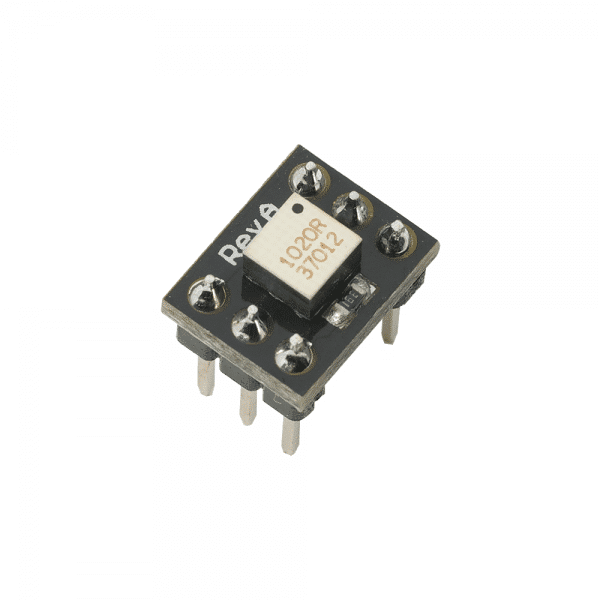

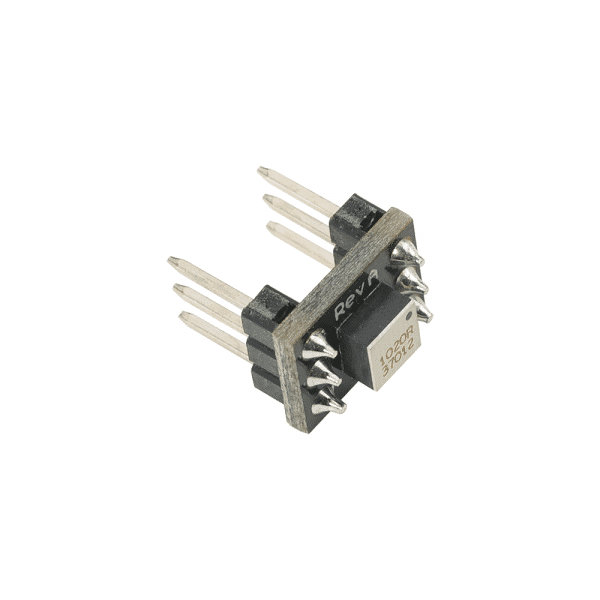

Product Description 4-Directional Tilt Sensor Overview: The 4-Directional Tilt Sensor uses an optical system to provide positional feedback in four directions. Commonly used in many smart phones and digital cameras to adjust the screen display when the device is rotated, it is also quite fun to add to your microcontroller project as an affordable and easy-to-use human input device. 4-Directional Tilt Sensor Features: Positional feedback in four directions Easy communication with any microcontroller Small 6-pin package for breadboard-friendly applications Application Ideas: Rotating display adjustment Robotic movement Tilt-sensing for remote controls Alarm systems Note: Maximum output signal voltage approaches power supply voltage, so use the same voltage level for microcontroller and sensor supply. 4-Directional Tilt Sensor Details: Voltage requirements: 3 to 5.5 VDC Communication: 2-pin high/low output for four sensor states Dimensions: 0.42 x 0.32 x 0.49 in (1.07 x 0.81 x 1.24 cm) Operating temp range: 32 to 122 °F (0 to 50 °C)
