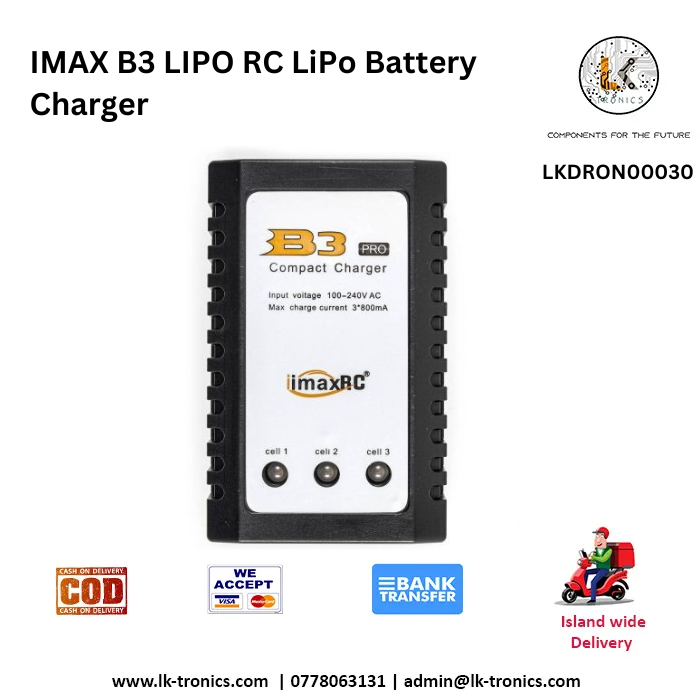

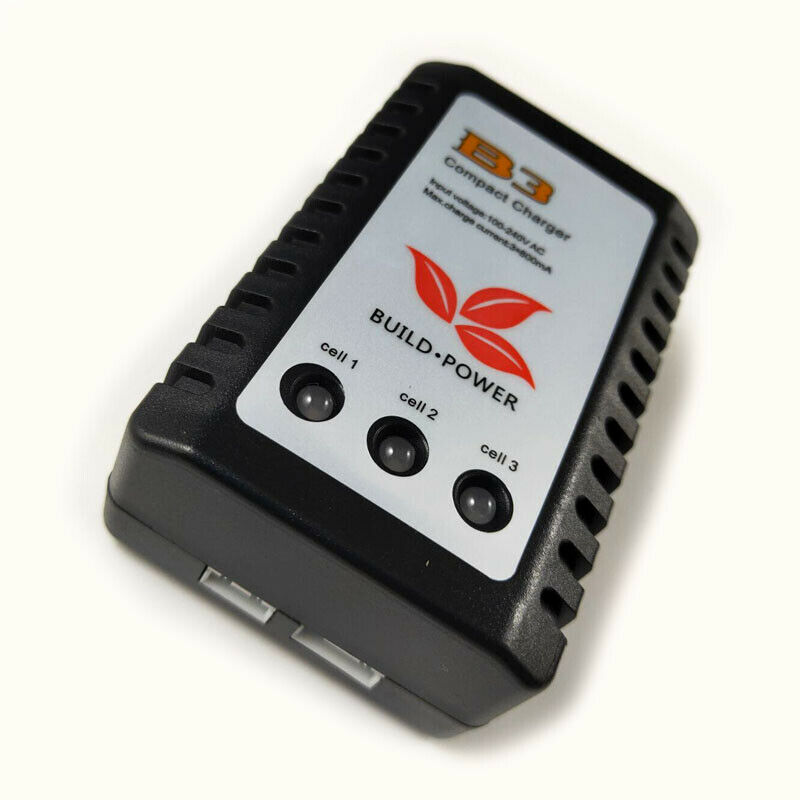

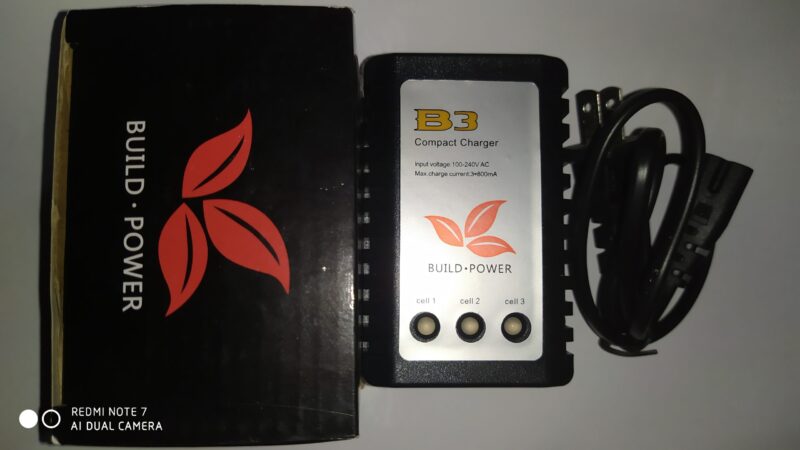

IMAX B3 LIPO RC LiPo Battery ChargerSpecifications:Model: IMAX B3 Pro Compact ChargerInput Voltage: AC 100-240V, 50/60HzCharging Power: 10WCharging Current: 3-cell battery (LiPo) at a fixed current of 1.6ABattery Type: Lithium Polymer (LiPo)Battery Cells Supported: 2S and 3S LiPo batteriesCell Voltage:2S: 7.4V3S: 11.1VOutput Plug: JST-XH (commonly used balance plug)Dimensions: 90mm x 55mm x 33mm (L x W x H)Weight: Approx. 180gLED Indicators:Red: ChargingGreen: Fully chargedOperating Temperature: 0°C to 40°CStorage Temperature: -20°C to 60°CSafety Features:Overcharge protectionShort circuit protectionReverse polarity protectionBalance charging to ensure cells are charged evenlyCharging Time:2S battery: Approximately 1-2 hours depending on battery capacity3S battery: Approximately 2-3 hours depending on battery capacityUsage Instructions:Connect Charger to Power Source: Plug the charger into an AC outlet (100-240V).Battery Connection: Connect the balance connector of the LiPo battery (2S or 3S) to the corresponding port on the charger (ensure correct polarity).Charging Process: The red light will indicate that charging has started, and it will turn green when the battery is fully charged.Disconnect Battery: Once charging is complete, disconnect the battery from the charger.Notes:Designed for 2S and 3S LiPo batteries only. It does not support other battery types like NiMH or lead-acid.Always monitor batteries during charging for safety reasons.Make sure the charger is used in a well-ventilated area, away from flammable materials,,,,,,, SKU: LKDRON00030 Category: Drone Accessories Tags: charger, Drones, lipo
