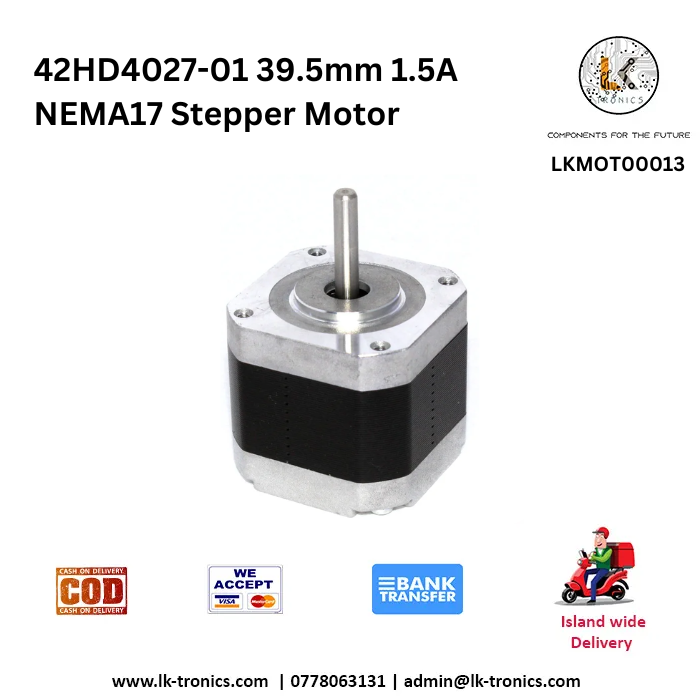

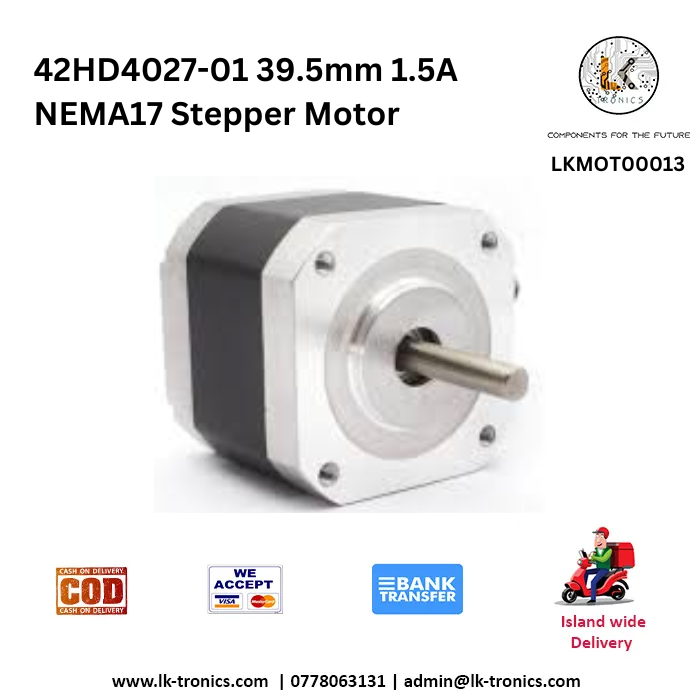

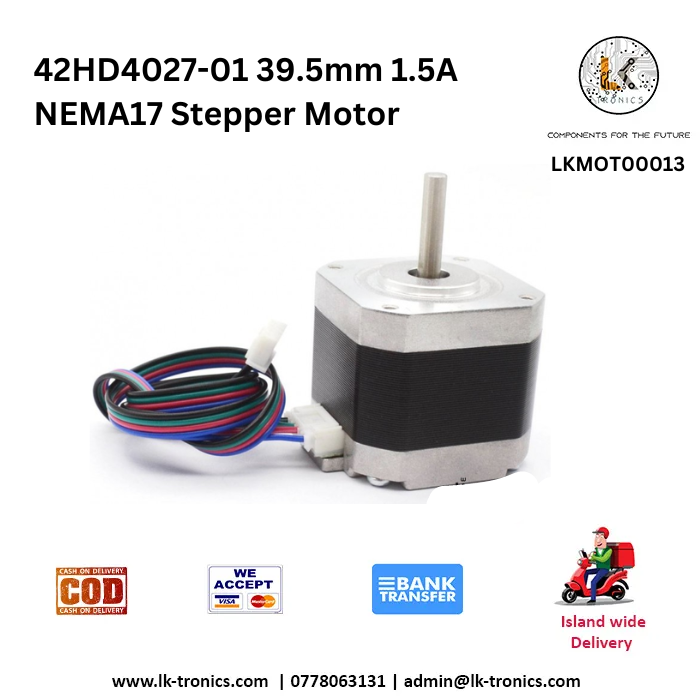

NEMA17 42HD4027-01 39.5mm 1.5A  Stepper Motor

$22.13 $42.93
NEMA17 42HD4027-01 39.5mm 1.5A  Stepper MotorSpecifications:Motor Type: Bipolar Stepper MotorModel Number: 42HD4027-01Step Angle: 1.8° (200 steps per revolution)Holding Torque: 45N.cm (0.45 Nm)Number of Phases: 2Rated Current/Phase: 1.5APhase Resistance: 2.7 ohmsInductance: 4.8 mHPhysical Dimensions:Frame Size: NEMA 17Body Length: 39.5 mmShaft Diameter: 5 mmShaft Length: 24 mmMounting Holes: 31 mm (center-to-center)Lead Wire: 4 wires (Bipolar)Electrical Specifications:Rated Voltage: 4.05 VWinding Type: Bipolar parallelInsulation Class: BPerformance Characteristics:Detent Torque: 2.2N.cmRotor Inertia: 57 g.cm²Max Operating Temperature: 80°CStep Accuracy: ±5%Applications:Commonly used in 3D printers, CNC machines, robotics, and other precision motion systems. SKU: LKMOT00013 Categories: Motors, Stepper Motors
