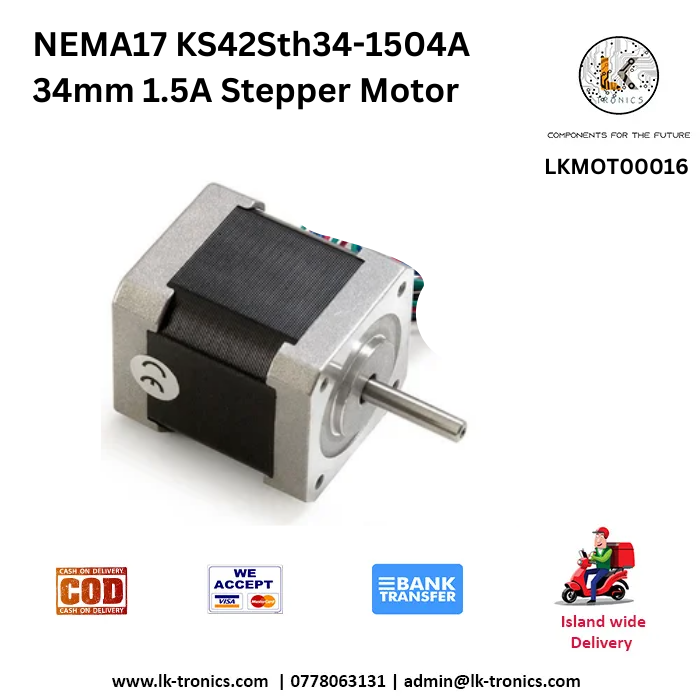

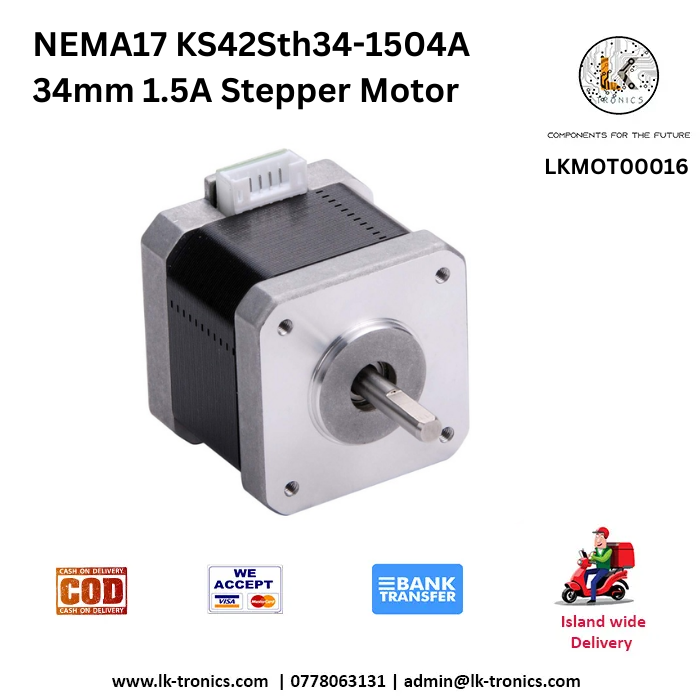

NEMA17 KS42Sth34-1504A 34mm 1.5A Stepper Motor

NEMA17 KS42Sth34-1504A 34mm 1.5A Stepper MotorSpecificationsFrame Size: NEMA 17 (42 mm x 42 mm)Motor Length: 34 mmShaft Diameter: 5 mm (standard, may vary for custom models)Shaft Length: 20-24 mm (varies by model)Shaft Type: Single or dual shaft (straight with or without a flat section)Weight: Approx. 260 gramsElectrical SpecificationsPhase Current: 1.5 A/phaseRated Voltage: Varies based on driver resistance (typically 2-5 V)Phase Resistance: ~2.8 ΩPhase Inductance: ~3.8 mHInsulation Resistance: >100 MΩ at 500 VDCPerformance CharacteristicsStep Angle: 1.8° (200 steps per revolution)Step Accuracy: ±5% (full step, no load)Holding Torque: ~36 Ncm (51 oz.in) depending on driver and supply voltageDetent Torque: ~2 NcmMaximum Temperature Rise: 80°C (above ambient)Operational ParametersOperating Temperature: -20°C to 50°CStorage Temperature: -20°C to 70°CHumidity: 20%-90% (non-condensing)Dielectric Strength: 500 VAC for 1 minuteWiring SpecificationsLead Wires: 4 wiresLead Length: ~300-400 mmWire Color Coding (typical):A : RedA-: BlueB : GreenB-: BlackConnector: Bare wire ends or optional connector (depends on manufacturer)Applications3D PrintersCNC MachinesRoboticsCamera Pan-Tilt SystemsAutomated Equipment SKU: LKMOT00016 Categories: Motors, Stepper Motors
