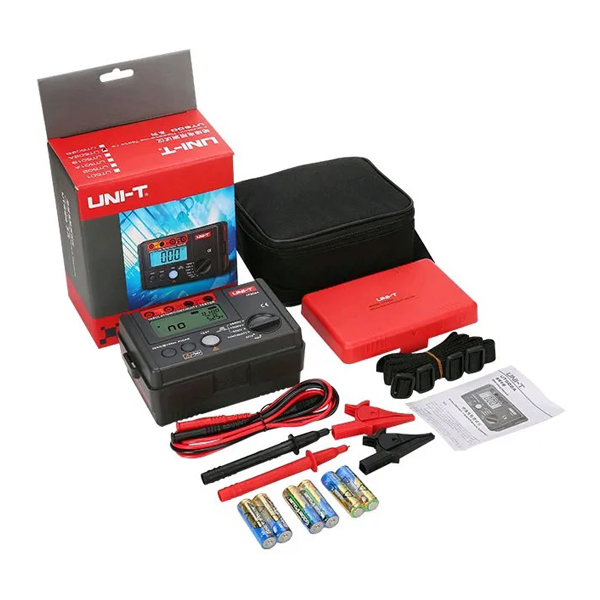

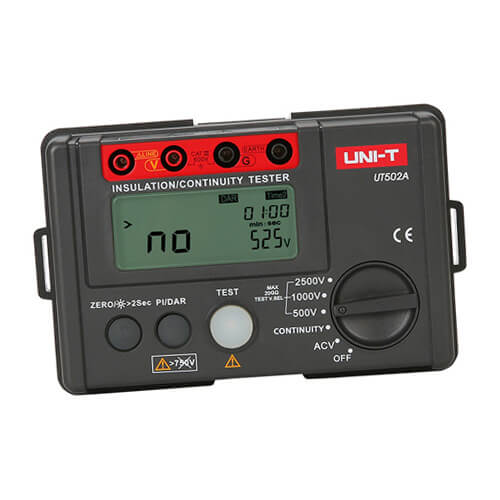

Uni-T Digital Megger Meter Insulation Tester UT502A 2500V

UT500 series Digital Megger Meter insulation testers measure the insulation resistance of electrical equipment and household appliances by measuring the insulation resistance between electrical circuits or between circuits and the ground. The UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index), and DAR (Dielectric Absorption). These are ideal tools for ensuring transformers, generators, high-voltage motors, capacitors, cables, arresters, and other electrical equipment can operate safely and accurately.Uni-T Digital Megger Meter Insulation Tester UT502A 2500V AC Voltmeter Megohmmeter High Voltage / Overload Indicator LCD Backlight.2000-count LCD, overload indication, backlightAC voltage measurement, auto power offAuto dischargeContinuous low resistance measurementContinuous measurements mode, red warning light, and buzzer functionPI and DAR measurement, auto resistivity calculationLow resistance returning to zero function to improve accuracySpecificationsRangeBest AccuracyModelUT502AInsulation Resistance (Ω)Test Voltage500V/1000V/2500V0%~10P0V0.00MΩ~99.9MΩ±(3% 5)100MΩ~5.0GΩ±(5% 5)1000V0.00MΩ~99.9MΩ±(3% 5)100MΩ~5.0GΩ±(5% 5)2500V0.00MΩ~99.9MΩ±(3% 5)100MΩ~9.9GΩ±(5% 5)10.0GΩ~20.0GΩ±(10% 5)Load Current50V (R=50kΩ) 1mA0%~100V (R=100kΩ) 1mA0%~10%0V (R=250kΩ) 1mA0%~10P0V (R=500kΩ) 1mA0%~1000V (R=1MΩ) 1mA0%~10%00V (R=1MΩ) 1mA0%~10%Short Circuit Current<2mALow Resistance (Ω)0.01Ω~200Ω (about 5.0V/>200mA)±(2% 3)AC Voltage (V)30V~600V±(2% 3)FeaturesDisplay Count2000DAR60s/15s and 60s/30s√PI√Auto Range√Low Battery Indication√LCD Backlight√Alarm Light Display√Alarm Buzzer√High Voltage Indication√Over Load Indication√Auto Discharge√Test Voltage Vice Display√10MΩ Internal Resistance Test√General Characteristics Power1.5V Batteries (LR6) × 6LCD Size70.6mm x 34mmProduct ColorRed and GreyProduct Net Weight500gProduct Size150mm x 100mm x 71mmStandard AccessoriesProbe, Alligator Clip, Test Lead, GallusStandard Carton Measurement500mm × 380mm × 330mm (0.063 CBM Per Standard Carton)
