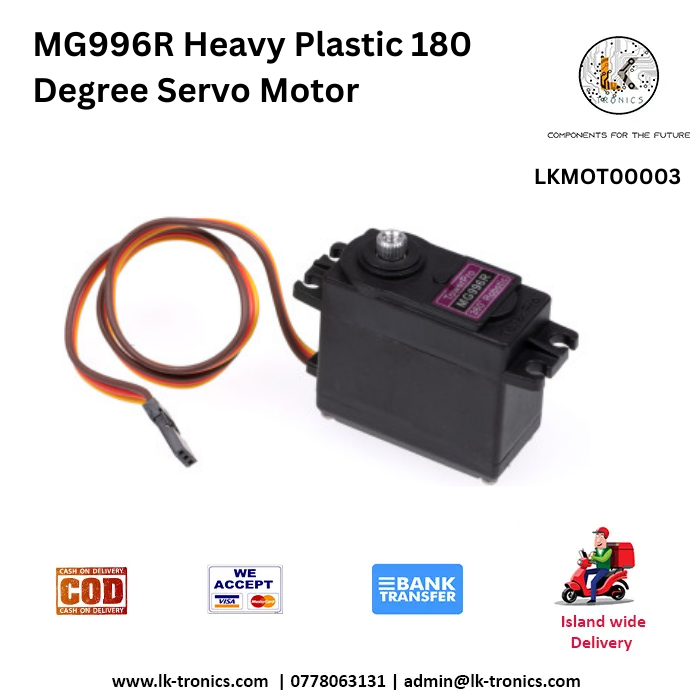

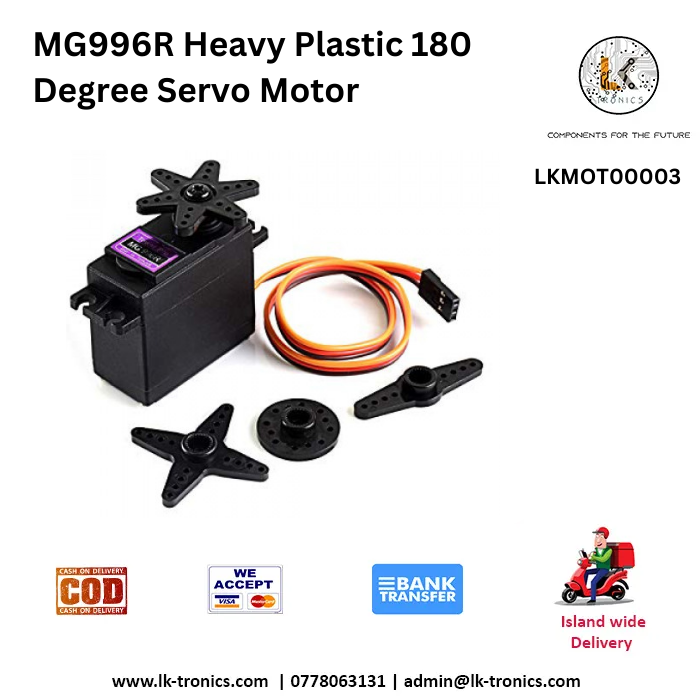

MG996R Heavy Plastic 180 Degree Servo MotorSpecificationsGeneral InformationModel: MG996RType: Digital Servo MotorUse Case: Robotics, RC Cars, Boats, Drones, and Mechanical Arm ProjectsMaterial: Heavy-duty plastic casing with metal gearRotation Range: 180 degreesMechanical FeaturesGear Type: Heavy-duty plasticBearing Type: Dual Ball BearingDimensions: 40.7mm x 19.7mm x 42.9mmWeight: 55 gramsHorn Type: Plastic horn with various mountable adaptersPerformanceOperating Voltage: 4.8V – 7.2VOperating Speed:0.19 sec/60° (at 4.8V)0.17 sec/60° (at 6.0V)Stall Torque:9.4 kg·cm (at 4.8V)11 kg·cm (at 6.0V)Idle Current (No Load): 10mARunning Current: 500mA (typical)Stall Current: 2.5AControl SystemControl Signal: Pulse Width Modulation (PWM)Pulse Range: 500µs to 2500µsNeutral Position: 1500µsDead Band Width: 5µsConnector Type: 3-pin Female Header (Compatible with most controllers)Environmental ConditionsOperating Temperature: -10°C to 50°CHumidity Range: Up to 90% RHElectrical and CompatibilityConnector Wire Length: 300mmCable Colors:Red: Power ( )Brown: Ground (-)Orange: Signal (PWM Input)Compatible Controllers: Arduino, Raspberry Pi, STM32, and other microcontrollersDurability and SafetyProtection Features: Overload and Overheat ProtectionLifespan: Rated for over 500,000 cycles under standard operating conditionsIncluded AccessoriesServo Horns: 1 x Straight Horn, 1 x Circular Horn, 1 x X-Shaped HornMounting Screws: 4 x Metal ScrewsRubber Grommets: 4 x Rubber Cushions for Shock AbsorptionApplicationsRobotic ArmsRemote-Controlled (RC) VehiclesMechanical PrototypingAutomation ProjectsVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP https://lk-tronics.com/wp-content/uploads/2021/10/LKMOT00003-MG996R-Metal-Gear-motor-edited.mp4 SKU: LKMOT00003 Categories: Motors, Servo Motors Tags: HIGH TORQUE, Metal Gear High Torque Servo Motor Digital, MG996R, MG996R Metal Gear High Torque Servo Motor Digital, Servo Motor
