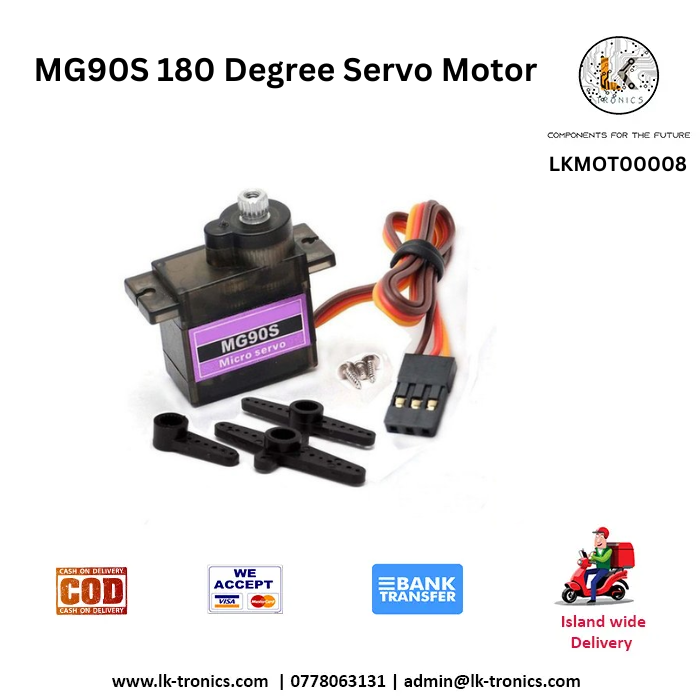

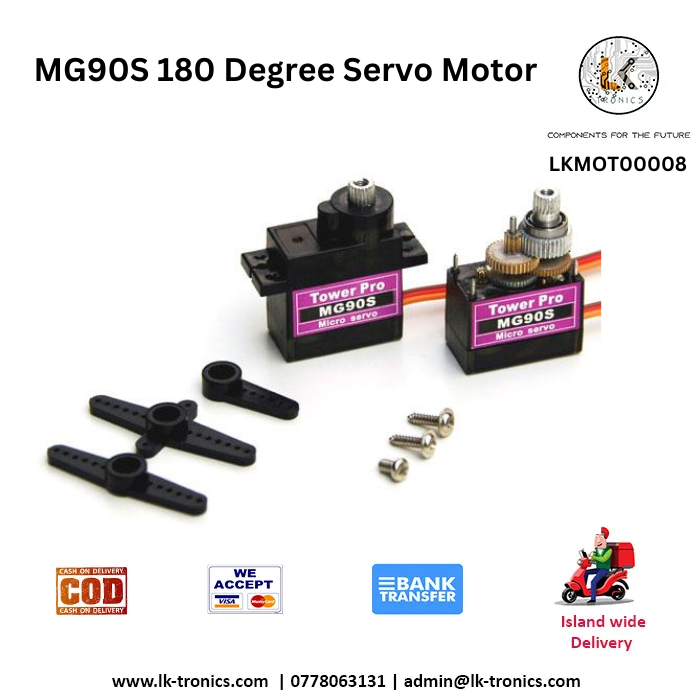

MG90S 180 Degree Servo Motor

MG90S 180 Degree Servo MotorSpecifications:Model: MG90SMotor Type: Servo Motor (180-degree rotation)Electrical Specifications:Operating Voltage: 4.8V to 6.0V DCStall Torque:At 4.8V: 1.8 kg·cm (25 oz·in)At 6.0V: 2.2 kg·cm (30.5 oz·in)Operating Speed:At 4.8V: 0.10 sec/60°At 6.0V: 0.08 sec/60°Mechanical Specifications:Max Angle: 180 degreesGear Type: heavy PlasticConnector Wire Length: Approximately 150mmServo Dimensions: 22.8mm × 12.2mm × 28.5mm (L×W×H)Weight: 13.4g (0.47oz)Control Specifications:Pulse Width Control:Pulse width range: 500μs to 2400μsNeutral position: 1500μsPWM Frequency: 50HzPhysical Build:Bearing: Single Ball BearingShaft Type: 25T spline outputOperating Conditions:Temperature Range: -30°C to 60°CHumidity: 40-90% SKU: LKMOT00008 Categories: Motors, Servo Motors
