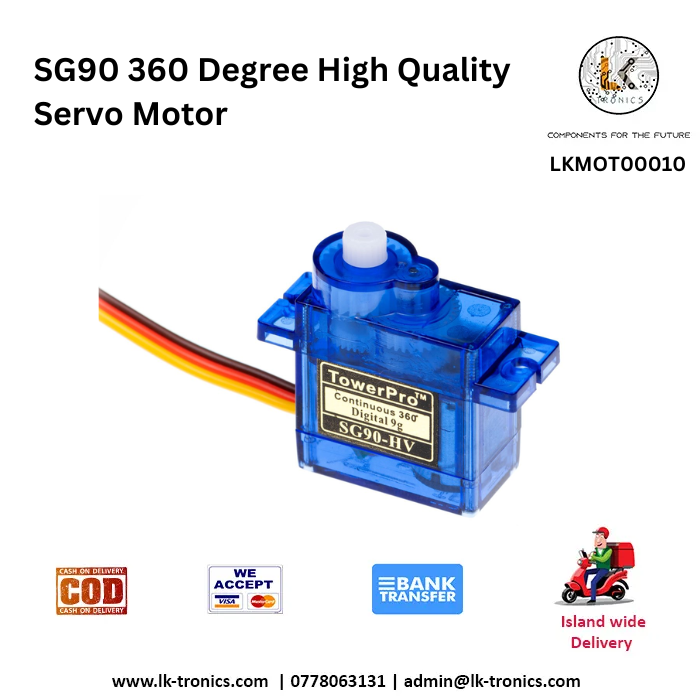

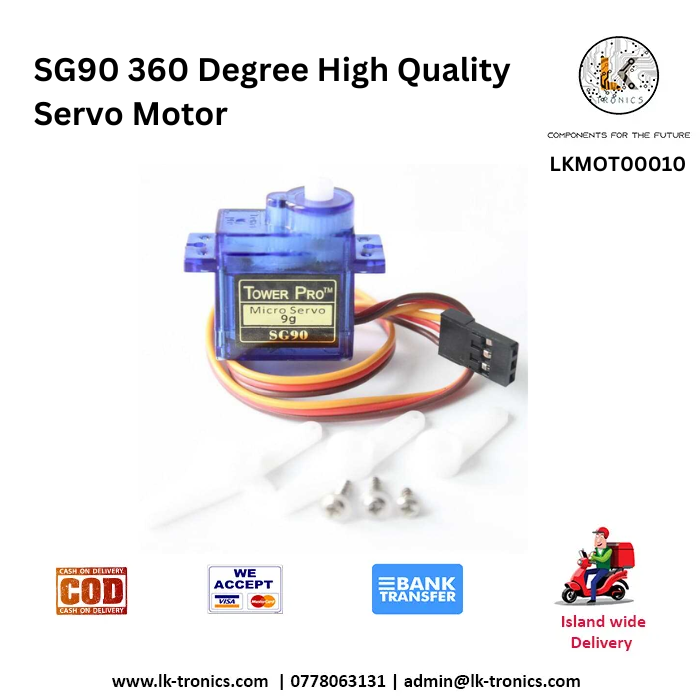

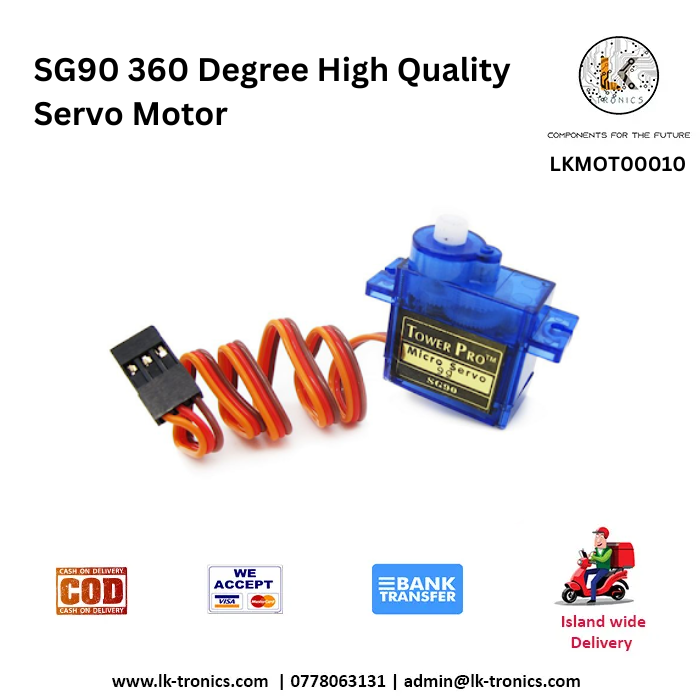

SG90 360 Degree High Quality Servo MotorThe SG90 360 Degree High Quality Servo Motor is a lightweight 9g micro servo with continuous rotation, making it ideal for robotics, RC models, and DIY electronics. Offering smooth and precise movement, it’s a reliable choice for various motion control projectsSpecifications:Model: SG90 360-Degree Continuous Rotation Servo MotorType: Continuous rotation servo motorOperating Voltage: 4.8V – 6VStall Torque:1.8 kg·cm (at 4.8V)2.2 kg·cm (at 6.0V)Speed:0.12 sec/60° (at 4.8V)0.10 sec/60° (at 6.0V)Working Temperature: -30°C to 60°CDimensions: 22.2mm x 11.8mm x 31mm (LxWxH)Weight: 9gConnector Type: 3-pin with PWM (pulse width modulation) signalRotation Range: 360 degrees continuousControl System: PWM controlDead Band Width: 7 μsHorn Type: 25-tooth splines (used for connecting various types of horns)Bearing Type: No bearing (bushing type)Material: Plastic casing, Nylon gearsCable Length: 25 cmOperating Current: 100 mA – 250 mA (no load to full load)Signal Pulse: 1.5ms (neutral position, motor stops rotating), pulses >1.5ms (clockwise rotation), pulses <1.5ms (counter-clockwise rotation)Features:Continuous Rotation: The motor can rotate continuously in both directions, making it suitable for drive wheels or continuous movement applications.Lightweight: Weighs only 9 grams, which makes it ideal for small projects such as robots or remote control vehicles.PWM Control: The direction and speed of the rotation can be controlled using standard RC servo signals.Durable: Nylon gears offer a balance between cost and durability for most low-load applications.VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMOT00010 Categories: Motors, Servo Motors Tags: Arduino, Arduino sensors, DIY Kits, Robot, Robotics
