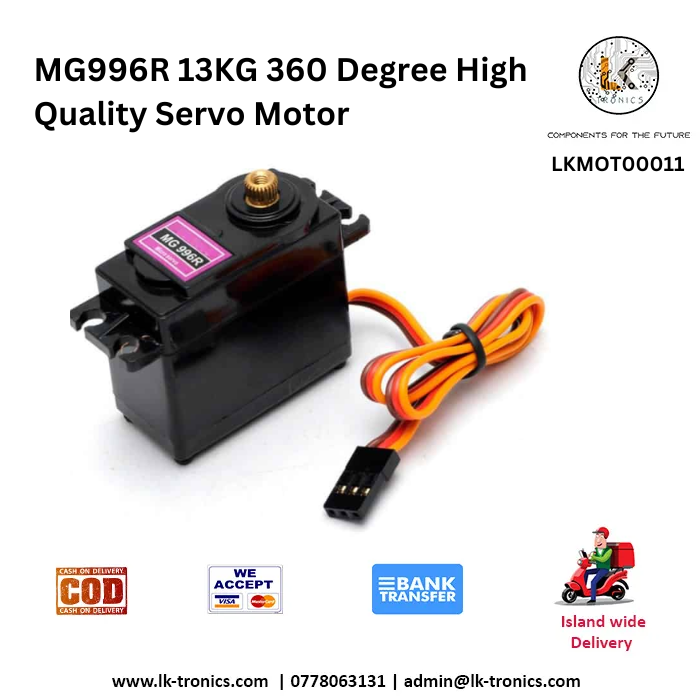

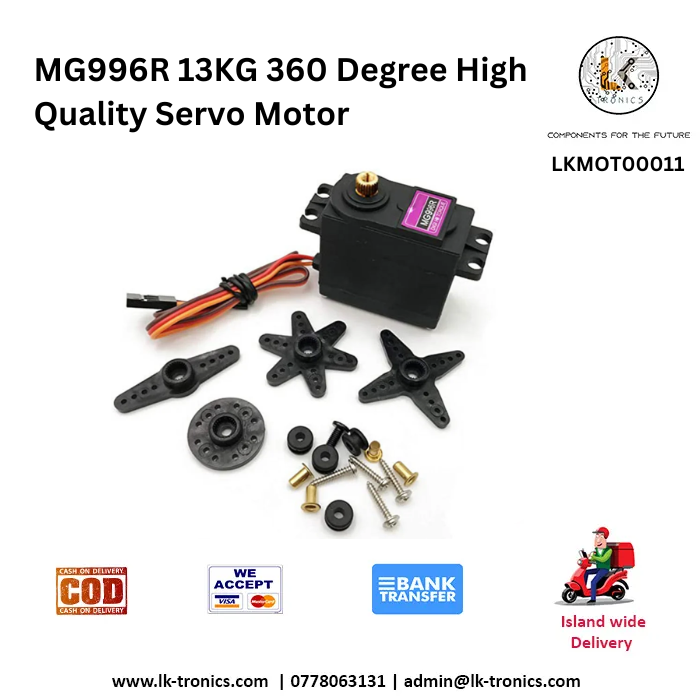

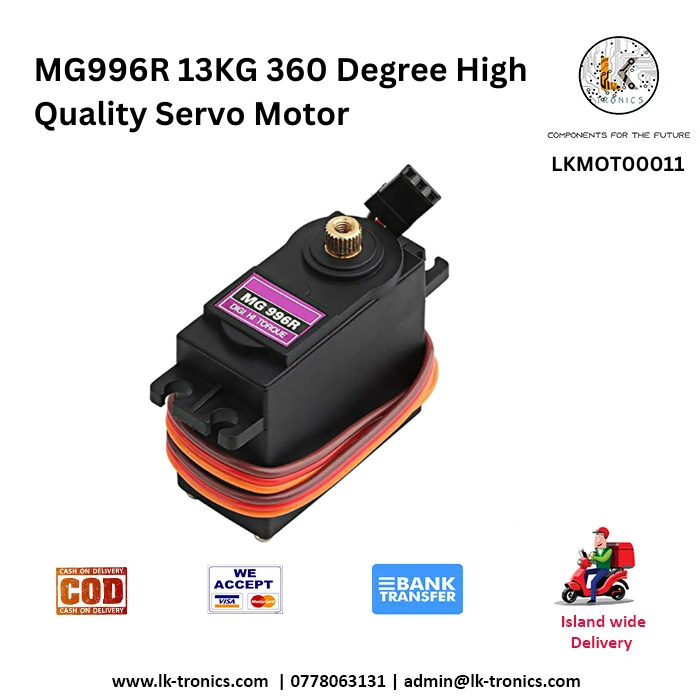

MG996R 13KG 360 Degree High Quality Servo Motor

MG996R 13KG 360 Degree High-Quality Servo MotorThe MG996R 360 Degree High-Quality Servo Motor delivers a powerful 13kg torque with continuous rotation, perfect for heavy-duty robotics and RC applications. Featuring durable metal gears and precise control, this servo motor ensures reliable performance in demanding projects.Specifications:Model: MG996RType: Continuous rotation (360-degree) servoTorque:Stall Torque (4.8V): 9.4 kg·cmStall Torque (6.0V): 11 kg·cmStall Torque (6.6V): 13 kg·cm (max)Rotation Range: 360 degrees (continuous)Operating Voltage: 4.8V – 7.2VSpeed:At 4.8V: 0.19 sec/60 degreesAt 6.0V: 0.14 sec/60 degreesGear Type: Metal gearsBearing: Dual ball bearingsMotor Type: DC MotorWeight: 55gElectrical & Performance:Idle Current: 10mA at 6.0VOperating Temperature: -30°C to 60°CDead Band Width: 1us (narrower deadband for finer control)Physical Dimensions:Size (L x W x H): 40.7mm x 19.7mm x 42.9mmWire Length: 300mm (approx.)Connector Type: Standard 3-wire (PWM controlled)Red Wire: Power (4.8V – 7.2V)Brown Wire: GroundOrange/Yellow Wire: PWM signalPWM Signal Requirements:Pulse Width: 500µs to 2500µs (for continuous rotation control)Control System: Pulse Width Modulation (PWM)PWM Refresh Rate: 50HzApplications:RoboticsRC Vehicles (cars, boats, helicopters)Automation ProjectsPan/Tilt MechanismsDIY servo-driven mechanismsVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMOT00011 Categories: Motors, Servo Motors Tags: Arduino, Arduino sensors, DIY Kits, Drone parts, Robotics
