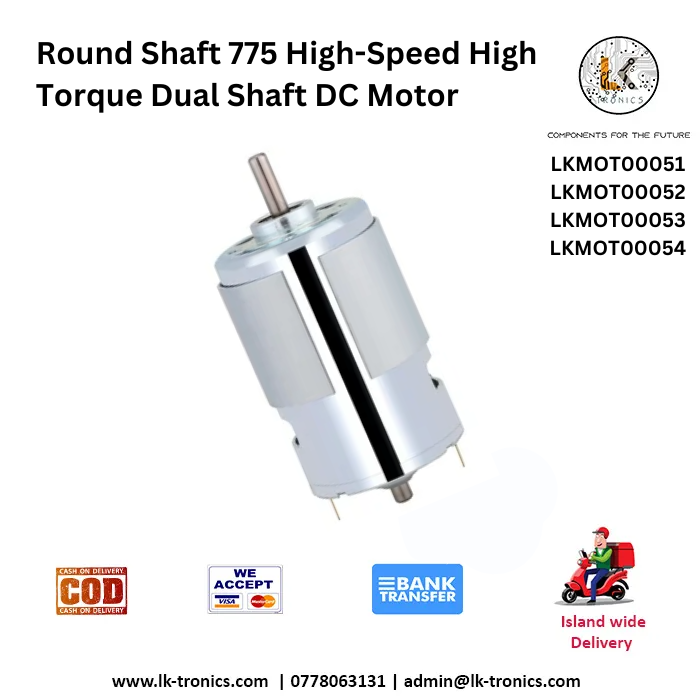

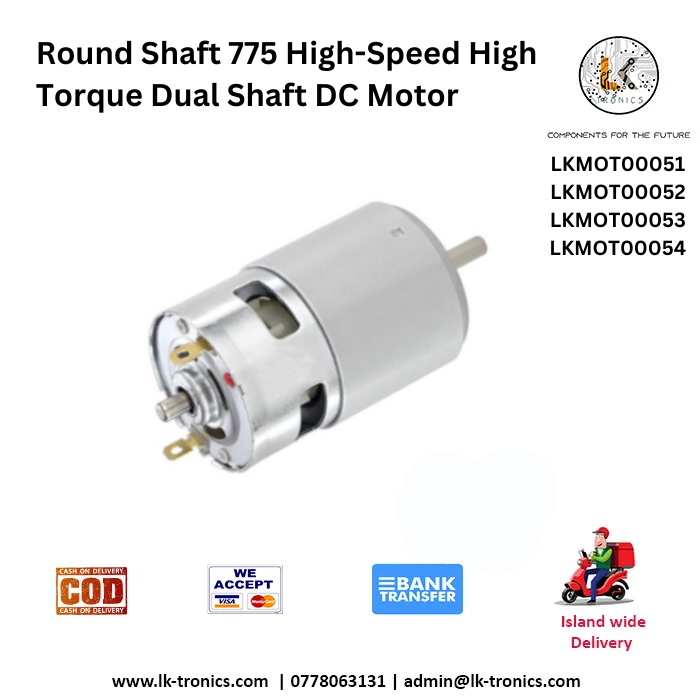

Round Shaft 775 High-Speed High Torque Dual Shaft DC Motor 12V 6000RPM | 12V 10000RPM | 12V 12000RPM | 24V 10000RPM

Round Shaft 775 High-Speed High Torque Dual Shaft DC MotorThe 775 Dual Shaft Motor is popular in various DIY and industrial applications due to its high speed and torque.Specifications:Motor Type: Brushed DC MotorShaft Type: Dual Shaft (can have both front and rear shafts)Shaft Diameter: 5 mm (can vary slightly)Motor Body Diameter: 42 mm (standard 775 motor size)Motor Length: Approximately 70 mmMounting Hole Distance: 30 mm (approximately)Electrical Specifications:Voltage Range: 6V to 24V DC (can vary by model)Nominal Voltage: 12V or 24V DC (commonly used voltages)No-Load Speed (12V): 8,000 – 12,000 RPM (can vary)No-Load Speed (24V): 16,000 – 24,000 RPM (can vary)Stall Current (12V): 6A to 10A (approximate)Stall Torque (12V): Around 1.2 Nm or higherMechanical Specifications:Output Shaft Length: Typically around 18 – 20 mm (can vary)Shaft Type: Round (with or without a flat side for set screws)Bearing Type: Ball bearings or sleeve bearingsRotation: CW/CCW (clockwise and counterclockwise)Performance:Rated Torque: High torque, capable of handling moderate to heavy loads depending on the voltageEfficiency: Generally high for brushed motorsCooling: Usually air-cooled, with vent holes at the backVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: N/A Categories: DC Motors, Motors Tags: DIY Kits, Robotics, Stepper Motor Driver
