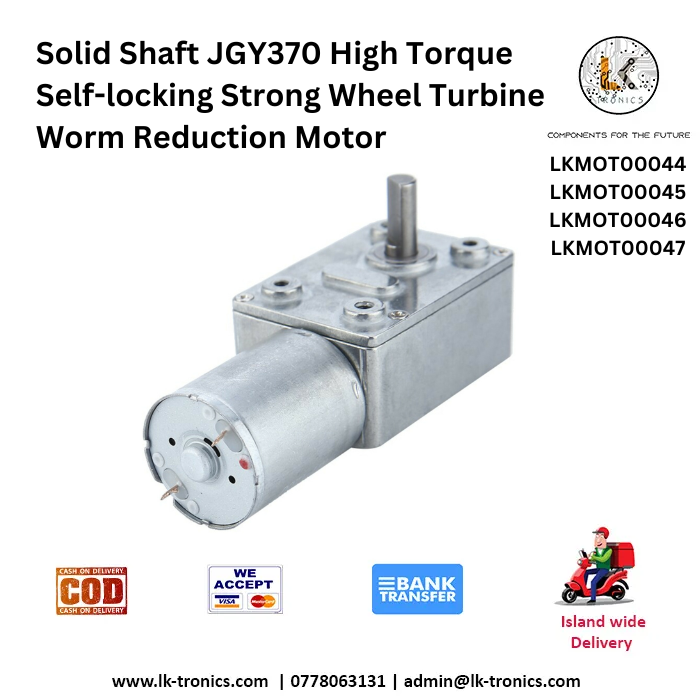

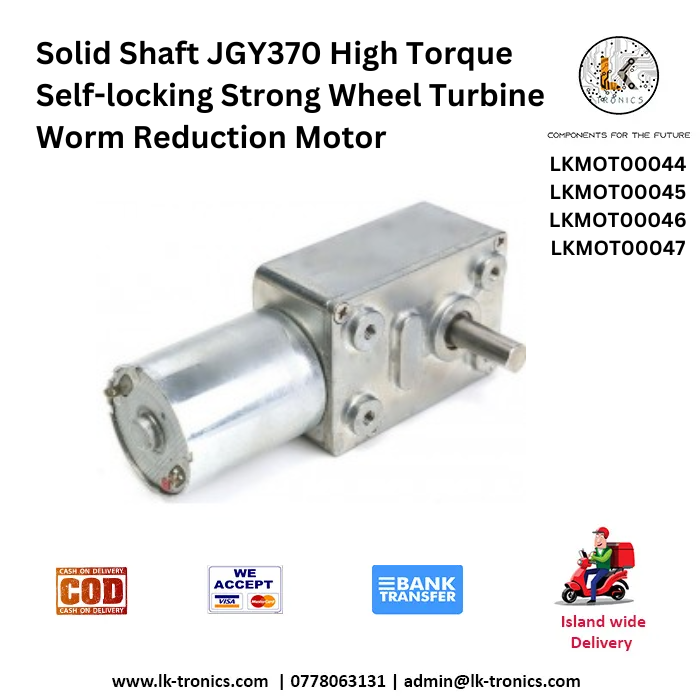

Solid Shaft JGY370 High Torque Self-locking Strong Wheel Turbine Worm Reduction MotorThe JGY370 High Torque Self-locking Worm Gear Reduction Motor is widely used for projects requiring high torque at low speeds. It features a worm gear mechanism that provides self-locking capabilities, which means the motor won’t back drive when powered off.Specifications:Motor Type: Brushed DC Motor with Worm Gear ReductionShaft Type: Solid Shaft (some models have solid or D-shaped shafts)Shaft Diameter: 6 mmShaft Length: Typically 10 – 25 mm (depending on the specific model)Motor Size (Body): 32 mm diameter, approximately 56 mm lengthElectrical Specifications:Voltage Range: 6V to 24V DC (common models use 6V, 12V, or 24V)Nominal Voltage: 12V DC (most commonly used voltage)No-Load Speed (depending on gear ratio):6 RPM, 10 RPM, 15 RPM, 20 RPM, 30 RPM, 60 RPM, 100 RPM, 200 RPM, 300 RPM, etc.Speed depends on the gear ratio (typically ranges from 1:10 to 1:1000)Stall Current (12V): 0.3A to 2A (depending on load and model)Stall Torque (12V): 10 – 50 kg·cm (varies by model)Gearbox Specifications:Gear Type: Worm Gear (provides self-locking feature)Reduction Ratio: Common ratios are 1:10, 1:30, 1:50, 1:100, and 1:300Self-Locking: Yes (due to the worm gear mechanism)Mechanical Specifications:Output Shaft: Hollow Shaft (sometimes available with D-shaft or round shaft)Shaft Material: Typically steelWeight: Approximately 150g – 200gPerformance:Torque Output: High torque at low speeds (depends on gear ratio)Efficiency: Moderate due to worm gear mechanicsSelf-Locking: Worm gear offers strong self-locking for load holding when power is offNoise Level: Relatively lowRotation: CW/CCW (clockwise and counterclockwise)Applications:Used in projects like:DIY robotics and automationWheel drives for small robotsWindow and door actuatorsCamera pan/tilt systemsAutomatic curtains and gates VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: N/A Categories: DC Motors, Motors Tag: motor
