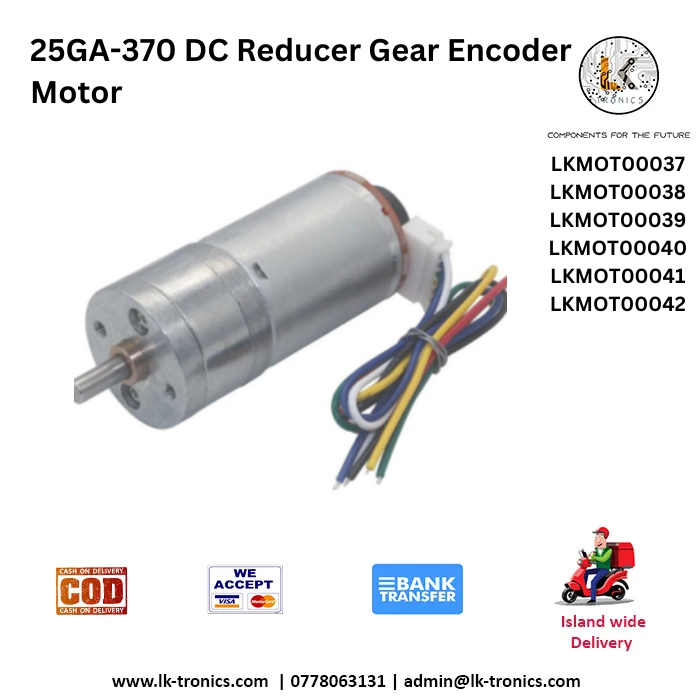

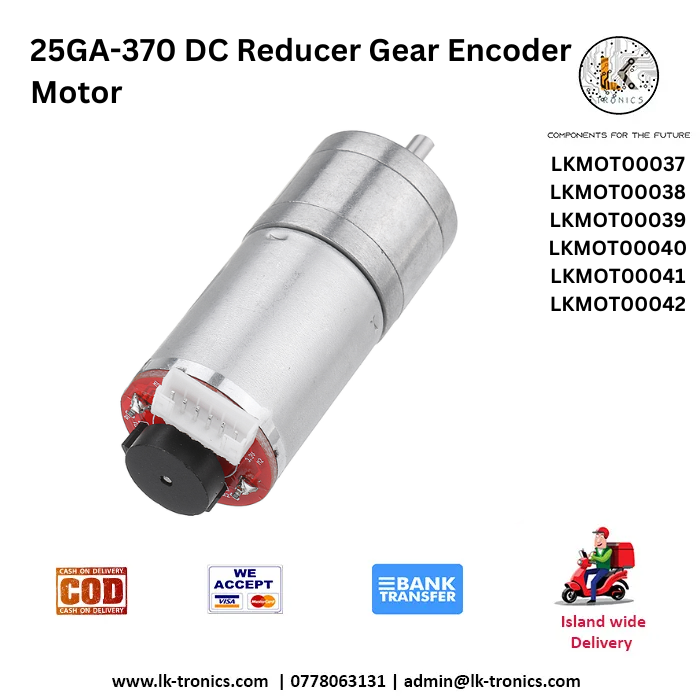

25GA-370 6V/12V/24V 35RPM/60RPM/150RPM/200RPM DC Reducer Gear Encoder Motor
$29.4
$39.4
25GA-370 6V/12V/24V 35RPM/60RPM/150RPM/200RPM DC Reducer Gear Encoder MotorThe 25GA-370 DC Reducer Gear Encoder Motor is a high-performance, compact motor, perfect for robotics and automation projects where precise speed and position control are essential. With an integrated gearbox for torque enhancement and a built-in encoder for real-time feedback, this motor ensures reliable performance in demanding applications.Key Features:Motor Type: Brushed DC motor with an encoder and gearbox.Shaft Options: Available with round or D-shaped shaft (depending on model).Shaft Diameter: 4 mm.Motor Dimensions: Diameter of 25 mm, with a length ranging from 70 mm to 90 mm based on the model.Weight: Between 150 g and 200 g, depending on the gear ratio.Electrical Specifications:Voltage Range: Operates between 6V to 24V DC.Nominal Voltage: Typically used with 12V or 24V DC.No-Load Speeds: Varies by gear ratio – available options include 6 RPM, 12 RPM, 30 RPM, 60 RPM, 150 RPM, 300 RPM, and more.No-Load Current: 100mA to 300mA depending on the gear ratio.Stall Current: Around 1.2A to 2A at 12V.Stall Torque: Up to 10-20 kg·cm at 12V (depending on gear ratio).Gearbox Specifications:Gear Type: Spur gear reduction.Reduction Ratios: Choose from common ratios such as 1:10, 1:20, 1:30, 1:50, 1:100, 1:150, etc.Self-Locking: No (spur gears lack self-locking capabilities).Encoder Specifications:Encoder Type: Magnetic or optical incremental encoder.Resolution: Typically 11 pulses per revolution (PPR), with higher resolutions available in some models (e.g., 64 or 512 PPR).Channels: 2-channel quadrature output (A and B signals for speed and direction detection).Output Type: Open-collector or push-pull depending on the model.Performance Highlights:Torque Output: High torque at low speeds, adjustable by gear ratio.Precise Control: Encoder feedback ensures precise speed and position control.Rotation: Supports both CW (clockwise) and CCW (counterclockwise) rotations.Efficiency: Efficient performance depending on load and gear ratio.Applications:The 25GA-370 DC Gear Motor with Encoder is perfect for:Robotics requiring accurate movement and feedback.Automated systems needing position control (e.g., conveyor belts and linear actuators).Small vehicles, camera pan/tilt systems.DIY and hobby projects where rotation feedback is crucial.Why Choose the 25GA-370?Precision Torque & Speed Control: Gearbox offers torque amplification, and the encoder provides real-time position feedback.Versatile: Ideal for various applications in robotics and automation.Reliable Performance: Engineered for high efficiency and precise control, making it ideal for feedback-based systems like PID control.VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: N/A Categories: DC Motors, Motors Tags: Arduino, DIY Kits, precision control, Robot
