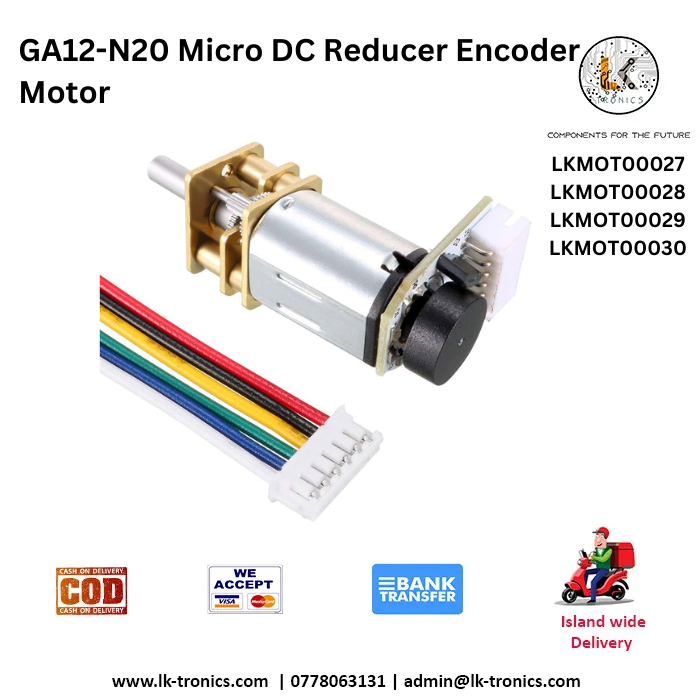

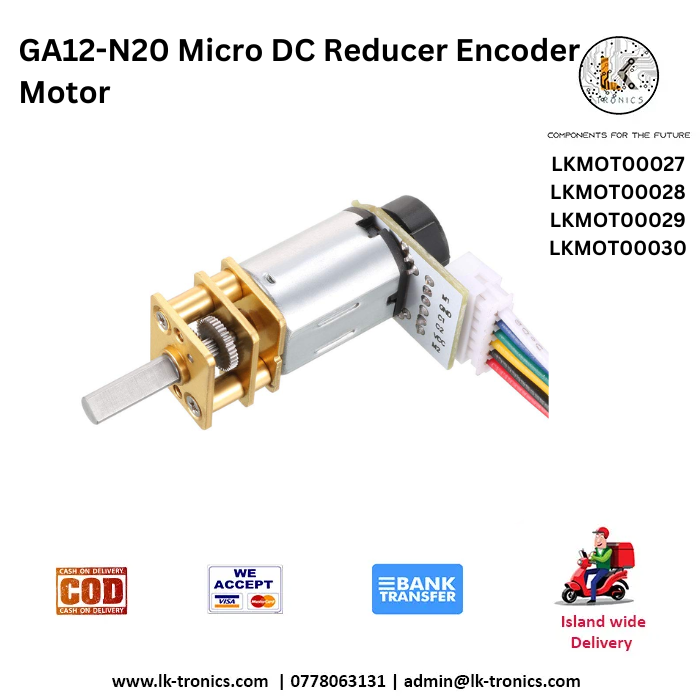

GA12-N20 Micro DC Reducer Encoder Motor 3V 50RPM | 3V 100RPM | 6V 50RPM | 6V 100RPM
$34.75
$63.59
GA12-N20 Micro DC Reducer Encoder MotorThe GA12-N20 Micro DC gear motor is a small DC motor with a gear reduction mechanism.Specifications:DC Reducer Encoder MotorMotor Type: DC Motor with Gear Reduction and EncoderGear Ratio Options: Commonly available in 10:1, 30:1, 50:1, 100:1, 300:1, etc.Operating Voltage: Typically 3V to 12V (varies depending on the model)No-load Speed: Dependent on gear ratioRated Torque: Depending on gear ratio, typically around 0.1 kg. cm to 1.5 kg. cmShaft Diameter: 3 mmShaft Length: 10 mmShaft Type: D-shapedEncoder: Some models come with an optical or magnetic encoder for feedback, typically two channels (A and B) for speed and direction sensing.Electrical Characteristics:No-load Current: 30 mA to 150 mAStall Current: Can be around 500 mA to 1A at 6VStall Torque: Up to 2.5 kg. cm (varies based on gear ratio)Physical Dimensions:Motor Size: 12 mm diameterMotor Length: Around 15 mm to 20 mm (varies by gear type)Gearbox Length: 10 mm to 30 mm (varies by gear ratio)Encoder Details (if present):Resolution: Typically 11 counts per revolution of the motor shaft (depending on the encoder model)Output: Quadrature output (two signals A and B for direction and speed)VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: N/A Categories: DC Motors, Motors Tag: motor
