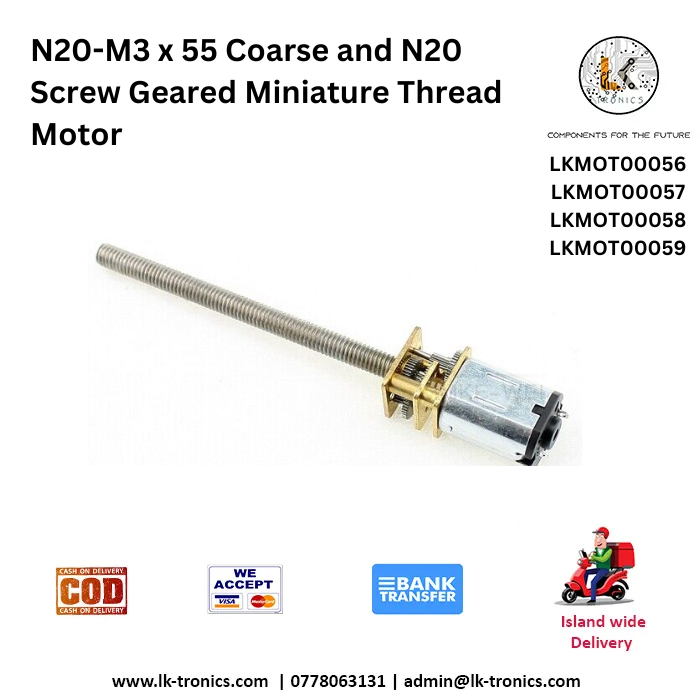

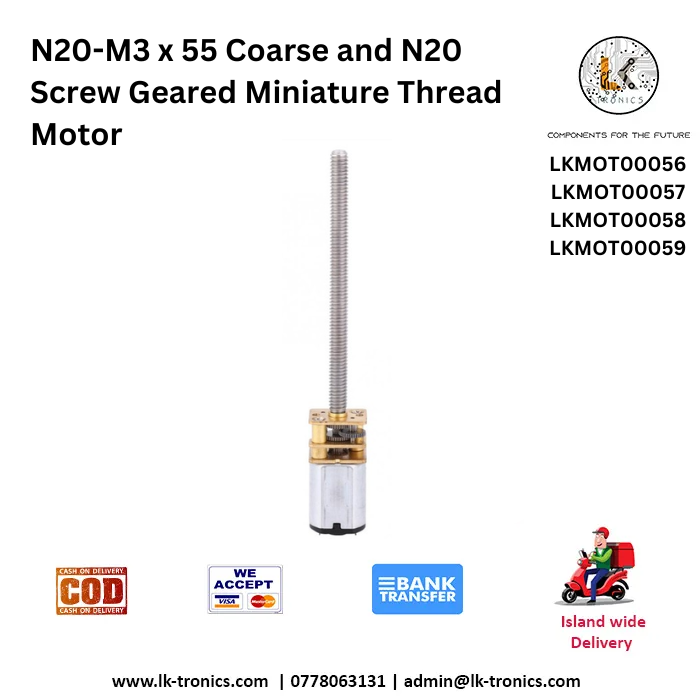

N20-M3 x 55 Coarse and Thread Motor 3V 60RPM | 3V 200RPM | 12V 100RPM | 12V 200RPM

N20-M3 x 55 Coarse and Thread Motor 3V 60RPM | 3V 200RPM | 12V 100RPM | 12V 200RPMSpecificationsThis motor is a combination of an N20 motor with a lead screw (M3 x 55 mm), commonly used in small linear motion applications such as robots and precision devices.Motor Type: N20 miniature motor with an attached lead screw.Lead Screw Specifications:Type: M3 x 55 mm coarse threaded screw.Length: 55 mm.Thread Pitch: Coarse pitch (specific pitch may vary, typically 0.5 mm).Voltage: Typically 3V – 12V DC.Reduction Ratio: Can vary (e.g., 1:30, 1:50, 1:100 depending on the gear model).Output Shaft Speed: Depends on the gear reduction, but typical speeds range from 30 RPM to 200 RPM.Torque: High torque due to the gear reduction (specific torque varies depending on gear ratio).Screw Type: Coarse M3 screw for linear actuation.Weight: Lightweight, typically around 10-20 grams.N20 Geared Miniature Motor (General Specs):This is a common DC motor with a gearbox for high torque and low RPM, widely used in robotics and small automation applications.Motor Size: 12 mm x 10 mm x 26 mm.Rated Voltage: 3V – 12V DC (common variants are rated for 6V or 12V).Gear Ratio: Options include 1:30, 1:50, 1:100, 1:150, and 1:1000 (depending on the specific model).Stall Torque: Can range from 10 g.cm to 1000 g.cm depending on gear ratio and voltage.Current:No-load: ~30 mA (at 6V).Stall current: ~300-500 mA (at 6V).Operating Temperature: -10°C to 60°C.Weight: Around 10-15 grams depending on the model.VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: N/A Categories: DC Motors, Motors
