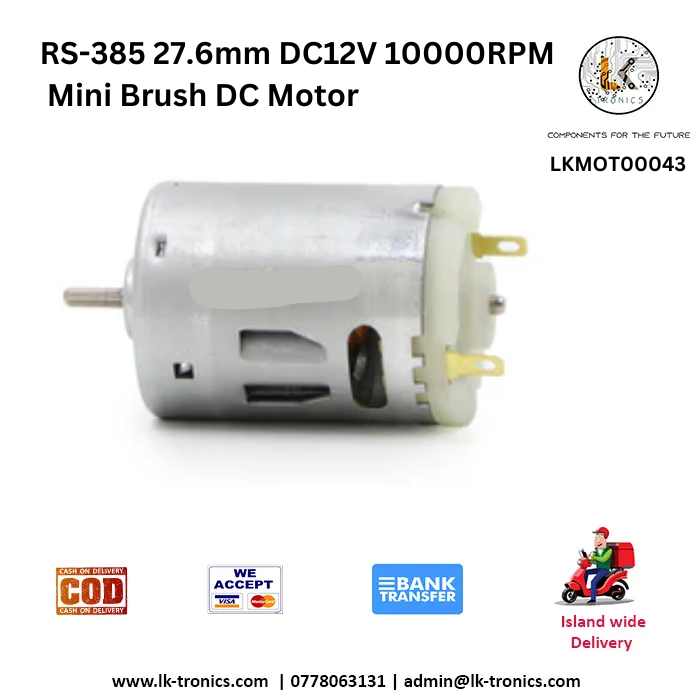

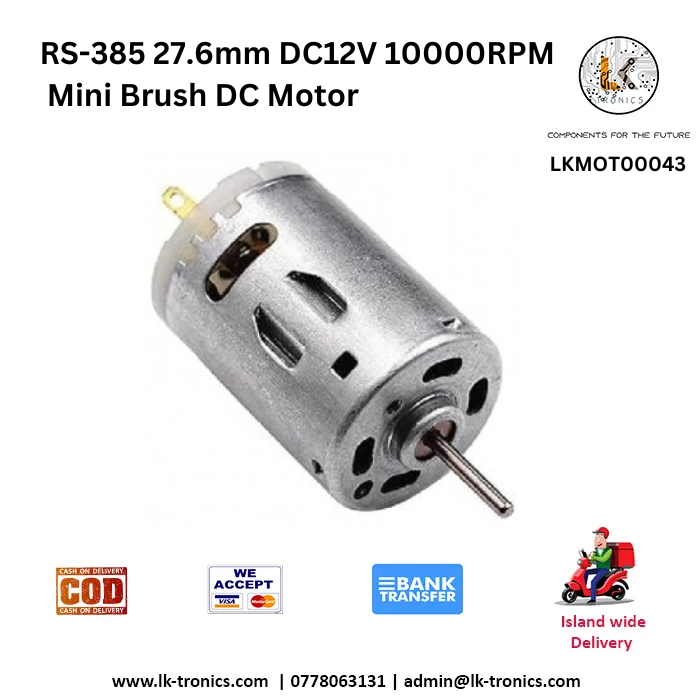

RS-385 27.6mm DC12V 10000RPM Mini Brush DC MotorDiscover the power of the 10000RPM Mini Brush DC Motor. Ideal for various applications, this compact motor delivers high performance and efficiency for your projects.Specifications:Model Number: RS-385Type: Mini Brush DC MotorDiameter: 27.6 mmLength: Approximately 45 mm (varies by design)Weight: About 60 gramsElectrical Specifications:Rated Voltage: 12V DCNo-Load Speed: 10,000 RPM (at 12V)No-Load Current: Typically around 0.25A to 0.5AStall Torque: Approximately 0.25 to 0.4 Nm (varies by load conditions)Stall Current: Can reach up to 20A (briefly)Performance Characteristics:Efficiency: Generally high efficiency (around 80% under optimal load)Torque vs. Speed: Torque decreases as speed increases; this can be plotted on a characteristic curve.Operating Temperature Range: Typically -20°C to 60°CMechanical Specifications:Shaft Diameter: around 2.30 mm (1/8 inch) (may vary slightly)Shaft Length: Usually around 20 mm (may vary by design)Gear Ratio: If geared, specific gear ratios may apply (check individual product specifications).Application Areas:Robotics: Suitable for small robots and automation applications.Model Making: Ideal for model cars, boats, and other small-scale applications.Small Appliances: These can be used on various small electric devices.VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMOT00043 Categories: DC Motors, Motors
