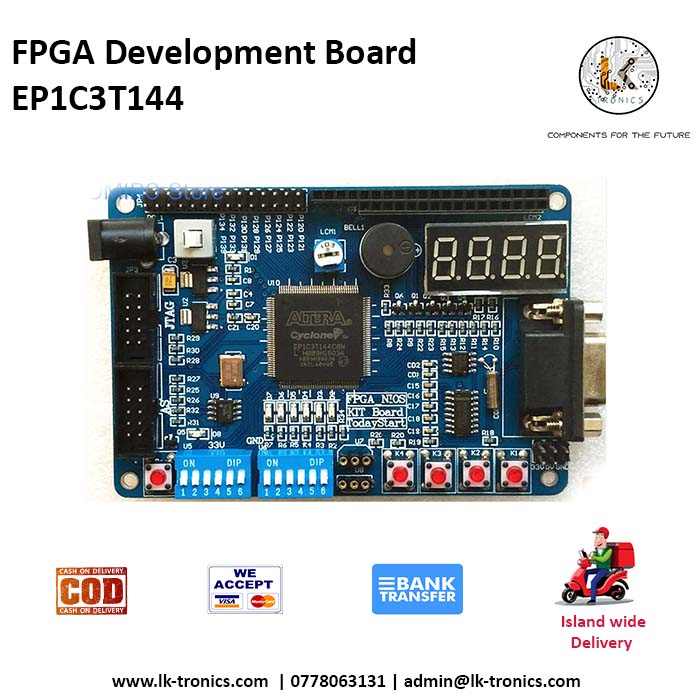

FPGA Development Board EP1C3T144C8N | Altera Cyclone | Sri LankaThe EP1C3T144 FPGA Development Board features the Altera Cyclone I chip—perfect for digital system design, VHDL, and Verilog practice in Sri Lanka.Altera’s Cyclone series EP1C3T144 board:1：the main chip: using Altera’s Cyclone series EP1C3T144C8N2：With 4 independent keys,3：Four digital tube: Learning digital static and dynamic scanning display technology. Can do electronic clock, frequency counter, counters and other experiments.4：Six LED lights do flowing water lights and other lamp experiments, but also as a status display of a device.5：Eight-way DIP switch: used to make two-way or multi-channel digital logic circuit experiment6：Clock: Use 50MHZ active clock,7：Infrared receiver IC receiver using VS1838 so doing infrared receiver experiment, scalable infrared remote control keypad.8：Temperature sensor DS18B20 Interface: Learning “bus line,1-Wire” communications, do thermometer, temperature alarm device.9：Buzzer: do experimental music accompaniment, alarm sounding and so on.10：Serial processing MAX232: This as synchronous and asynchronous serial communications level converter, do synchronous and asynchronous serial communication experiment11：DS1302 clock modules: can be used to develop electronic clock, calendar with battery backup, so the clock kept forever.12：With 16-pin LCD interface13：FPGA configuration module use a large-capacity memory chips EPCS4, boards with reconfiguration button.14：AS and JTAG download interface: You can download the program directly to the JTAG interface to the FPGA chip, or have the program downloaded to the AS-interface memory chip, to achieve power-down data is not lost.15：IO expansion port: In addition to the development of the IO board module used, the card with pin leads 28 IO, can be extended to use other external devices.Altera FPGA CPLD USB Blaster programmer:1：Fully compatible with original Altera USB-Blaster.2：Supported target voltage : 2.0V-5.5V3：Support all ALTERA deveice.4：CPLD：MAX 3000A、MAX 7000A、MAX 7000B、MAX 7000S、MAX 9000、MAX 9000A and MAX II.5：FPGA：Stratix、Stratix II、Stratix GX、Cyclone、Cyclone II、Cyclone III、ACEX 1K、APEX II、APEX 20K、APEX 20KE、APEX 20KC、FLEX 10K、FLEX 10KE、FLEX 10KA、FLEX 6000、FLEX 8000、EPCS1、EPCS4、EPCS16、EPCS64，EPC1、EPC4、EPC8、EPC166：Support：JTAG, AS, PS Mode.7：Support NiosII embeded core based debug,；8：Supports Quartus II SignalTap® II Logic Analyzer (for logic analysis)9：High performance,10：USB interface with status and Power LED.Package Content:1 x Cyclone Altera FPGA EP1C3T144 Development Learning BoardVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMIC00024 Categories: FPGA Development Board, Microcontrollers
