$22.93
$31.41

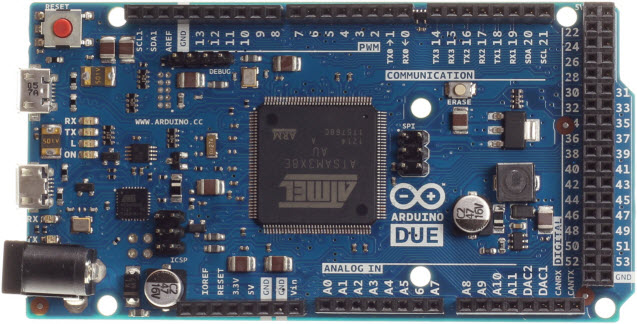

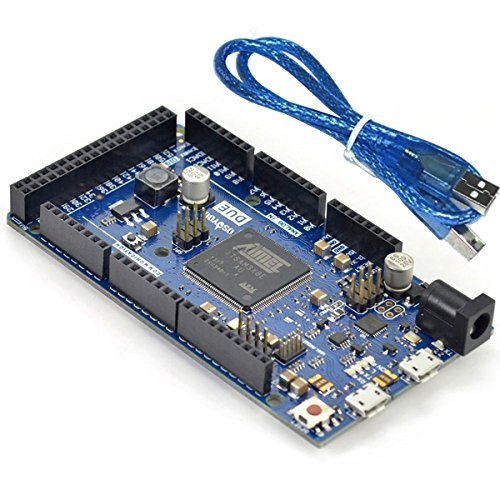

Buy Arduino DueThe Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.ARDUINO DUE Pin ConfigurationPIN GROUPPIN NAMEDESCRIPTIONPOWER SOURCE 5V, 3.3V, GND and Vin 5V – Connected to 5VOR 3.3V- Connected to 3.3VORVin- Connected to 7V to 12VGND – Connected to GROUNDCOMMUNICATION INTERFACEUART Interface(RXD, TXD) x 4 [(0,1),(19,18),(17,16),(15,14)] SPI Interface(MOSI, MISO, SCK ,RESET) x 1TWI Interface(SDA, SCL) x 2 [(20,21),(70,71)] CAN Interface (CANRX , CANTX) x2 SSC Interface (RF, RD, RK, TD, TK, TF)UART (Universal Asynchronous Receiver Transmitter) Interface can be used to program PRO MINISPI (Serial Peripheral Interface) Interface ban be used to program PRO MINITWI (Two Wire Interface) Interface can be used to connect peripherals. CAN (Controller Area Network) Interface can be used for communication between controllers. SSC(Synchronous Serial Communication) Interface can be used for Audio and Telecom ApplicationsINPUT OUTPUT PINS42 I/O 12 PWMAlthough these 54 pins have many functions they can be considered as data I/O pins.ANALOG to DIGITAL CONVERTERADC0, ADC1, ADC2,…ADC11These channels can be used to input Analog signals. There are of 12 bit resolution.DIGITAL to ANALOG CONVERTERDAC0, DAC1There are two channels which can provide Analog output. They are of 12 bit resolution.PWMPIN2 to PIN13These 12 channels can provide PWM (Pulse Width Modulation) outputs. They are of 8 bit resolution.RESETRESETResets the controller.EXTERNAL INTERRUPTSAll I/OIn DUE board all I/O pins can be used as Interrupts.TEMPERATURE SENSORConnected to ADC15 internally.DUE has internal Temperature sensor which can be programmed to read temperature.REAL TIME CLOCKINTERNALDUE has RTC with CALENDER and ALARM features which can be enabled internally. ARDUINO DUE Technical SpecificationsMicrocontrollerSAM3X8E – 32 BIT ARM controllerOperating Voltage3.3VRaw Voltage input7V to 12VMaximum current through each I/O pin3mA & 15mA look pin diagram for detailsMaximum total current drawn from all I/O pins130mAFlash Memory512KBytesEEPROM16KByteInternal RAM96KbytesClock FrequencyInternal : 12 MhzExternal: 84 MhzOperating Temperature-40ºC to 85ºC Similar ARDUINO BOARDSARDUINO UNO, ARDUINO MEGA, ARDUINO NANO, ARDUINO PRO MINI, ARDUINO LEONARDOOther Development BoardsRASPBERRY PI SERIES, INTEL GALILEO, INTEL EDISON, ESP32 Where to use ARDUINO DUEAlthough ARDUINO boards are usually popular, DUE is least popular because of controller being ARM and I/O pins 3.3v OUTPUTS are not compatible with most sensors. Though it is least popular it is most recommended when designing complex systems like CNC or 3D printer. Also the ARDUINO DUE is an open source platform where one can get all related data and original module schematics. So you can customize the system depending on the need.There are few cases where DUE is chosen over others:Case1: Where the system processing is huge. UNO or NANO are boards all have a maximum clock speed of 16 MHz, so they can perform functions limited to their capabilities. They cannot process high end programs for applications like 3D printer. With 84MHz clock speed more than five times speed of UNO, DUE could do process more data than UNO or NANO.Case2: Where you need to connect more peripherals. DUE has over 54 I/O pins. So when there are many peripherals in an application using DUE is ideal.Case3: Where application needs to provide analog output. UNO and NANO cannot provide analog output which is need in some applications. In those cases DUE will solve the problem.Case4: With many PWM and ADC outputs, DUE can run application program which cannot be solved by other ARDUINO.Case5: With CAN interface DUE can be used on systems with high Electromagnetic Interference where other communications may fail. This facility is not present on other ARDUINO BOARDS. How to use ARDUINO DUEDUE is used similar to any other development board. All that needs to be done is programming the controller and provide the appropriate peripheral to get system running. We will discuss the programming of DUE in step by step below.DUE can be programmed by connecting both USB ports to PC. Although there are two, PROGRAMMING PORT is preferred over NATIVE USB port in order to avoid controller crashing during programming. So connect DUE to PC using PROGRAMMING port is ideal.Download and install ARDUINO IDE software. [ https://www.arduino.cc/en/Main/Software ]Next get the link between PC and DUE. Run a test program to blink LED provided on board.List the functions to be performed by DUE.Write the functions as program in IDE.Remember for ARDUINO IDE the program is written in ‘C’ language.After completing the writing. Burn the program to DUE through IDE.Disconnect the programmer. Provide the power and attach the necessary peripherals. After resetting the controller, it executes the program and provides the desired output. ApplicationsHobby projects.Power supply systems.IoT applications.Display systems.Instrumentation. ARDUINO DUE DimensionsData Sheet of Arduino DUE – https://components101.com/sites/default/files/component_datasheet/Arduino Due Datasheet.pdf SKU: LKMIC00004 Categories: Arduino, Microcontrollers Tags: Arduino, Buy Arduino Due, DUE
