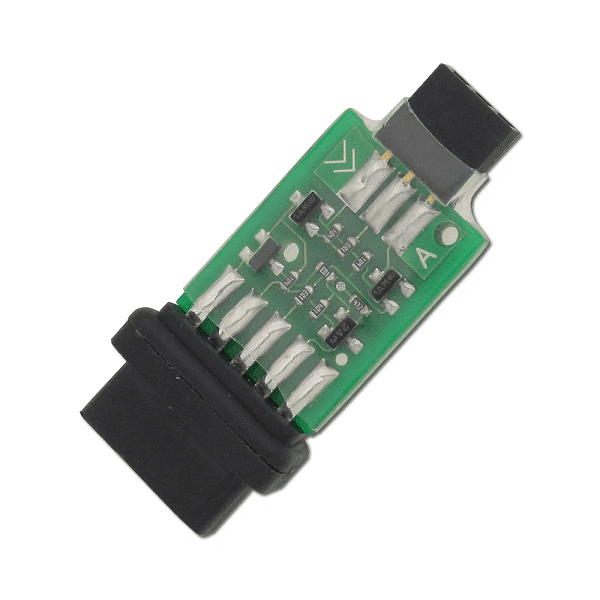

Product Description BASIC Stamp 1 Serial Adapter Overview: The BASIC Stamp 1 Serial Adapter provides serial port based programming capability from a computer running Windows to a BASIC Stamp 1. The BASIC Stamp 1 microcontroller has been around since the early 1990s and was designed to be programmed from a parallel port on a DOS-based PC. Since then, PC technology has evolved greatly so the BASIC Stamp 1 Serial Adapter was designed to program the BASIC Stamp 1 via a PC’s serial port using the Windows-based BASIC Stamp Editor. One end plugs into a serial cable and the other onto a 3-pin header provided on BASIC Stamp 1 development boards. Key Features: Easy interface between serial ports and the BASIC Stamp 1 Supported by the BASIC Stamp Editor (Windows) Works with the Parallax USB to Serial (RS-232) Adapter (#28030) Provides downloading and debugging capability BASIC Stamp 1 Serial Adapter Details: Male DB9 to male 3-pin header adapter Voltage requirements: Powered by PC serial port (RS-232 powered) Current requirements: n/a Communication: RS-232C to TTL Dimensions: 1.65 x 0.70 x 0.4 in (4.19 x 1.78 x 1.02 cm) Operating temp range: 32 to 158 °F (0 to 70 °C) Note: BASIC Stamp 1 debugging operates in a single direction only (BS1 to PC). Additionally, the BASIC Stamp 1 Serial Adapter cannot be used to transmit and receive serial data via the BASIC Stamp’s SERIN/SEROUT commands.
