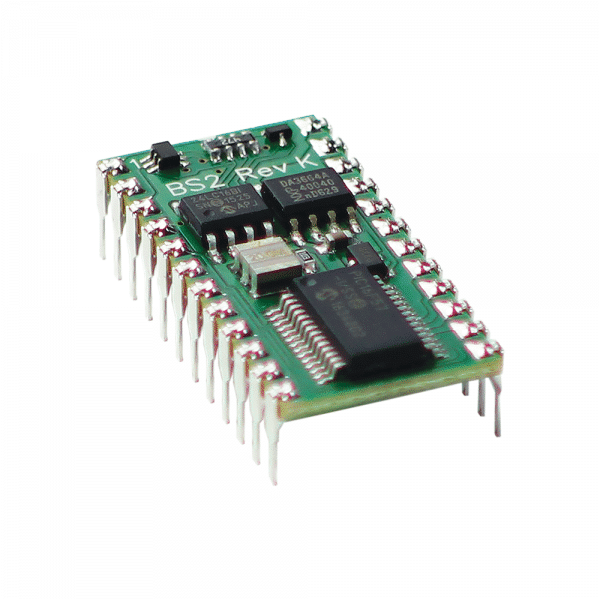

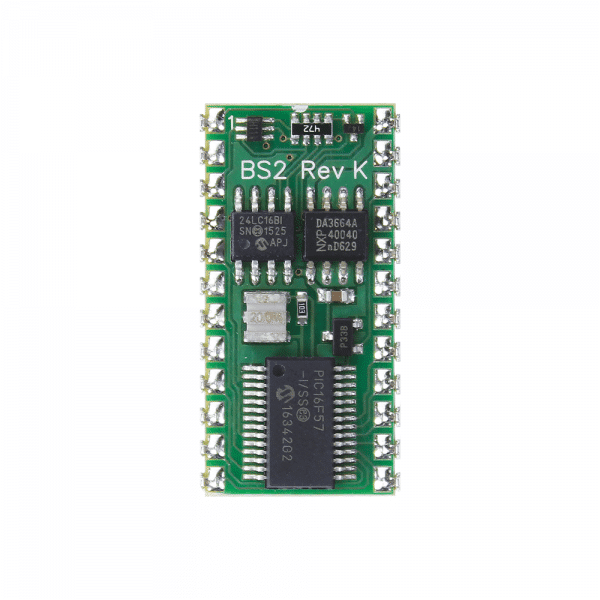

Product Description BASIC Stamp 2 Overview: The BASIC Stamp 2 serves as the brains inside of electronics projects and applications that require a programmable microcontroller. It is able to control and monitor timers, keypads, motors, sensors, switches, relays, lights, and more. Programming is performed in an easy-to-learn language called PBASIC. It’s amazing what you can accomplish with this proven microcontroller and its simple PBASIC 2 language. All vital components (processor, clock source, memory, power regulator) are provided on the BS2’s tiny PCB; just connect power and go! Projects needing small, permanent soldering area for circuitry may benefit from combining the BS2-IC with the Board of Education (#28850) or the Super Carrier Board (#27130). For lower-cost OEM solutions, the processor (PBASIC2 interpreter) and other components are available for integration into your PCB. The BS2-IC is widely used in educational, hobby, and industrial applications and is strongly recommended for first-time BASIC Stamp users because of plentiful resources (documentation, source code, and customer projects) that are available online and in print. For customers that require a more powerful, multi-processing microcontroller, we recommend the Propeller 1 or Propeller 2. Key Features: Small form factor requires very little space Non-volatile memory holds up to 500 instructions even without power PBASIC commands are easy to learn and remember Industrial rated since Rev J PCB assembled, programmed, tested, and completed in Rocklin, California, USA Program with the free BASIC Stamp Editor for Windows (*see below for Chrome & Chromebook) About Chrome & Chromebook Support: Looking for a long-term Chromebook compatible education solution? See the cyber:bot robot and other education kits with micro:bit. The BASIC Stamp programming tool Parallax IDE for Chrome has a limited lifespan. See details here. BASIC Stamp 2 Specifications: Processor Speed: 20 MHz; ~4,000 PBASIC instructions/sec PBASIC Commands: 42 Package: 24-pin DIP I/O pins: 16 2 dedicated serial RAM Size: 32 Bytes (6 I/O, 26 Variable) EEPROM (Program) Size: 2 KBytes; ~500 PBASIC instructions Voltage requirements: 5.5 to 15 VDC (Vin), or 5 VDC (Vdd) Current requirements: 3 mA Run, 50 μA Sleep Source/Sink Current per I/O: 20 mA / 25 mA Source/Sink Current per unit: 40 mA / 50 mA per 8 I/O pins Communication: Serial (9600 baud for programming) Dimensions: 1.20 x 0.63 x 0.15 in (30.0 x 16.0 x 3.81 mm) Operating temp range: -40 to 185 °F (-40 to 85 °C)
