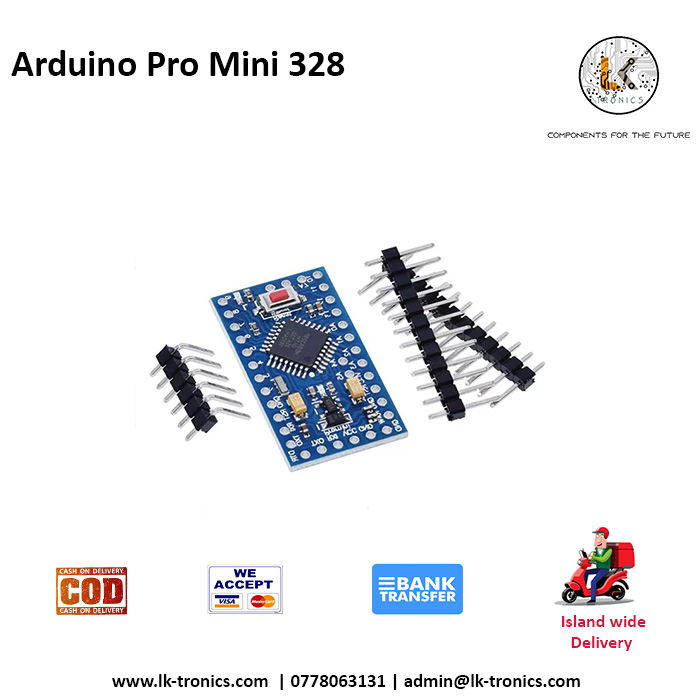

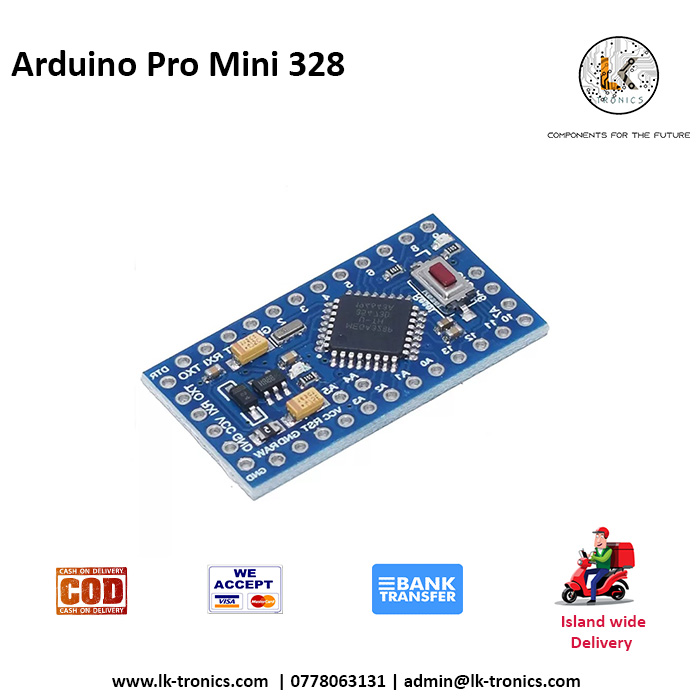

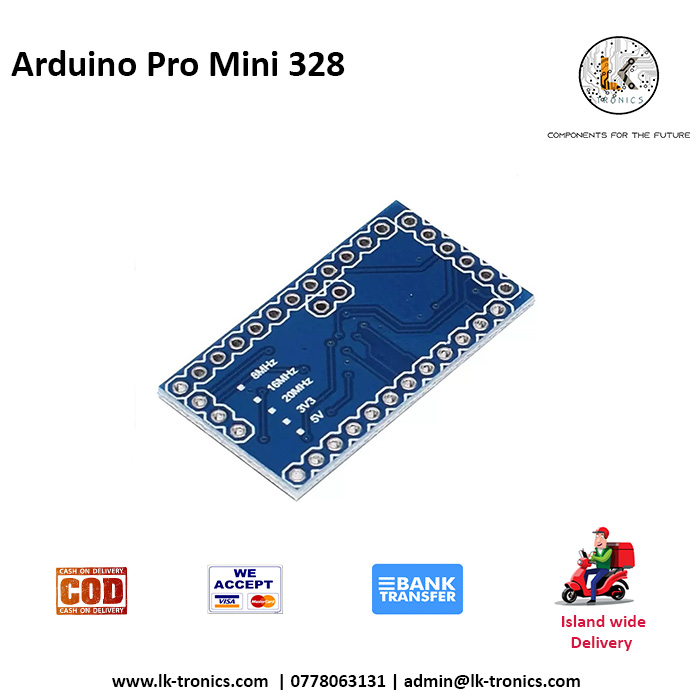

Arduino Pro Mini ATmega328 MicrocontrollerThe Arduino Pro Mini is a microcontroller board based on the ATmega328P.It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board. The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.There are two version of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz.Technical parameters1. 14 digital input/output port RX and TX, D2 ~ D13, 2. 8 analog input port A0 ~ A7 3. 1 to the TTL level a serial port to send and receive port RX/TX 4.6 a PWM port, D3, D5, D6, D9, D10, D11 5. Using Atmel Atmega328P – AU microcontroller 6. Support serial download 7. Support external 3.3 V ~ 12 V dc power supply 8. Support 9 v batteries 9. 16 MHZ clock frequency 10. Size: 33.3 * 33.3 (mm)
