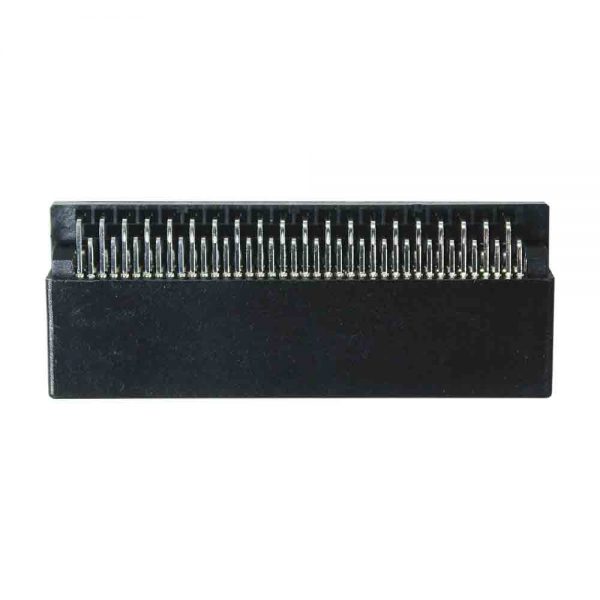

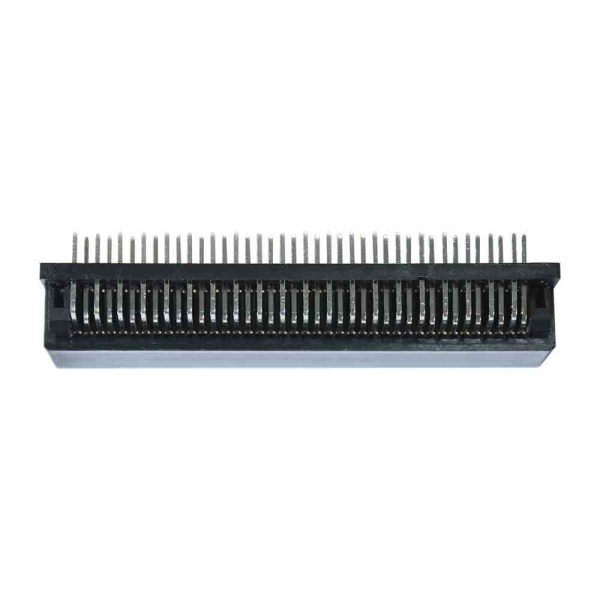

Product Description 80-pin Edge Connector Socket, Right-Angle Overview: This through-hole, 80-way edge socket with 1.27 mm spacing holds the P2 Edge Module (#P2-EC) in a right-angle, parallel to the printed circuit board. This is a low-insertion-force connector which securely holds the P2 Edge Module in place. Alternatively, a vertical version is also available (#450-00310), as well as a surface-mount version (#450-00309). The printed circuit board pattern varies between the two connectors but the socket springs and spacing for the P2 Edge Module are identical. Features: Quick and secure project mounting for the P2 Edge Module Low-cost, quality design for volume applications Socket the P2 Edge Module to allow a lower-cost 2-layer printed circuit board Application: Production component for mass manufacturing 80-pin Edge Connector Socket, Right-Angle Specifications: Current rating: 1 Amp Voltage rating: 250V AC RMS Dielectric withstanding voltage: 500V AC RMS 60 Hz for one minute Contact resistance: 30 milli-ohms max at 1 A DC Insulation resistance: 1000 Mega-ohms min. At 500V DC Temperature range: -55C to 85C Contact: brass, gold flash on contact area, tin plated on solder tails, over nickel RoHS Compliant RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
