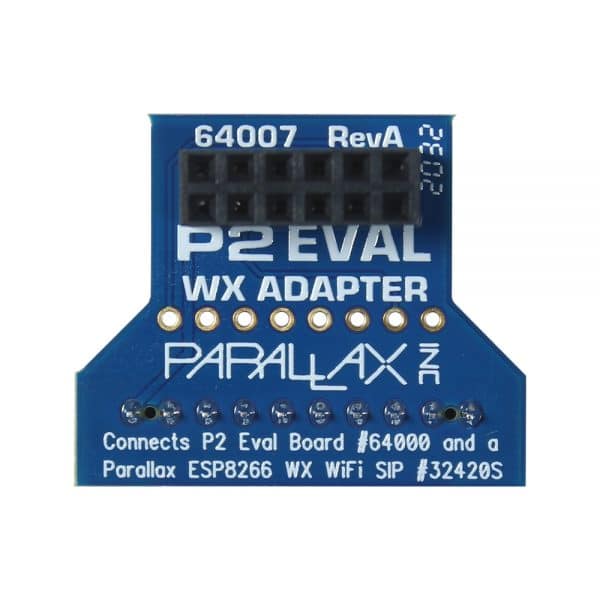

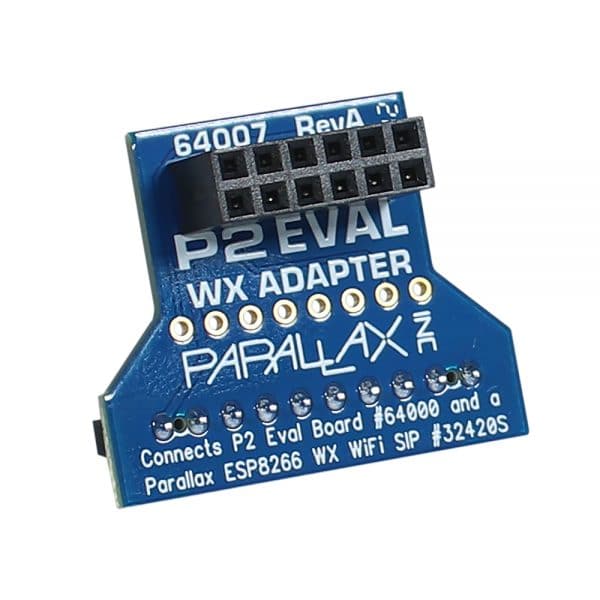

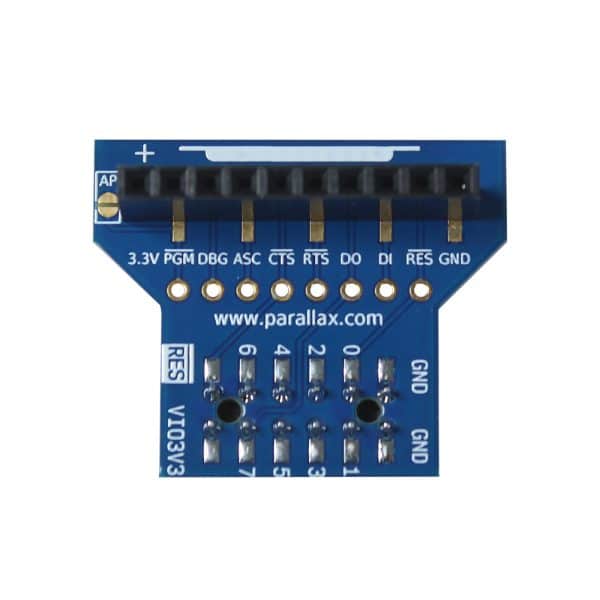

P2 WX Adapter Add-on Board

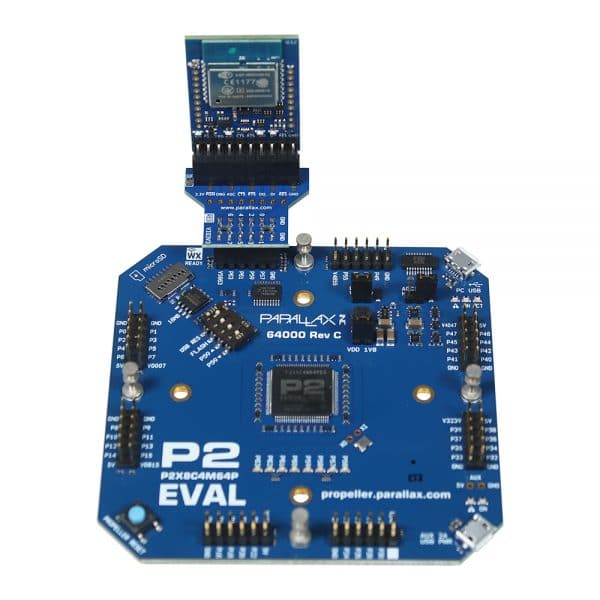

Product Description P2 WX Adapter Add-on Board Overview: The P2 WX Adapter add-on board connects a Parallax WX ESP8266 Wi-Fi Module SIP version (#32420S) to our most popular Propeller 2 development systems for wireless programming and communication. Wireless programming is available via the drag-and-drop P2 Loader on the WX ESP8266 Wi-Fi Module SIP web page, using a binary file from any P2 programming language. A Spin2 Object is available for IoT applications on the P2 Object Exchange. Compatible development systems include the P2 Eval Board Rev C (#64000), and the P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC). Note that when wirelessly programming via the WX module the Prop Plug must be disconnected. Features: Designed for use with Parallax WX ESP8266 Wi-Fi Modules SIP version (#32420S) Low insertion force direct connection for the WX Module to compatible Parallax P2 boards Connect to P57–P63 RES header for P2 programming, or other 2×6 accessory header for serial-over-WiFi Ships completely assembled and tested by Parallax Applications: Wireless Propeller 2 programming for rapid development Multicore remote telemetry systems Custom IoT devices P2 WX Adapter Add-on Board Specifications: Header/socket pin spacing: 0.1 in (2.54 mm) Dimensions: 1.2 x 1.0 in (30.48 x 25.4 mm) Operating temperature: -40 to 185 °F (-40 to 85 °C) Product guide, schematics, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab. PCBs assembled, tested, and completed in Rocklin, California, USA.
