P2 Eval Goertzel Add-on Board

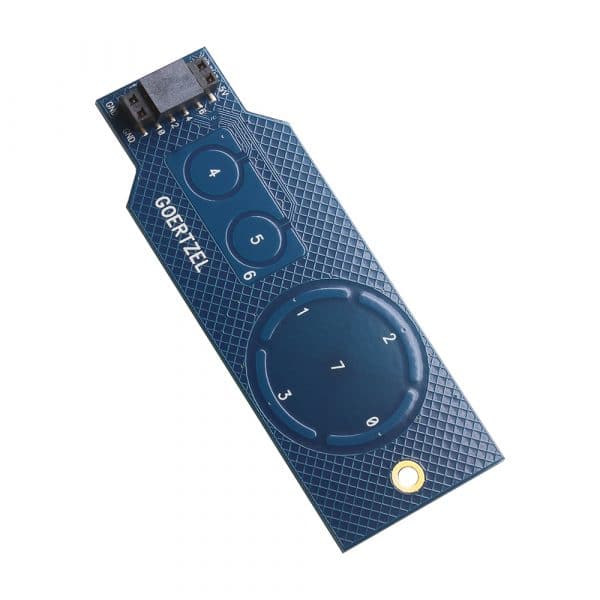

Product Description P2 Eval Goertzel Add-on Board Overview: The P2 Eval Goertzel Add-on Board (Rev B) is a touch switch and non-contact position-sensing human input device for your Propeller 2 multicore microcontroller projects.  Pads 0,1,2,3 and 7 are designed as a set of non-contact Goertzel input pads,  while pads 4, 5 and 6 are typically used as on/off (switch style) inputs. This board features a pass-through socket that stacks on top of a 2×6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed. P2 Eval Goertzel Add-on Board Features: Circular Goertzel non-contact pad array (four directions plus center) Three on-off touch switch pads PCB Dimensions: 3.2 x 1.2 in (8.13 x 3.01 in) See the Product Guide download for I/O pin assignments. Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab. PCBs assembled, tested, and completed in Rocklin, California, USA.
