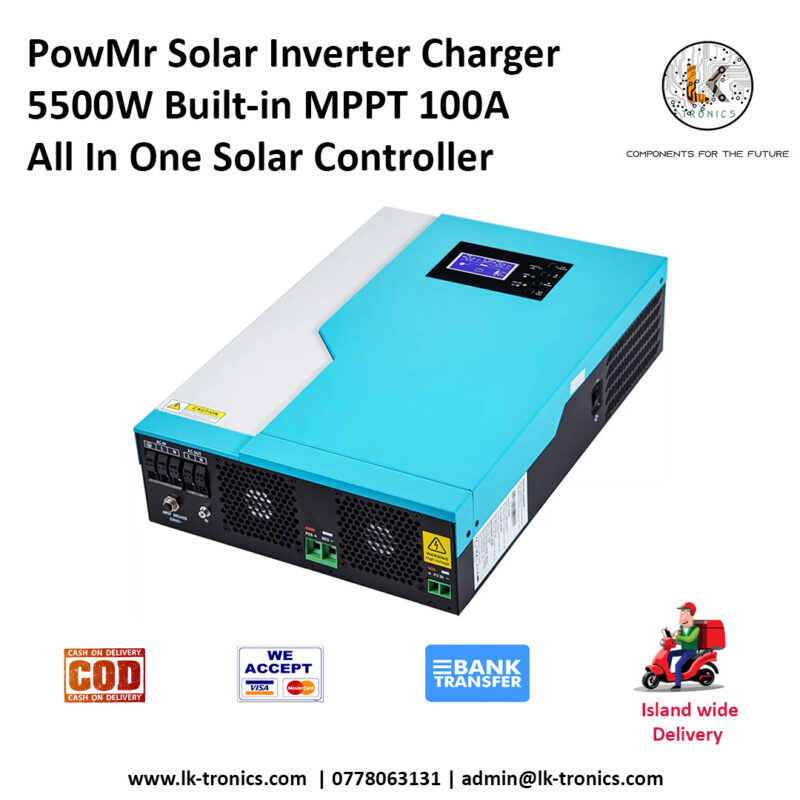

PowMr Solar Inverter Charger 5500W Built-in MPPT 100A All In One Solar Controller MAX PV Input 500V DC Out Put 220VAC 48VDC System 5.5KW Pure Sine Wave hybrid inverter With WiFI (Not Included WIFI Module)INTRODUCTIONThis is a multi-function all in one inverter charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.Features of PowMr Solar Inverter Charger 5500WBrand: PowMrProduct Model: VM PLUS-5.5KW-WIFIPure sine wave inverterInput voltage range for home appliances and personal computers via LCD setting that is configurableBattery charging current based on applications via LCD setting that is configurableAC/Solar Charger priority via LCD setting also that is configurableCompatible to mains voltage or generator powerAuto restart while AC is recoveringThe voltage that starts to connect to the solar panel must be above 150V for the Hybrid inverter to work normallyOverload/ Over temperature/ short circuit protectionSmart battery charger design for optimized battery performanceCold start functionData SheetINVERTER MODEL3.5KW5.5KWInput Voltage WaveformSinusoidal (utility or generator)Nominal Input Voltage230VacLow Loss Voltage170Vac±7V (UPS); 90Vac±7V (Appliances)Low Loss Return Voltage180Vac±7V (UPS); 100Vac±7V (Appliances)High Loss Voltage280Vac±7VHigh Loss Return Voltage270Vac±7VMax AC Input Voltage300VacNominal Input Frequency50Hz/ 60Hz (Auto detection)Low Loss Frequency40±1HzLow Loss Return Frequency42±1HzHigh Loss Frequency65±1HzHigh Loss Return Frequency63±1HzOutput Short Circuit ProtectionCircuit BreakerEfficiency (Line Mode)>95% (Rated R load, battery full charged )Transfer Time10ms typical (UPS); 20ms typical (Appliances)INVERTER MODEL3.5KW5.5KWRated Output Power3.5KW5.5KWOutput Voltage WaveformPure Sine WaveOutput Voltage Regulation230Vac±5%Output Frequency50HzPeak Efficiency93%Overload Protection5s@>150% load; 10s@110%-150% loadSurge Capacity2* rated power for 5 secondsNominal DC Input Voltage24Vdc48VdcCold Start Voltage23.0Vdc46.0VdcLow DC Warning Voltage@ load < 50#.0Vdc46.0Vdc@ load > 50".0Vdc44.0VdcLow DC Warning Return Voltage@ load < 50#.5Vdc47.0Vdc@ load > 50#.0Vdc46.0VdcLow DC Cut-ofF Voltage@ load < 50!.5Vdc43.0Vdc@ load > 50!.0Vdc42.0VdcHigh DC Recovery Voltage32Vdc62VdcHigh DC Cut-ofF Voltage33Vdc63VdcNo Load Power Consumption<35WUtility Charging ModeINVERTER MODEL3.5KW5.5KWCharging Algorithm3-StepAC Charging Current (Max)80Amp (@Vi/p=230Vac)60Amp (@Vi/p=230Vac)Floating Charging Voltage27Vdc54VdcMPPT Solar Charging ModeINVERTER MODEL3.5KW5.5KWMax. PV Array Power5000W5500WNominal PV Voltage240Vdc240VdcPV Array MPPT Voltage Range120-450Vdc120-450VdcMax. PV Array Open Circuit Voltage500Vdc500VdcMax Charging Current (AC charger plus solar charger)100Amp80AmpINVERTER MODEL3.5KW5.5KWSafety CertificationCEOperating Temperature Range-10°C to 50°CStorage temperature-15°C- 60°CHumidity5% to 95% Relative Humidity (Non-condensing)Dimension (D*W*H), mm100 x 300 x 440Net Weight, kg9.59.7User manual – PowMr-VM-PLUS-manualKeep Following us on our Facebook Page SKU: VM PLUS-5.5KW-WIFI Categories: Offgrid Inverters, Solar Accesories Tags: 5.5w, 5500w inverter, PowMr, PowMr Solar Inverter Charger 5500W Built-in MPPT, POWMR Srilanka, Srilanka Distribution agent.
