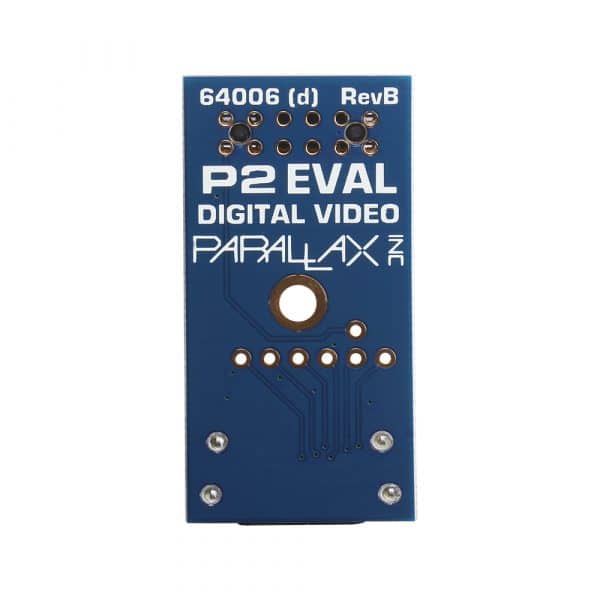

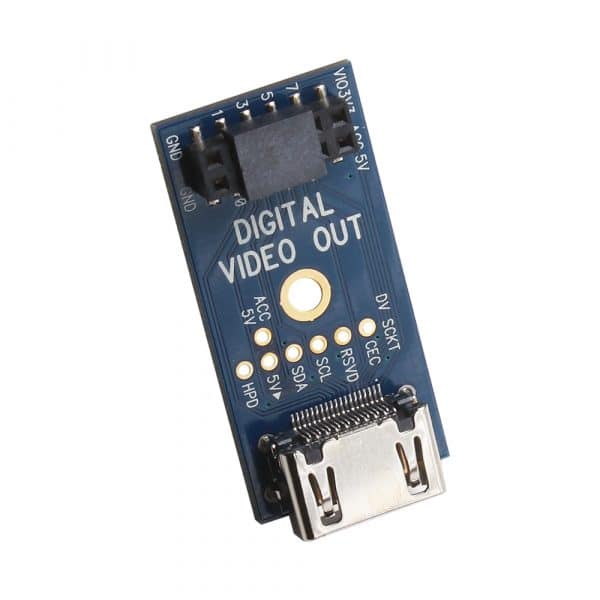

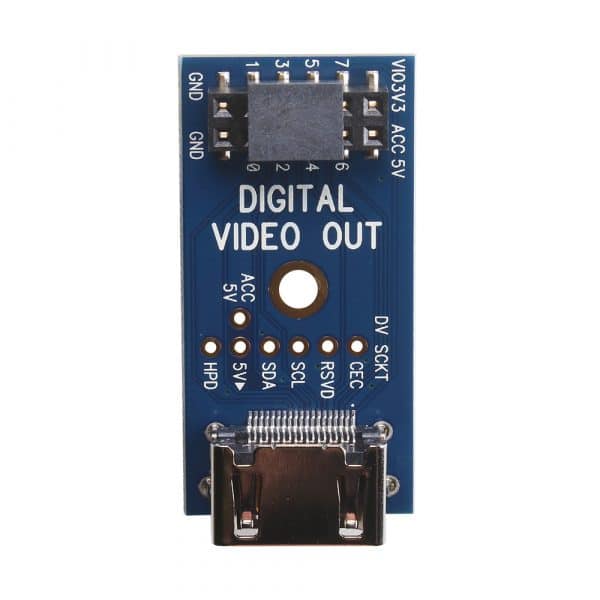

Product Description P2 Eval Digital Video Out Add-on Board Overview: The P2 Eval Digital Video Out Add-on Board provides an HDMI-type connector which can be used for experimenting with various video standards in your Propeller 2 multicore microcontroller projects. This board features a pass-through socket that stacks on top of a 2×6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed. Unused signal pins from the video connector are labelled on the PCB next to an unpopulated 0.1” pitch row of 6 pads: CEC, RSVD, SCL, SDA, 5V▶, HPD. Beside the 5V▶ output pad is another pad labelled “ACC 5V”. That is the 5V supply from the accessory socket. Some video monitors require a 5V signal connecting to the 5V▶ pin, so these two pads with 0.1” spacing make that convenient. For example, a 0.1” pitch header could be soldered here, and a shunt plug used when 5V is required to the monitor. P2 Eval Digital Video Out Add-on Board Features: HDMI connector Direct connection to CLK-, CLK , D0-, D0 , D1-, D1 , D2-, D2 Plated thru-holes for accessing 6 unused video connector pins Plated thru-hole for accessing the 5V supply from the accessory socket Center mounting hole PCB Dimensions: 1.6 x 0.8 in (4.1 x 2 cm) See the Product Guide download for I/O pin assignments. Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab. PCBs assembled, tested, and completed in Rocklin, California.
