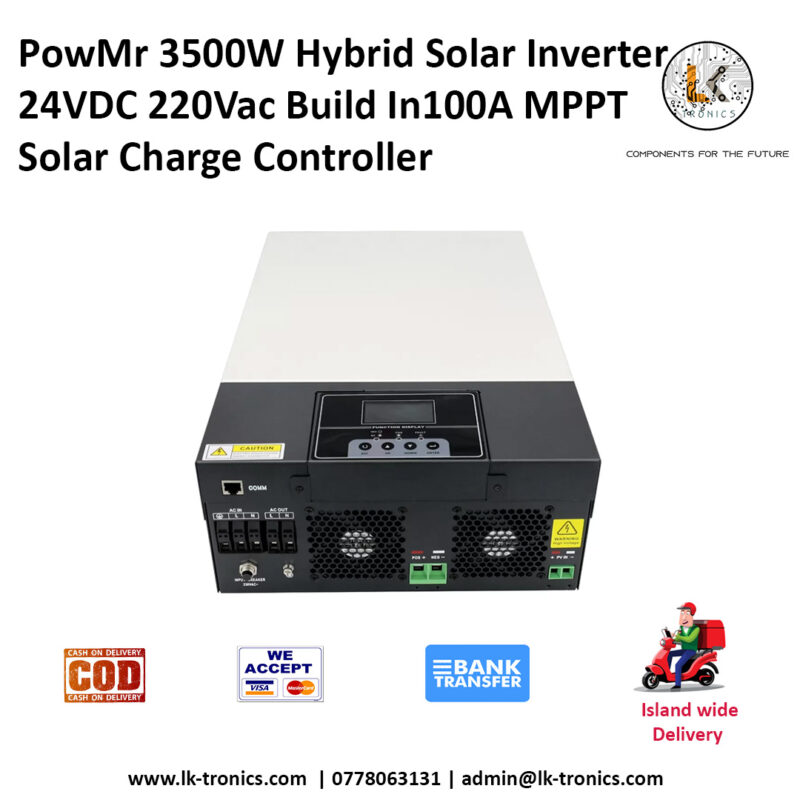

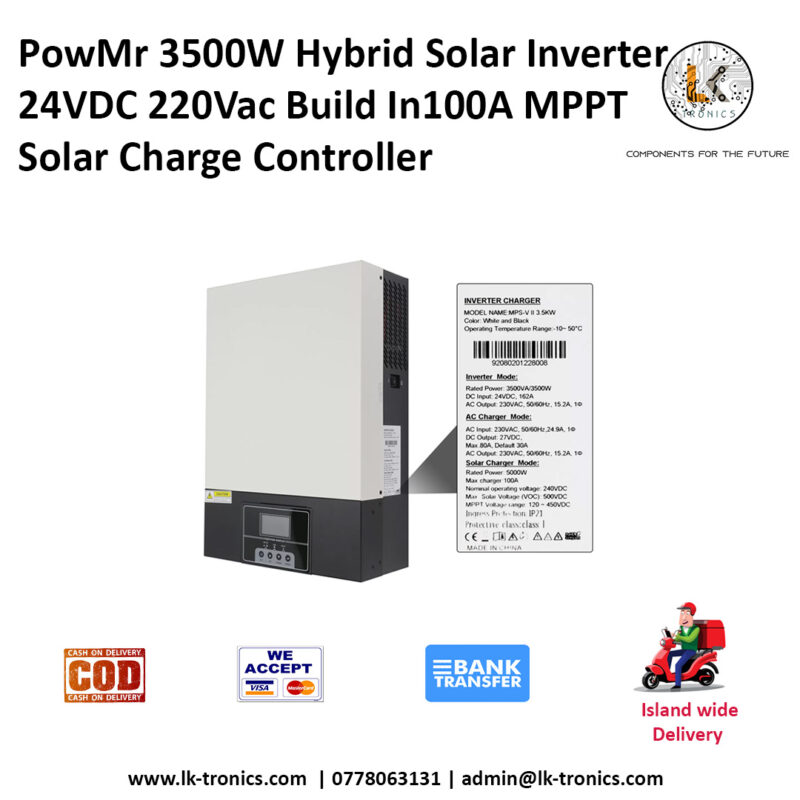

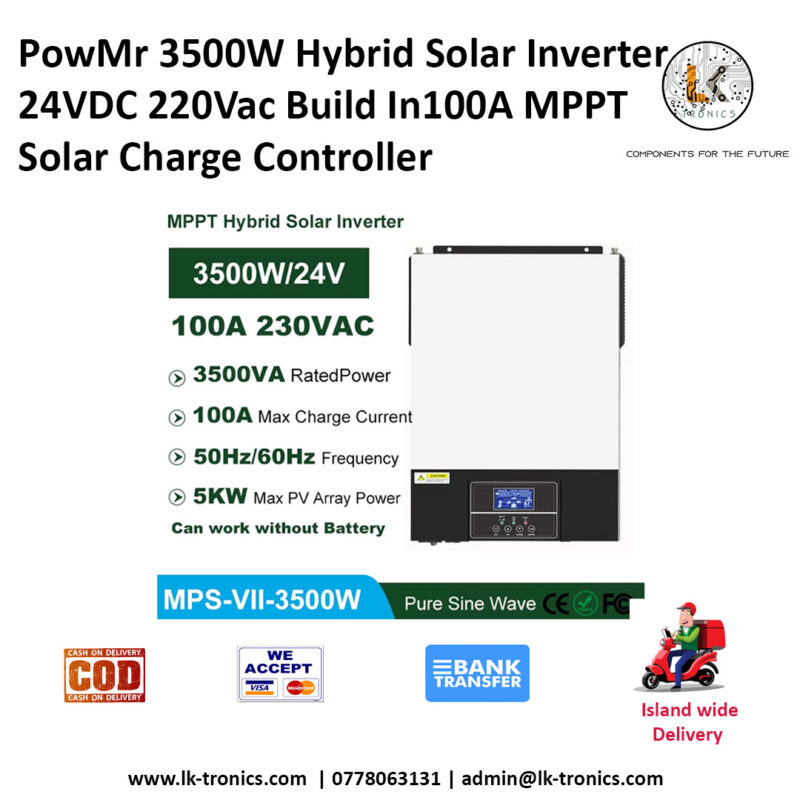

PowMr 3500W Hybrid Solar Inverter 24VDC 220Vac Build In 100A MPPT Solar Charge Controller Pure Sine Wave Invertor Can Work No Battery

PowMr 3500W Hybrid Solar Inverter 24VDC 220Vac Build In100A MPPT Solar Charge Controller Pure Sine Wave Invertor Can Work No BatteryOverview:This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.Quick DetailsPlace of Origin:Guangdong, ChinaBrand Name:PowMrModel Number:MPS-VII-3500W-24VInput Voltage:3.5KW-24VDCOutput Voltage:230VACOutput Current:80A-100AOutput Frequency:50/60HzOutput Type:SingleSize:10*30*44cmType:DC/AC Inverters, Hybrid inverter with batteryInverter Efficiency:>95�rtificate:CEWarranty:2 yearsWeight:13kgApplication:Solar Power SystemPV charge current:100ANormal input voltage:3.5KW-24VDC; 5.5KW-48VDCRated power:3.5KW 5.5KWMax PV input:120V-450VMax AC input voltage:500VacSurge Power:11000VAFeature:inversor hibridoPower Consumption:2WFeatures:1. Pure sine wave inverter2. Configurable input voltage range for home appliances and personal computers via LCD setting3. Configurable battery charging current based on applications via LCD setting4. Configurable AC/Solar Charger priority via LCD setting5. Compatible with mains voltage or generator power6. Auto restart while AC is recovering7.Overload/ Over temperature/ short circuit protection8. Smart battery charger design for optimized battery performance9. Cold start function10. Communicate with RS-232(WIFI/GPRS Optional)11. Configurable AC/PV Output usage timer and prioritization12. Two Years WarrantyBasic System Architecture:The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system: Generator or Utility.PV modules. Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances, such as tube light fans, refrigerators, and air conditioners.Please read the specification carefully before installSpecification ModelMPS-VII-3500W-24VMPS-VII-5000W-48VRated Power3500VA/3500W5500VA/5500WInputVoltage230VAC230VACFrequency Range50Hz/60Hz(Auto sensing)OutputAC Voltage Regulation(Batt.Mode)230VAC±5>#/p###Output Voltage WaveformPure Sine WaveTransfer Time10ms(For Personal Computers);  20ms(For Home AppliancesBattery & AC ChargerBattery Voltage24VDC48VDCFloating Charge Voltage27VDC54VDCOvercharge Protection33VDC63VDCMaximum Charge Current100A100ASolar ChargerMaximum PV Array Power5000W6000WMPPT Range @ Operating Voltage120~450VDCMaximum PV Array Open Circuit Voltage500VDCMaximum Charging Current100A100AMaximum Efficiency98%PhysicalDimension,D*W*H(mm)138*302*440Net Weight(kgs)11.512.5Communication InterfaceUSB/RS232/GPRS/WIFIOperating EnvironmentHumidity5% to 95% Relative Humidity(Noncondensing)Operating Temperature-10℃~50℃Storage Temperature-15℃~60℃   SKU: LKSOL00009 Category: Offgrid Inverters Tags: 100AH, 24VDC, 3.5KW, Hybrid Solar Inverter, MPPT Solar Charge Controller, PowMr, PowMr 3500W, POWMR Srilanka, Pure Sine Wave Invertor, Srilanka Distribution agent.
