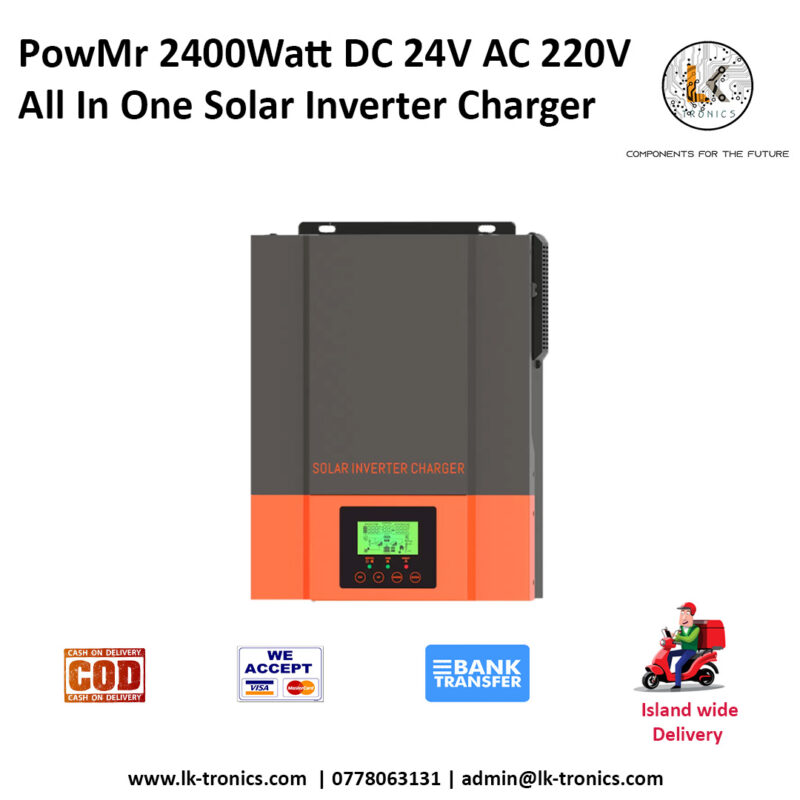

PowMr 2400Watt DC 24V AC 220V All In One Solar Inverter Charger POW-HVM2.4H-24V

owMr 2400Watt DC 24V AC 220V All In One Solar Inverter Charger POW-HVM2.4H-24VINTRODUCTIONThis is a multi-function all in one inverter charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.FeaturesPure sine wave 24V inverterConfigurable input voltage range for home appliances and personal computers via LCD settingConfigurable battery charging current based on applications via LCD settingConfigurable AC/Solar Charger priority via LCD settingCompatible with mains voltage or generator powerAuto restart AC is recoveringOverload/ Over temperature/ short circuit protectionSmart battery charger design for optimized battery performanceCold start functionWIFI/GPRS(Option)Can connect to lithium battery Data SheetINVERTER MODEL1.5KW 12V2.4KW 24VInput Voltage WaveformSinusoidal (utility or generator)Nominal Input Voltage230VacLow Loss Voltage170Vac±7V (UPS)； 90Vac±7V (Appliances)Low Loss Return Voltage180Vac±7V (UPS);100Vac±7V (Appliances)High Loss Voltage280Vac±7VHigh Loss Return Voltage270Vac±7VMax AC Input Voltage300VacNominal Input Frequency50Hz/ 60Hz (Auto-detection)Low Loss Frequency40±lHzLow Loss Return Frequency42±lHzHigh Loss Frequency65±lHzHigh Loss Return Frequency63±lHzOutput Short Circuit ProtectionCircuit BreakerEfficiency (Line Mode)>95% ( Rated R load, battery full charged )Transfer Time10ms typical (UPS);20ms typical (Appliances)INVERTER MODEL1.5KW 12V2.4KW 24VRated Output Power1.5KW2.4KWOutput Voltage WaveformPure Sine WaveOutput Voltage Regulation230Vac±5%Output Frequency50HzPeak Efficiency91%Overload Protection5s@ >150% Io ad; 10s@ 110% ~ 150% Io adSurge Capacity2* rated power for 5 secondsNominal DC Input Voltage12Vdc24VdcCold Start Voltage11.5Vdc23.0VdcLow DC Warning Voltage11.0Vdc22.0Vdc@ Io ad < 50>.5Vdc21.0Vdc@ load >50%Low DC Warning Return Voltage11.5Vdc22.5Vdc@ load < 50.0Vdc22.0Vdc@ load >50%Low DC Cut off Voltage10.2Vdc20.5Vdc@ load < 50%9.6Vdc20.0Vdc@ load >50%High DC Recovery Voltage14.0Vdc32VdcHigh DC Cut-off Voltage16.0Vdc33VdcNo Load Power Consumption<25W<30WUtility Charging ModeINVERTER MODEL1.5KW 12V2.4KW 24VCharging Algorithm3-StepAC Charging Current (Max)60 AmpBulk Charging VoltageFlooded Battery14.629.2AGM / Gel Battery14.128.2Floating Charging Voltage13.5Vdc27.0VdcMPPT Solar Charging ModeINVERTER MODEL1.5KW 12V2.4KW 24VMax. PV Array Power2000W3000WNominal PV Voltage240Vdc240VdcPV Array MPPT Voltage Range90~430Vdc90~430VdcMax. PV Array Open Circuit Voltage450Vdc450VdcMax Charging Current (AC charger plus solar charger)80Amp80AmpINVERTER MODEL1.5KW 12V2.4KW 24VSafety CertificationCEOperating Temperature Range-10°Cto50°CStorage temperature-15°C~ 60° CHumidity5% to 95% Relative Humidity (Non-condensing)Dimension (D*W* H), mm348X270X95Net Weight, kg45VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKSOL00012 Category: Offgrid Inverters Tags: PowMr, PowMr 2400Watt DC 24V AC 220V, POWMR Srilanka, Pre order, Srilanka Distribution agent.
