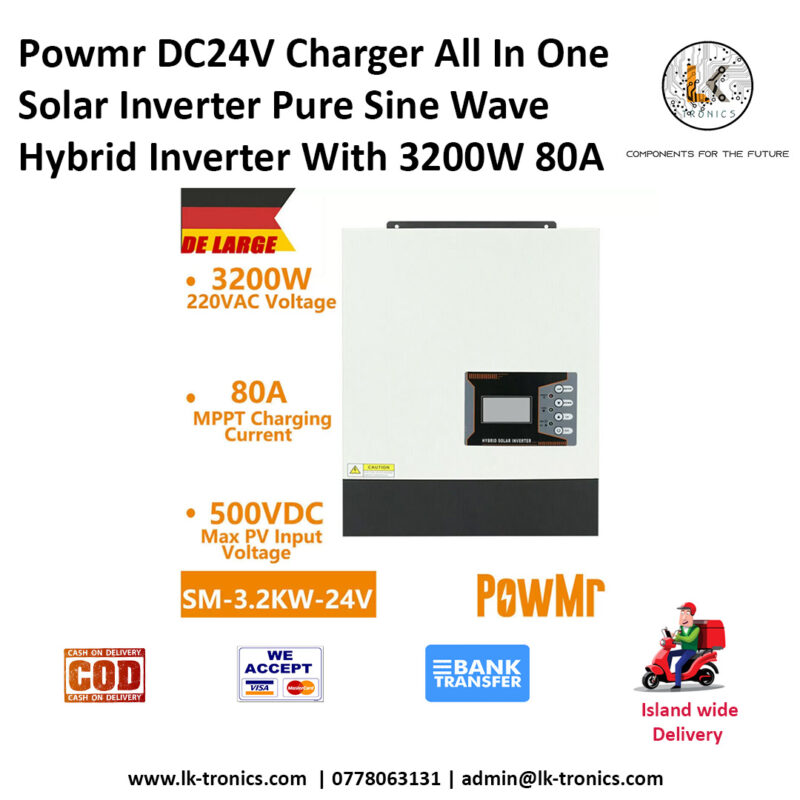

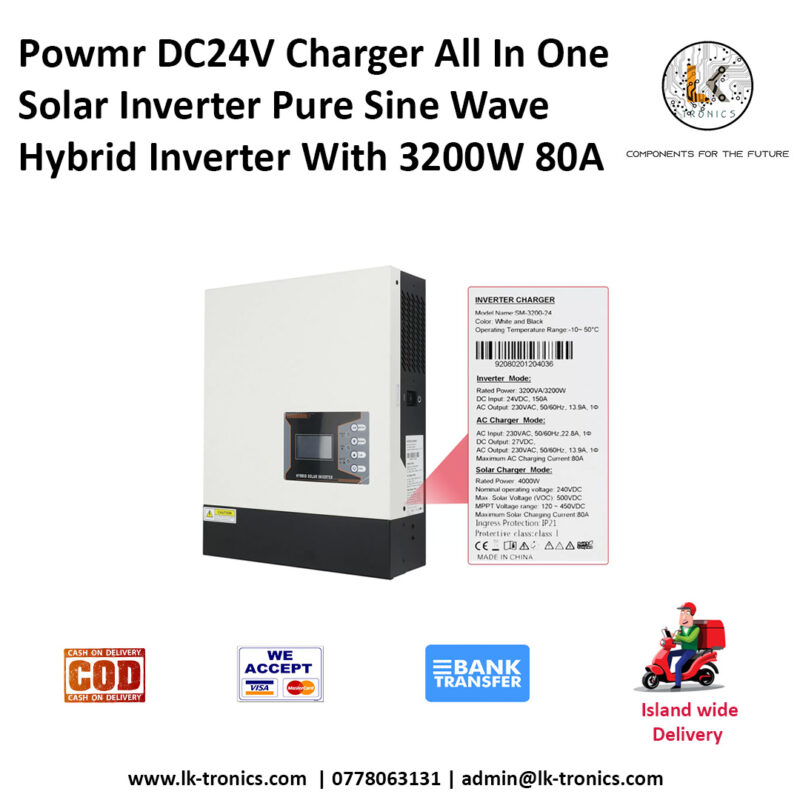

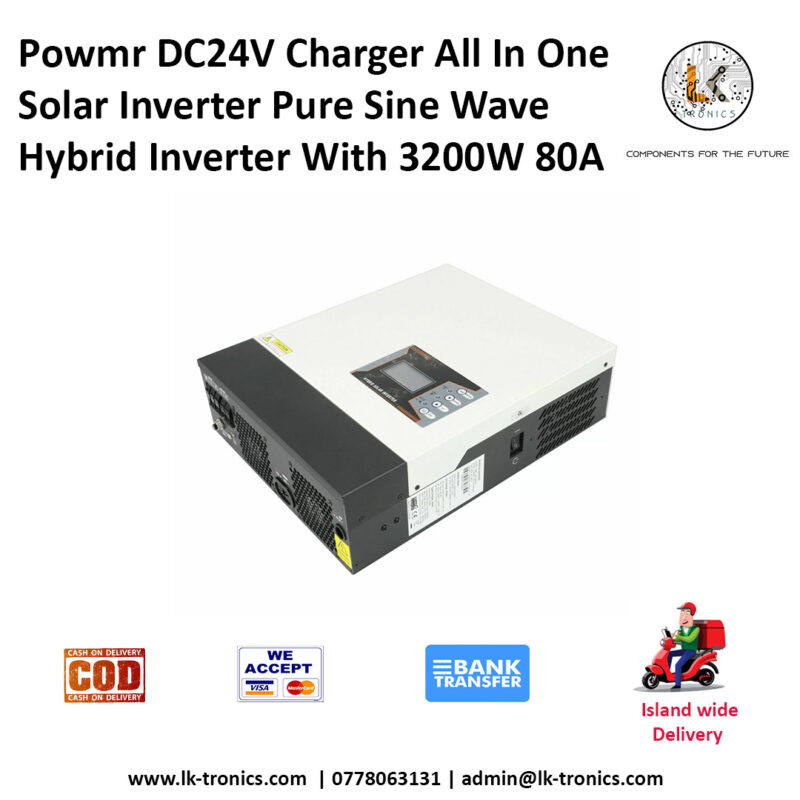

Powmr DC24V Charger All In One Solar Inverter Pure Sine Wave Hybrid Inverter With 3200W 80A Charger

Powmr DC24V Charger All In One Solar Inverter Pure Sine Wave Hybrid Inverter With 3200W 80A ChargerDC24V Charger Item specifics:Condition: newBrand: PowMrSystem configuration: Hybrid InverterInverter technology: HybridApplication: home/gardenCharge mode: MPPT (Maximum Power Point Tracking)Particularities: LCD screen, LED displayProduct Type: charger/inverterVoltage: DC24V ChargerModel: SM-3.2KW-24Vpower source: SolarColor: blackWattage: 3200WPower: 3200Wcurrent type: universalcurrent output: MPPT 80AResistance properties: dustproofRated current: 80AProtective properties: Overvoltage protectionRecommended environment: InsideUnit of measurement: unitMaximum input voltage: 500VEAN: Does not applyDC24V Charger INITIATION:This is a multi-function inverter/charger that combines the functions of all in one inverter, solar charger, and battery charger to provide an uninterruptible power supply with portable size. Its comprehensive LCD display provides user-configurable and easy-to-use button operation such as battery AC current, AQsdar charge priority, and acceptable input voltage based on different applications.Features:●Pure sine wave inverter ●Configurable input voltage range for home appliances and PC via LCD setting ●Configurable battery charging current based on applications via LCD setting ●Configurable AC/Solar Charger priority via LCD setting ●Compatible with mains voltage or generator power ●Auto restart while AC is recovering ●Overload/overtemperature/short circuit protection ●Intelligent battery charger design for optimized battery performance ●Cold start function ●WIFI/GPRS (option) ●Can be connected to a lithium batteryDC24V Charger SPECIFICATIONS: Table 1 Line mode specificationsINVERTER MODEL3.2KW24V/3.2KW48V5.2KW48VInput Voltage WaveformSinusoidal (utilily or generator)Nominal Input Voltage230VacLow Loss Voltage170Vac£7V (UPS)； 90Vac±7V (Appliances)Low Loss Return Voltage180Vac±7V (UPS);100Vac±7V (Appliances)High Loss Voltage280Vac±7VHigh Loss Return Voltage270Vac±7VMax AC Input Voltage300VacNominal Input Frequency50Hz/ 60Hz (Auto-detection)Low Loss Frequency40±1HzLow Loss Return Frequency42±1HzHigh Loss Frequency65±1HzHigh Loss Return Frequency63±1HzOutput Short Circuit ProtectionCircuit BreakerEfficiency (Line Mode)>95% ( Rated R load, battery full charged )Transfer Time10ms typical (UPS);20ms typical (Appliances) DC24V Charger Table 2 Inverter mode specificationsINVERTER MODEL3.2KW24V3.2 KW 48V5.2KW48VRated Output Power3.2KW3.2KW5KWOutput Voltage WaveformPure Sine WaveOutput Voltage Regulation230Vacd5%Output Frequency50HzPeak Efficiency93%Overload Protection5s@ >150% Io ad; 10s@ 110% 〜150% Io adSurge Capacity2* rated power for 5 secondsNominal DC Input Voltage24Vdc48VdcCold Start Voltage23.0Vdc46.0VdcLow DC Warning Voltage@ Ioad < 50%@ load >50".0Vdc21.0Vdc44.0Vdc42.0VdcLow DC Warning Return Voltage@ load < 50%@ load >50".5Vdc22.0Vdc45.0Vdc44.0VdcLow DC Cut-off Voltage@ load < 50%@ load >50 .5Vdc20.0Vdc41.0Vdc40.0VdcHigh DC Recovery Voltage32Vdc62VdcHigh DC Cut off Voltage33Vdc63VdcNo Load Power Consumption<25W<35W Table 3 Load mode specificationsUtility Charging ModeINVERTER MODEL3.2KW24V3.2KW 48V5.2KW48VCharging Algorithm3-StepAC Charging Current (Max)80Amp(@VI/P=230Vac)60Amp(@VI/P=230Vac)80Amp(@VI/P=230Vac)Bulk Charging VoltageFlooded Battery29.258.4AGM / Gel Battery28.256.4Floating Charging Voltage27Vdc54VdcCharging CurveMPPT Solar Charging ModeINVERTER MODEL3.2KW 24V3.2KW 48V5.2 KW 48VMax. PV Array Power4000W5000WNominal PV Voltage240VdcPV Array MPPT Voltage Range120~450VdcMax. PV Array Open Circuit Voltage500VdcMax Charging Current (AC charger plus solar charger)80Amp60Amp80Amp DC24V Charger Table 4 General specificationsINVERTER MODEL3.2KW24V3.2KW48V5.2KW48VSafety CertificationCEOperating Temperature Range-10°Cto50°CStorage temperature-15°C~ 60° CHumidity5% to 95% Relative Humidity (Non-condensing)Dimension (D*W*H), mm383X333X104Net Weight, kg8.08.5 SKU: LKSOL00031 Category: Offgrid Inverters Tags: DC24V, PowMr, powMr in sri lanka, Pre order
